15. Surface Mount Socketing System (SurfMate)

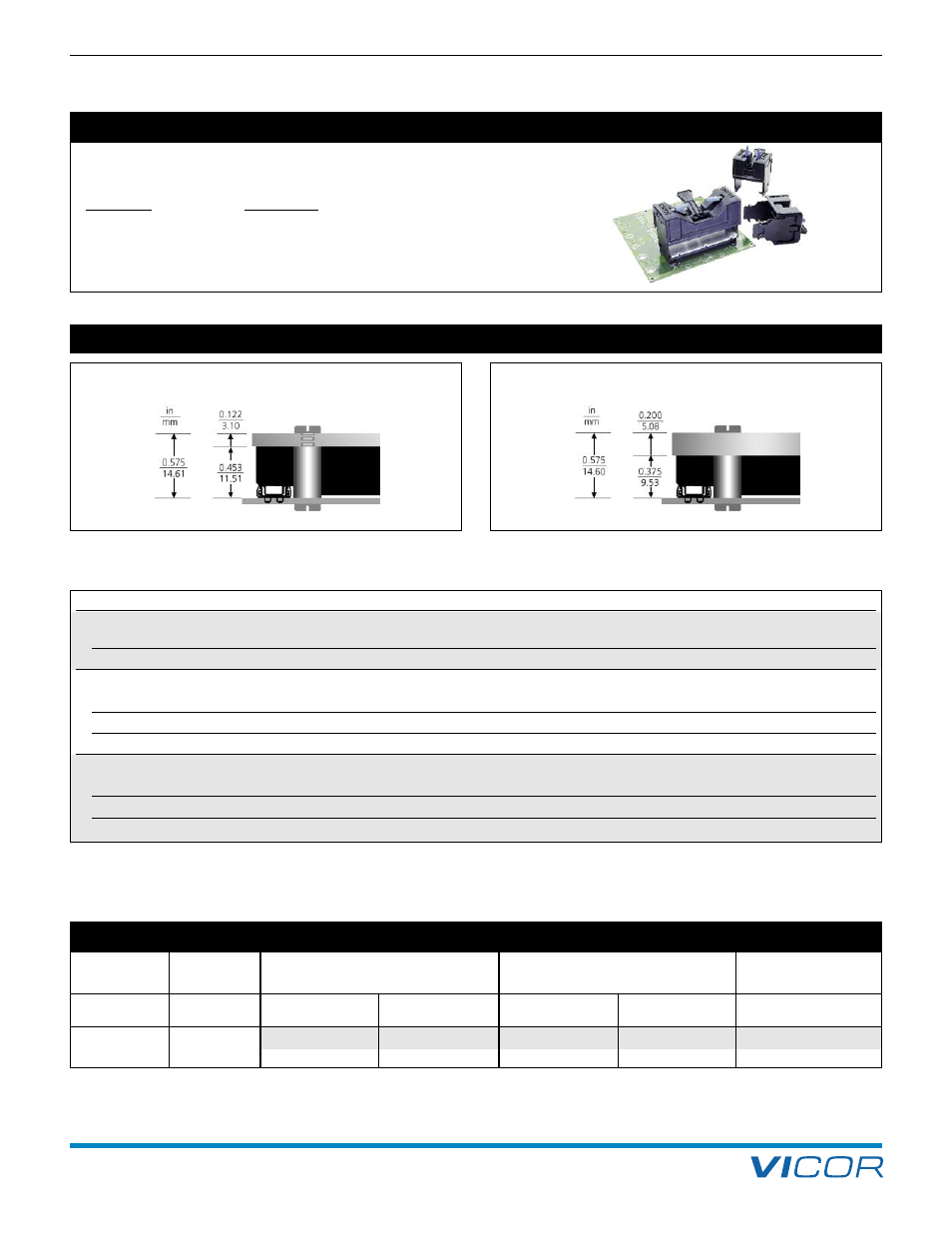

Figure 15–3 — Slotted baseplate; Height above board with standoff Figure 15–4 — Though-hole or threaded baseplate; Height above
board with standoff
Heat Sinks Module Kit # 100 Piece Kit
Slotted Baseplate
Through-hole 20178 20188
Threaded 20179 20189
Through-hole Baseplate
Through-hole 20176 20186
Threaded 20177 20187
No heat sink 20184 20186
Threaded Baseplate
Through-hole 20176 20186
Threaded N/A N/A
No heat sink 20184 20186
Standoff Kits for SurfMate Mounted Modules
Table 15–4 — Standoff kits for SurfMate mounted modules: Part numbering and packaging; Module kits contain enough standoffs and
screws for one module. 100 piece kits contain standoffs only.
* Kits include six (6) standoffs and screws. Mini and Micro modules require a minimum of four (4) standoffs.
Bags of one hundred (100) do not include screws; #4-40 thread hardware required.
Standoff Kits for SurfMate Mounted Modules*
Board Mounting Slotted Through-Hole Threaded
Thickness Options Baseplate Baseplate Baseplate
Nom. Mounting Through-Hole Threaded Through-Hole Threaded Through-Hole
(Min/Max) Style Heat Sink Heat Sink Heat Sink Heat Sink Heat Sink
All
Surface
Kit-20178 Kit-20179 Kit-20176 Kit-20177 Kit-20176
Mount Bag-20188 Bag-20189 Bag-20186 Bag-20187 Bag-20186
Used in facilitating the proper extraction of modules from InMate or SurfMate sockets.
Removal without using the Exchange Tool may cause damage to the sockets.
Description Part Number
Maxi Exchange Tool 22827
Mini Exchange Tool 22828
Micro Exchange Tool 22829
22827
22829
22828
Module Exchange Tool
