15. Surface Mount Socketing System (SurfMate)
module removal, Vicor highly recommends the use of our
Module Exchange Tool in order to ensure that the sockets
are not damaged during the module removal process. Removing the module at an angle should be avoided as
this can damage the sockets.

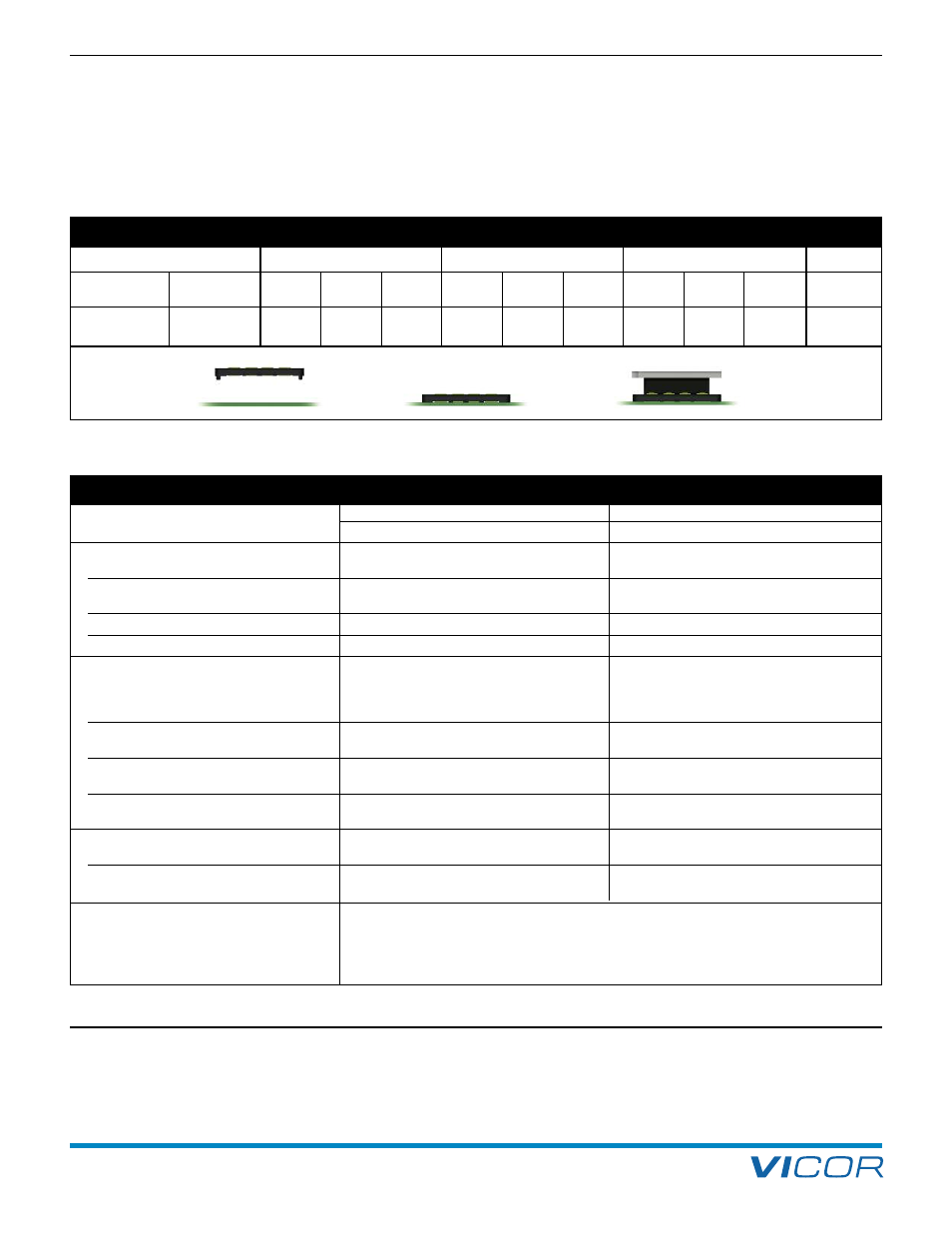

Table 15–1 — SurfMate Specifications and Materials
Parameter Specification Value Reference
Compatibility F Short RoHS pins
Module pin style S Short ModuMate pins
Mechanical
Contact normal force 100 grams EOL min. GR-1217-CORE, R5-23
Number of mating cycles 5 max.
(Note 4) Exception to GR-1217-CORE
which specifies 25 mating cycle
Module engagement force 32 lbs per connector set max. GR-1217-CORE, R5-31,32
Module disengagement force 32 lbs per connector set max. GR-1217-CORE, R5-31,32
Electrical
Current rating 50 A Maxi (Note 1) , Mini; 25 A Micro Gold plating standards, and accepted
(Based on 248°F (120°C) max. socket temp. industry standards such as
& 86°F (30°C) max temperature rise of contact) IICIT, EIA, Bellcore guidelines
Low level contact resistance
400 µ
Ω max.
GR-1217-CORE, 6.2.1
0.080" (2,03 mm) dia socket (LLCR)
Low level contact resistance
300 µ
Ω max.
GR-1217-CORE, 6.2.1
0.150" (3,81 mm) dia socket (LLCR)
Low level contact resistance
200 µ
Ω max.
GR-1217-CORE, 6.2.1
0.180" (4,57 mm) dia sockets (LLCR)
Thermal
248°F (120°C) max.
Max continuous use
Max socket temperature temperature for gold plating
Temperature rise 86°F (30°C) max.
GR-1217-CORE (Note 2)
EIA-364-70A (Note 3)
Environmental SurfMate products are tested in random vibration environments to best simulate the broad
Shock and vibration spectrum of frequencies and amplitudes that may be encountered in typical applications.
Actual system resonant frequencies will depend on PCB construction and mounting details.
For critical, or unusual, shock and vibration environments, the performance of the system
should be independently verified.
1. 2. 3.
SurfMate: Surface Mount Sockets
Full Brick (Maxi) Half Brick (Mini) Quarter Brick (Micro)
Board Mounting
Input Output 5 Sets Input Output 5 Sets Input Output 5 Sets
Pin
Thickness Style Style
All
Surface
22100 22101 16017 22100 22102 16021 22103 22104 16025 S, F
mount
(Note1) For 80 A operation with Maxi, contact Applications Engineering.
(Note2) GR-1217-CORE issue 1, November 1995 Generic requirements for
separable electrical connectors used in telecommunications
hardware. A module of NEBSFR, FR-2063
(Note3) ANSI/EIA-364 American National Standards Institute / Electronic
Industries Association (Electronic Components, Assemblies &
Materials Association)
(Note4) The module and socket must be replaced after 5 mating cycles.
