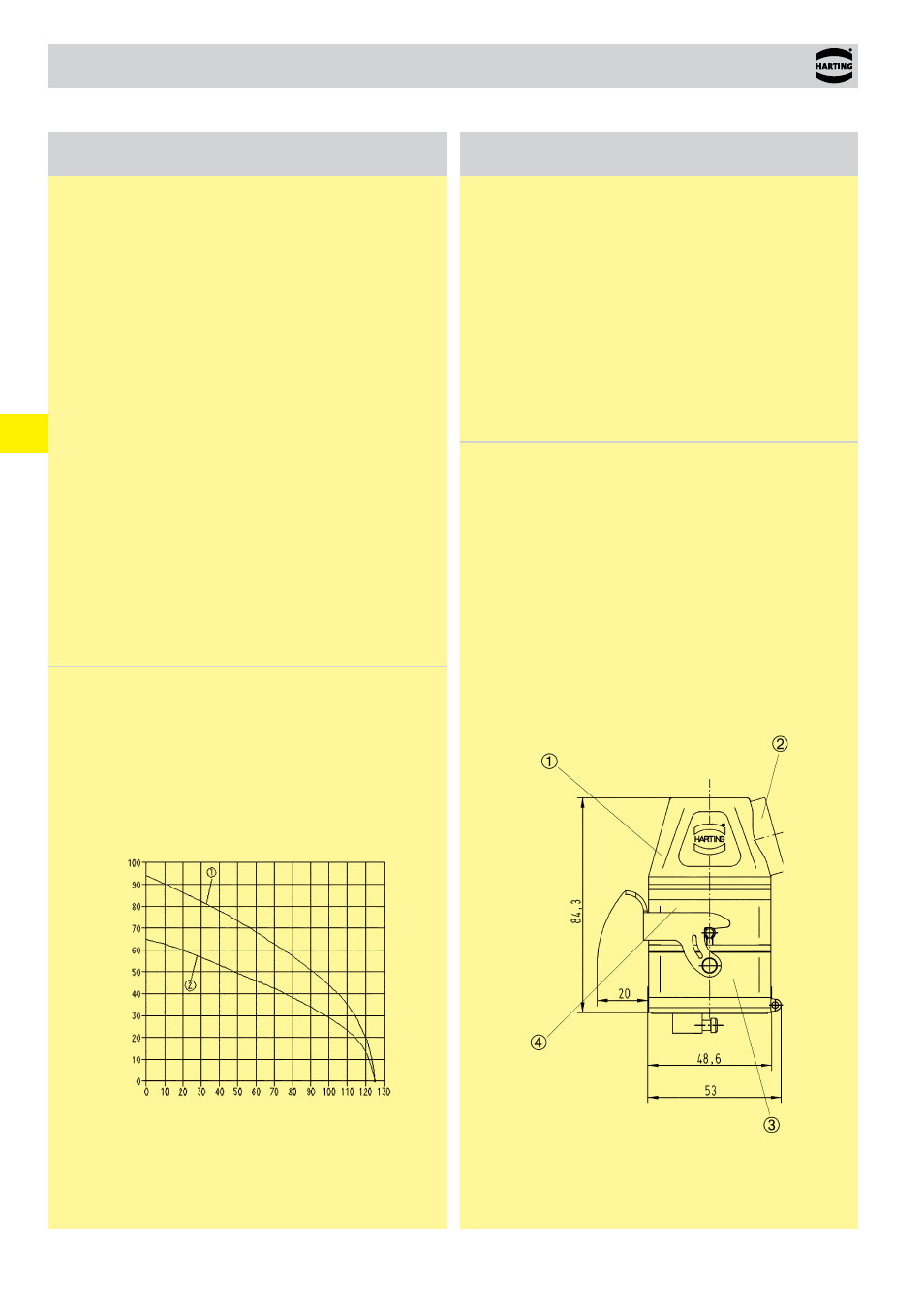

background image

06

.

08

Han

Modular

Han-Modular

®

Compact

Features

• Compact design saves space

• Modular structure increases flexibility

• Simple and quick assembly

• Robust design

• Two part grommet housing

Current carrying capacity

The current carrying capacity of the connectors is limited by the

thermal load capability of the contact element material including

the connections and the insulating parts. The derating curve

is therefore valid for currents which flow constantly (non-inter-

mittent) through each contact element of the connector evenly,

without exceeding the allowed maximum temperature.

Measuring and testing techniques according to

DIN EN 60 512-5-2

Operating current

Ambient temperature

➀ Han

®

40 A Axial module, wire gauge: 10 mm²

➁ Han

®

C module, wire gauge: 6 mm²

Technical characteristics

Hoods/Housings

Material

zinc die-cast

Surface

nickel plated

Locking element

stainless steel

Hoods/Housings sealing

NBR

Limiting temperatures

-40 °C ... +125 °C

Degree of protection acc. to DIN EN 60 529

for coupled connector

IP 65

Mechanical working life

- mating cycles

500

PE contact

wire gauge

10 mm² / AWG 8

Stripping length

10 mm

Tightening tourque

1 Nm

Protection covers for housings, bulkhead mounting

Material Polyamide

Locking element

Polyamide

Hoods/Housings sealing

NBR

Limiting temperatures

-40 °C ... +125 °C

Degree of protection acc. to DIN EN 60 529

for coupled connector

IP 65

Flammability acc. to UL 94

V 0

➀ Hood with side entry

➁ Thread M25

➂ Bulkhead mounted housing with locking lever

➃ Carrier hood
