Han
Modular
Han ® HV module
Features
• Suitable for Han E ® crimp contacts
• 2 contacts up to 5000 V
• Insulator out of a voltage resistant teflon material
• Combination of all other modules (pneumatic,
signal etc.)

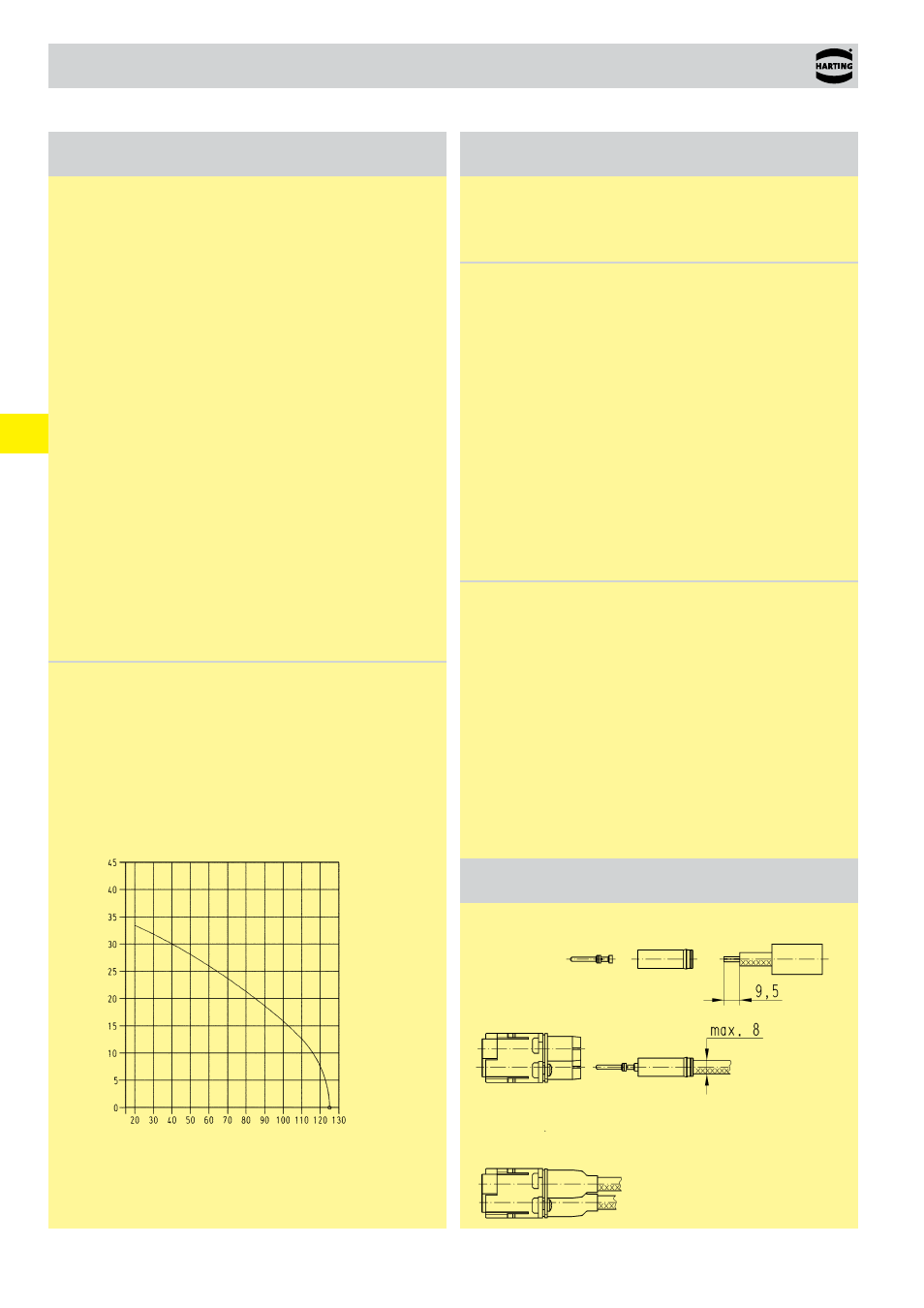

Current carrying capacity
The current carrying capacity of the connectors is limited by the
thermal load capability of the contact element material including
the connections and the insulating parts. The derating curve
is therefore valid for currents which flow constantly (non-inter-
mittent) through each contact element of the connector evenly,
without exceeding the allowed maximum temperature.
Measuring and testing techniques according to
DIN EN 60 512-5-2
Operating current
Ambient temperature
➀ Housing Han ® 16 B with 1 Han ® HV module, wire gauge:
2.5 mm²
Technical characteristics
Specifications DIN EN 61 984
DIN VDE 0115
DIN EN 60 664-1
Inserts
Number of contacts 2
Electrical data
acc. to EN 61 984
16 A 2900/5000 V 15 kV 3
Rated current 16 A
Rated voltage conductor - ground 2900 V
Rated voltage conductor - conductor 5000 V
Rated impulse voltage 15 kV
Pollution degree 3
Insulation resistance ≥ 10 10 Ω
Material polycarbonate/Teflon (PTFE)
Limiting temperatures -40 °C ... +125 °C
Flammability acc. to UL 94 V 0
Mechanical working life
- mating cycles ≥ 500
Contacts
Material copper alloy
Surface
- hard-silver plated 3 µm Ag
- hard-gold plated 2 µm Au over 3 µm Ni
Contact resistance ≤ 1 mΩ
Crimp terminal
- mm² 0.5 ... 4 mm²
- AWG 20 ... 12
Assembly instructions
Han E ®
Crimp contact
Locking
sleeve Cable
Crimp with BUCHANAN crimping tool
"https://b2b.harting.com/ebusiness/en/
09 99 000 0001
" Snap crimped cable in the insert
shrink the heat shrink tube over the
rear of contact
