06
.
76
Han
Modular
Han
®
DDD module
Features
• Suitable for Han D
®
crimp contacts
• High contact density

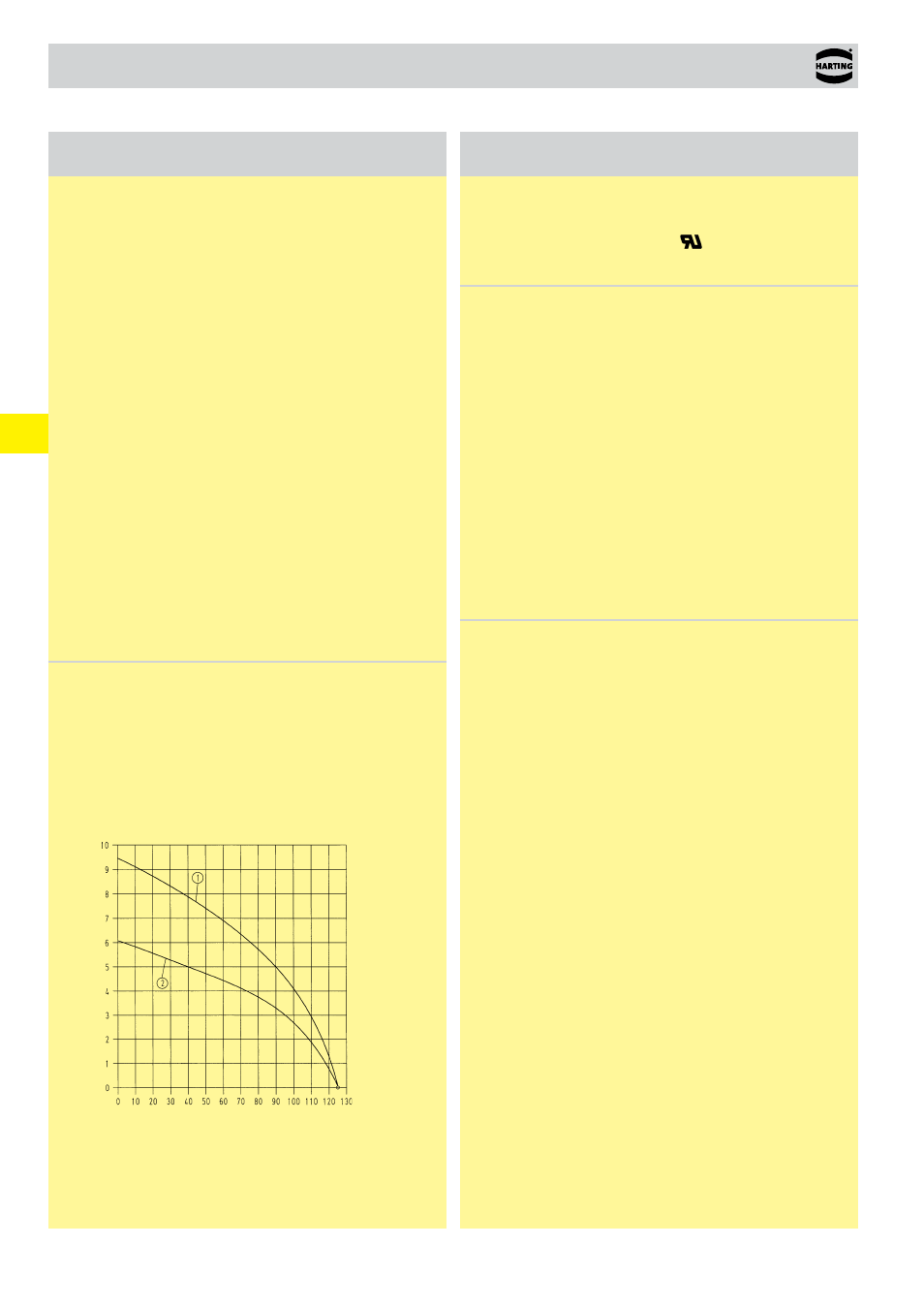

Current carrying capacity
The current carrying capacity of the connectors is limited by the
thermal load capability of the contact element material including
the connections and the insulating parts. The derating curve
is therefore valid for currents which flow constantly (non-inter-
mittent) through each contact element of the connector evenly,
without exceeding the allowed maximum temperature.
Measuring and testing techniques according to
DIN EN 60 512-5-2
Operating current
Ambient temperature
➀ 24 B hoods/housings with 6 modules; wire gauge: 1.5 mm²
➁ 24 B hoods/housings with 6 modules; wire gauge: 1.0 mm²
Technical characteristics
Specifications
DIN EN 60 664-1
DIN EN 61 984
Approvals
Inserts
Number of contacts
17
Electrical data
acc. to EN 61 984
10 A 160 V 2.5 kV 3
Rated current
10 A
Rated voltage
160 V
Rated impulse voltage
2.5 kV
Pollution degree
3
Rated voltage
acc. to UL
250 V
Insulation resistance
≥ 10
10
Ω
Material
polycarbonate
Limiting temperatures
-40 °C ... +125 °C
Flammability acc. to UL 94
V 0
Mechanical working life
- mating cycles
≥ 500
Contacts
Material
copper alloy
Surface
- hard-silver plated
3 µm Ag
- hard-gold plated
2 µm Au over 3 µm Ni
Contact resistance
≤ 3 mΩ
Crimp terminal
- mm²
0.14 ... 2.5 mm²
- AWG
26 ... 14
