06

.

24

Han

Modular

Han

®

200 A Axial module

Features

• Axial-screw termination

• No special tools required

• Power module for big wire gauge up to 70 mm²

• Suitable as a 3 + PE connector in a Han

®

32 B

housing

Compatible to the Han

®

200 A module with crimp

terminal

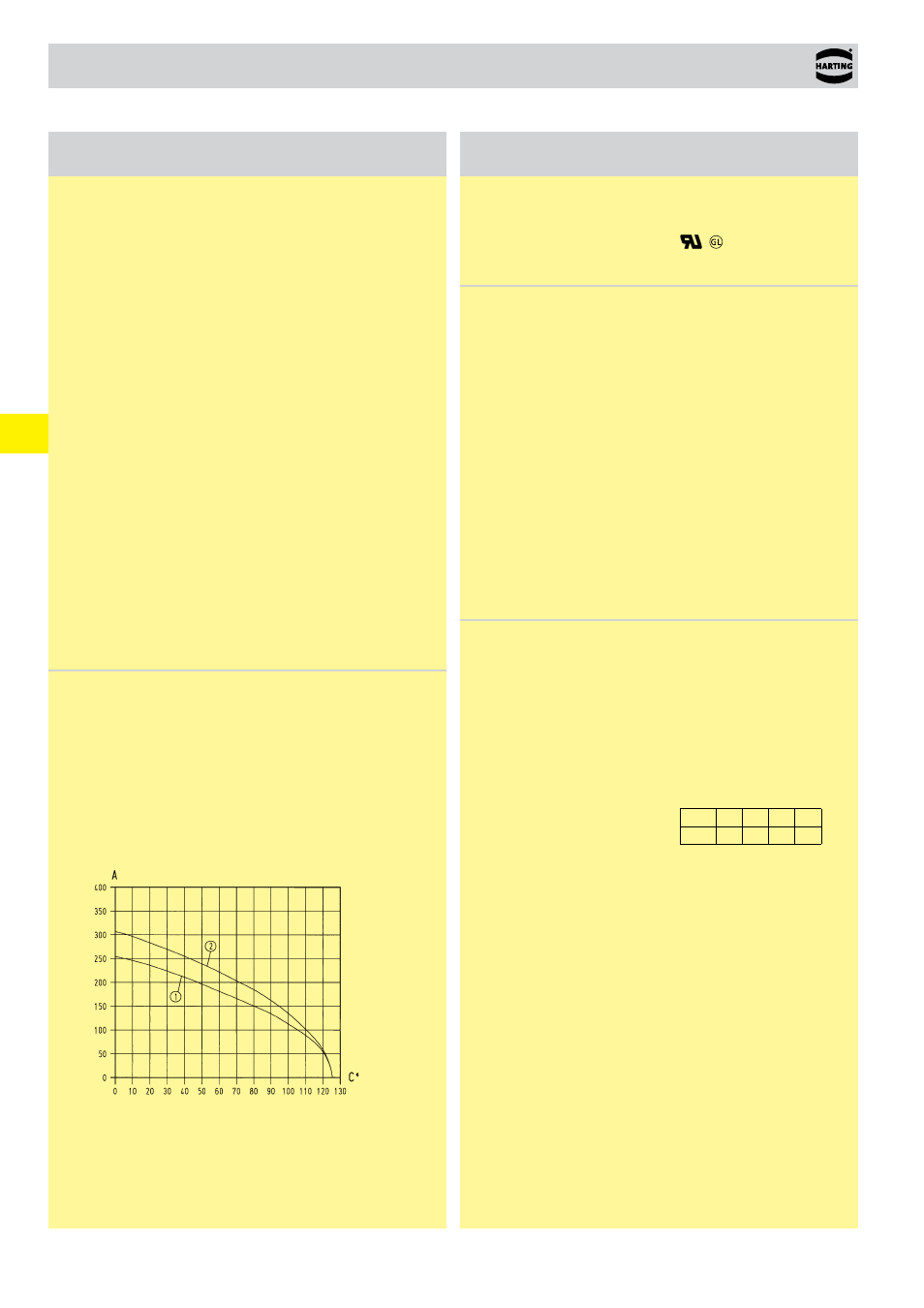

Current carrying capacity

The current carrying capacity of the connectors is limited by the

thermal load capability of the contact element material including

the connections and the insulating parts. The derating curve

is therefore valid for currents which flow constantly (non-inter-

mittent) through each contact element of the connector evenly,

without exceeding the allowed maximum temperature.

Measuring and testing techniques according to

DIN EN 60 512-5-2

Operating current

Ambient temperature

➀ 24 B hoods/housings with 3 modules; wire gauge: 50 mm²
➁ 24 B hoods/housings with 3 modules; wire gauge: 70 mm²

Technical characteristics

Specifications

DIN EN 60 664-1

DIN EN 61 984

Approvals

,

Inserts

Number of contacts

1

Electrical data

acc. to EN 61 984

200 A 1000 V 8 kV 3

Rated current

200 A

Rated voltage

1000 V

Rated impulse voltage

8 kV

Pollution degree

3

Rated voltage

acc. to UL

600 V

Insulation resistance

≥ 10

10

Ω

Material

polycarbonate

Limiting temperatures

-40 °C ... +125 °C

Flammability acc. to UL 94

V 0

Mechanical working life

- mating cycles

≥ 500

Contacts

Material

copper alloy

Surface

- hard-silver plated

3 µm Ag

Contact resistance

0.2 mΩ

Screw terminal

- Wire gauge

1)

25 ... 70 mm²

- AWG

2 ... 00

- Hexagonal driver

SW 5

- Stripping length

16 mm

- Tightening tourque

mm² 25 35 50 70

Nm

8

8

9 10

1) geometric wire gauge
