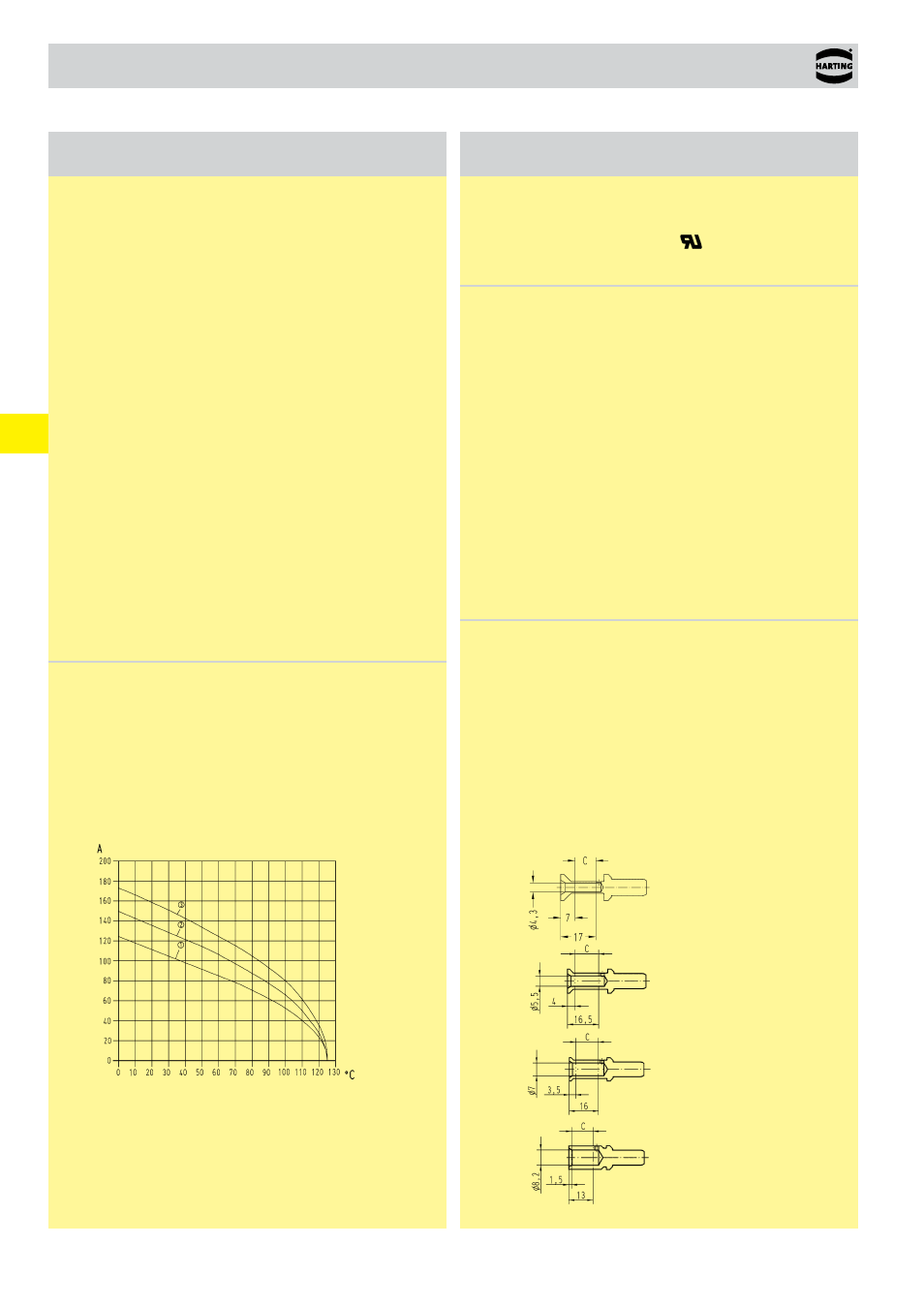

background image

06

.

30

Han

Modular

"https://b2b.harting.com/ebusiness/en/

09 11 000 6114

"

"https://b2b.harting.com/ebusiness/en/

09 11 000 6116

"

"https://b2b.harting.com/ebusiness/en/

09 11 000 6125

"

"https://b2b.harting.com/ebusiness/en/

09 11 000 6135

"

Han

®

100 A Crimp module

Features

• Crimp termination

• Unlock of contacts from mating side

• Connect PE contact with special cable shoe

• Compatible to Han

®

100 A module with axial

screw terminal

Current carrying capacity

The current carrying capacity of the connectors is limited by the

thermal load capability of the contact element material including

the connections and the insulating parts. The derating curve

is therefore valid for currents which flow constantly (non-inter-

mittent) through each contact element of the connector evenly,

without exceeding the allowed maximum temperature.

Measuring and testing techniques according to

DIN EN 60 512-5-2

Operating current

Ambient temperature

➀ 24 B hoods/housings with 3 modules; wire gauge: 16 mm²
➁ 24 B hoods/housings with 3 modules; wire gauge: 25 mm²
➂ 24 B hoods/housings with 3 modules; wire gauge: 35 mm²

Technical characteristics

Specifications

DIN EN 60 664-1

DIN EN 61 984

Approvals

Inserts

Number of contacts

2

Electrical data

acc. to EN 61 984

100 A 1000 V 8 kV 3

Rated current

100 A

Rated voltage

1000 V

Rated impulse voltage

8 kV

Pollution degree

3

Rated voltage

acc. to UL

600 V

Insulation resistance

≥ 10

10

Ω

Material

polycarbonate

Limiting temperatures

-40 °C ... +125 °C

Flammability acc. to UL 94

V 0

Mechanical working life

- mating cycles

≥ 500

Contacts

Material

copper alloy

Surface

- hard-silver plated

3 µm Ag

Contact resistance

≤ 0.3 mΩ

Crimp terminal

- mm²

10 ... 35 mm²

Max. cable diameter

14 mm

Crimp zone (C)
