High Density module

Features

• Suitable for D-Sub crimp contacts

• High contact density

• Using of guiding pins (male and female) is

recommended (see chapter 95).

Current carrying capacity

The current carrying capacity of the connectors is limited by the

thermal load capability of the contact element material including

the connections and the insulating parts. The derating curve

is therefore valid for currents which flow constantly (non-inter-

mittent) through each contact element of the connector evenly,

without exceeding the allowed maximum temperature.

Measuring and testing techniques according to

DIN EN 60 512-5-2

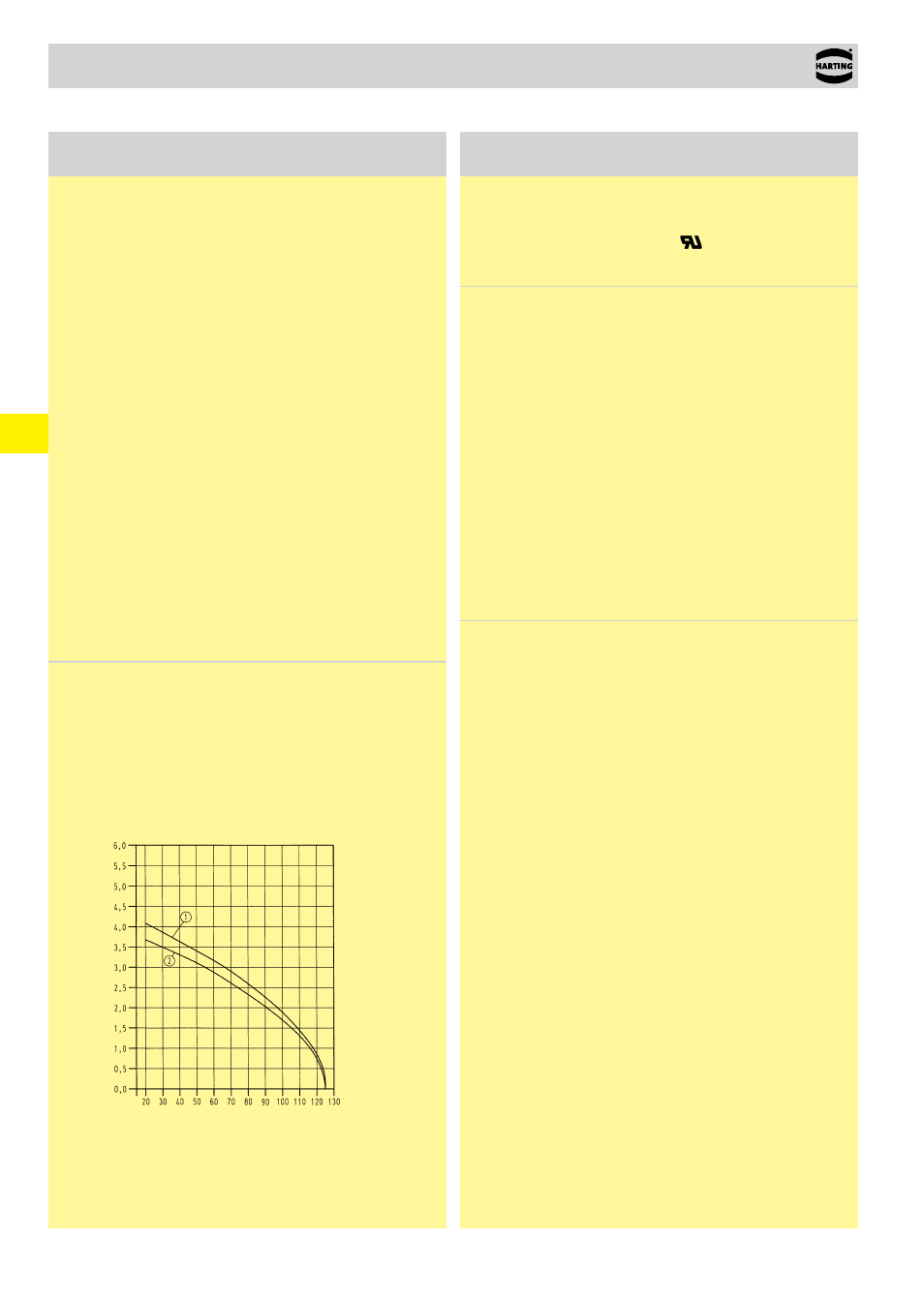

Operating current

Ambient temperature

➀ 24 B hoods/housings with 6 modules; wire gauge: 0.5 mm²

turned contacts
➁ 24 B hoods/housings with 6 modules; wire gauge: 0.5 mm²

stamped contacts

Technical characteristics

Specifications

DIN EN 60 664-1

DIN EN 61 984

Approvals

Inserts

Number of contacts

25

Electrical data

acc. to EN 61 984

4 A 50 V 0.8 kV 3

Rated current

4 A

Rated voltage

50 V

Rated impulse voltage

0.8 kV

Pollution degree

3

Rated voltage

acc. to UL

< 30 V

Insulation resistance

≥ 10

10

Ω

Material

polycarbonate

Limiting temperatures

-40 °C ... +125 °C

Flammability acc. to UL 94

V 0

Mechanical working life

- mating cycles

≥ 500

Contacts

Crimp terminal

- mm²

0.08 ... 0.52 mm²

- AWG

28 ... 20

turned contacts

Performance level 1

as per CECC 75 301-802,

500 mating cycles,

10 days 4 mixed gas test -

IEC 60 512
