06

.

104

Han

Modular

Han

®

Multi module - DIN 41 626

Features

• Suitable for FOC and coaxial contacts acc. to

DIN 41 626

• Using of guiding pins (male and female) is

imperative (see chapter 95).

Contact arrangement

according to following matrix

Contacts

Male insert (M)

"https://b2b.harting.com/ebusiness/en/

09 14 004 4501

"

Female insert (F)

"https://b2b.harting.com/ebusiness/en/

09 14 004 4512

"

Coaxial contacts

09 14 000 62xx

09 14 000 61xx

F.O. contacts

20 10 xxx 421x

20 10 xxx 422x

Coaxial cables (group 2)

Wires

Shell

Internal

wire

Attenuation db/100 m at

mm

mm

100 MHz 200 MHz 800 MHz

50 Ω

RG 174 / U

RG 188 A / U

RG 316 / U

2.5

2.6

2.5

0.48

0.54

0.54

29

40

40

84

75 Ω

RG 179 B / U

RG 187 A / U

2.55

2.7

0.3

0.3

41

41

Technical characteristics

Specifications

DIN EN 60 664-1

DIN EN 61 984

Approvals

,

Inserts

Number of contacts

4

Insulation resistance

≥ 10

10

Ω

Material

polycarbonate

Limiting temperatures

-40 °C ... +125 °C

Flammability acc. to UL 94

V 0

Mechanical working life

- mating cycles

≥ 500

Contacts

Coaxial contacts

Material

copper alloy

Surface

- hard-gold plated

demand level 2

Impedance

50 Ω / 75 Ω

Contact resistance

- Internal wire

≤ 10 mΩ

- Outer conductor

≤ 3 mΩ

Rated current

1.5 A

Rated voltage

50 V

F.O. contacts

Fibre type

Glas fibre (GI)

Attenuation

< 1.5 dB

F.O. contacts

Fibre type

Polymer Optical Fibre (POF)

Attenuation

< 2.5 dB

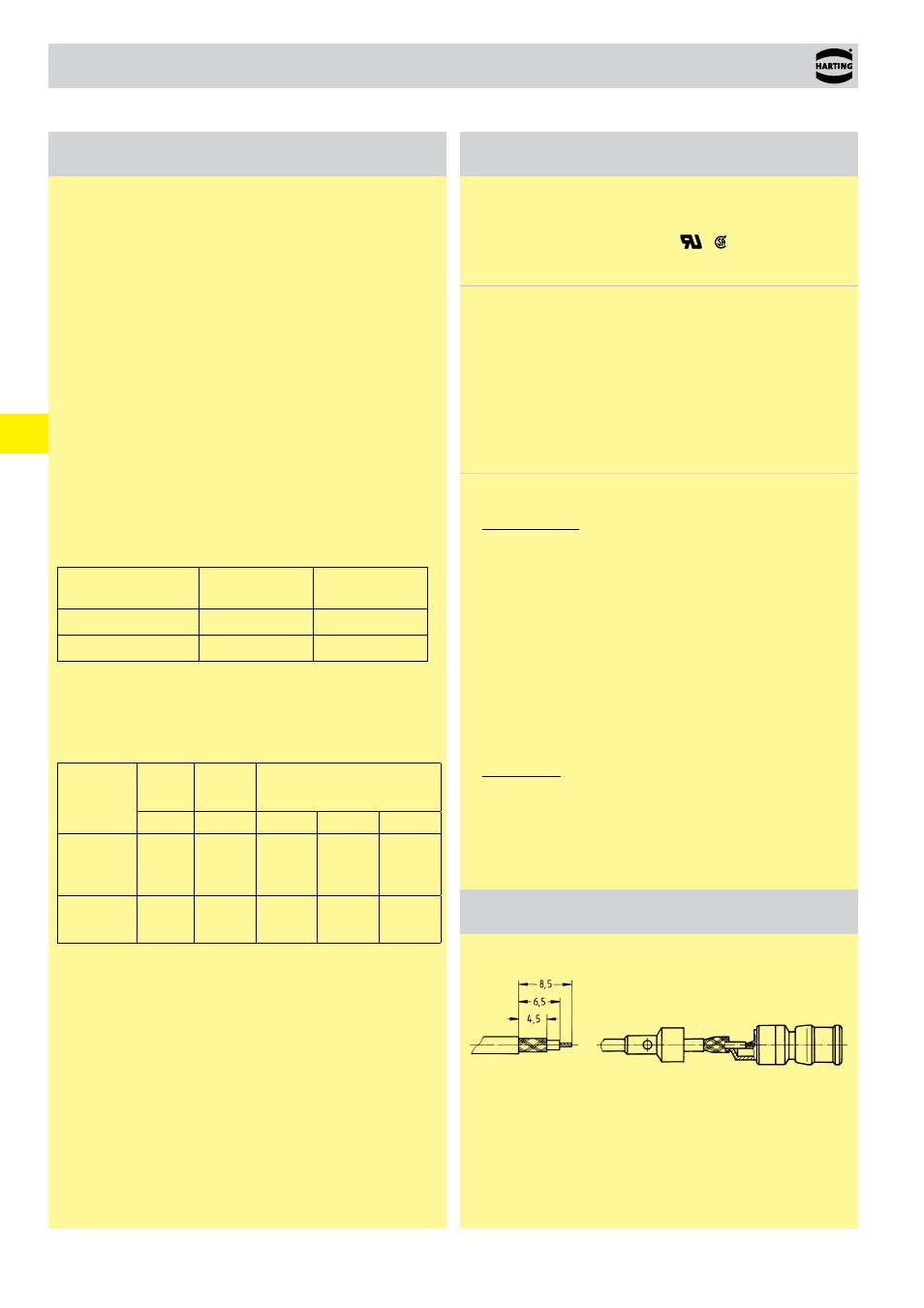

Assembly instructions

Stripping de-

scription

Assembly details

for coaxial contacts

Crimp barrel

solder

Solder temperature

approx. 300 °C

Solder duration

approx. 2 s

Due to the closed entry design of female insert the upper part

has to be removed by screw driver (7 mm) before extracting the

contacts. In this case the module will be destroyed.
