06

.

116

Han

Modular

Han-Elisa

®

Features

• Signal pre-processing and conversion do fit into

the connector

• Individual combination of input and output modules

for optimal signal pre-processing

• Minimum size for integration in Han

®

industrial

connectors (Han-Modular

®

and Han-Snap

®

)

• Economy of space by reduction the number of

terminal blocks and interface modules in the

switch cabinet

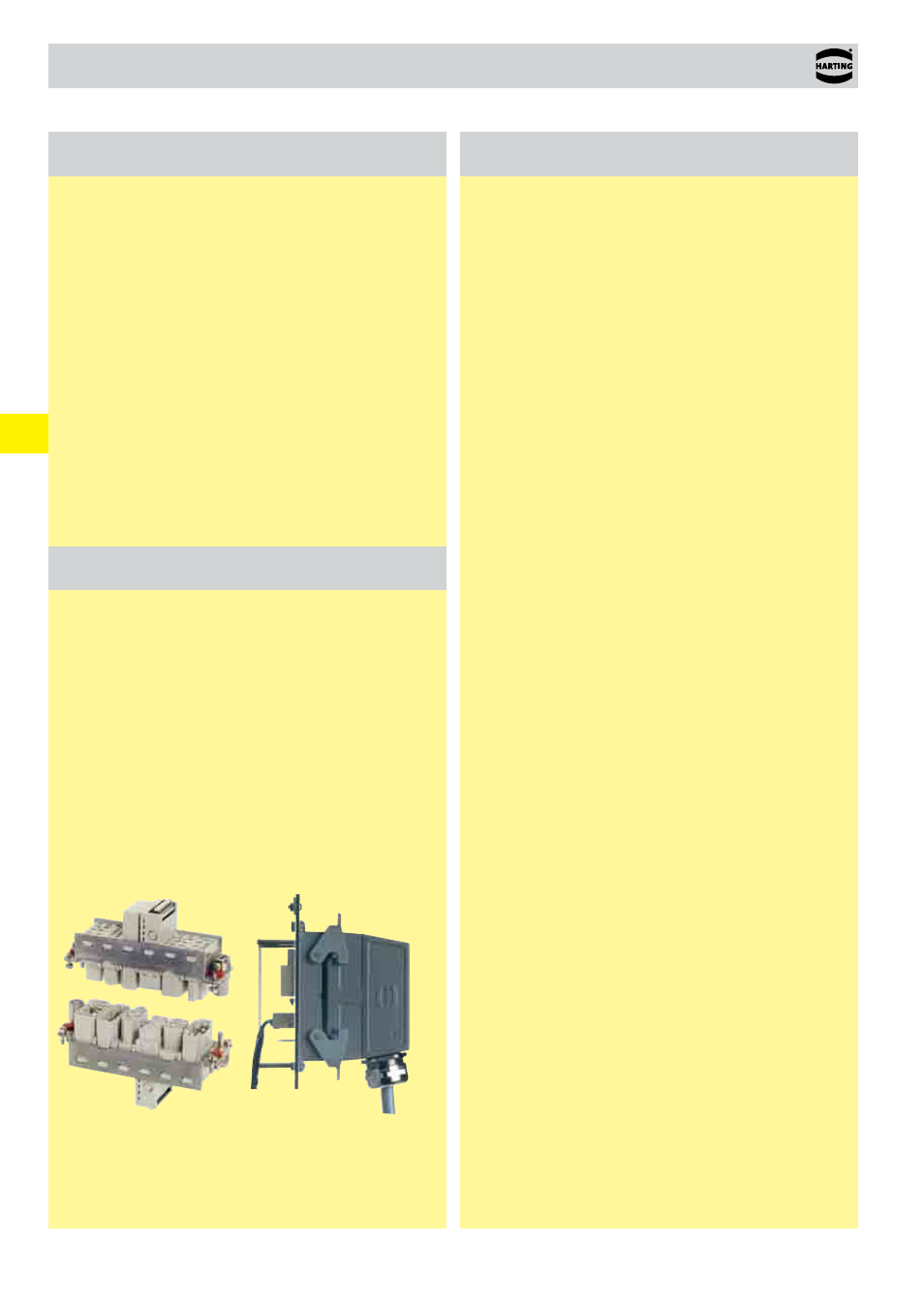

General description

The Han-Elisa

®

modules are a flexible I/O system - directly in

the connector.

The input and output modules are developed for 1 or 2 channels

and can be combined variously and flexible for optimal signal

pre-processing. Within the product family modules are available

for current/voltage converison, temperature, relay and timer.

Due to the minimized size thes modules can be integrated into

the Han-Modular

®

and Han-Snap

®

system.

Signal pre-processing and conversion do fit into the connector

and this will reduce installation space for terminal blocks and

the number of interface modules. So the switch cabinets can be

made smaller.

Technical characteristics

Power supply

(combination input and output module)

Supply voltage

24 V (-10 % ... +25 %)

Current consumption

< 0.08 A

Power consumption

< 2 W

Total transmission error

< 0.2 %
