06

.

58

Han

Modular

Han

®

EE Quick Lock module

Features

• Innovative Han-Quick Lock

®

termination technology

• Field assembly without special tools

• Compatible to Han

®

EE module with crimp terminal

• Reduced wiring times

Technical characteristics

Specifications

DIN EN 60 664-1

DIN EN 61 984

Approvals

Inserts

Number of contacts

8

Electrical data

acc. to EN 61 984

16 A 400 V 6 kV 3

Rated current

16 A

Rated voltage

400 V

Rated impulse voltage

6 kV

Pollution degree

3

Insulation resistance

≥ 10

10

Ω

Material

polycarbonate

Limiting temperatures

-40 °C ... +125 °C

Flammability acc. to UL 94

V 0

Mechanical working life

- mating cycles

≥ 500

Contacts

Material

copper alloy

Surface

- hard-silver plated

3 µm Ag

Contact resistance

≤ 1 mΩ

Termination

Han-Quick Lock

®

blue slide
Terminal wire gauge

0.5 ... 2.5 mm

2

(AWG 20 - 14)

max. Insulation diameter

3.6 mm

black slide
Terminal wire gauge

0.25 ... 1.5 mm

2

(AWG 23 - 16)

max. Insulation diameter

3.0 mm

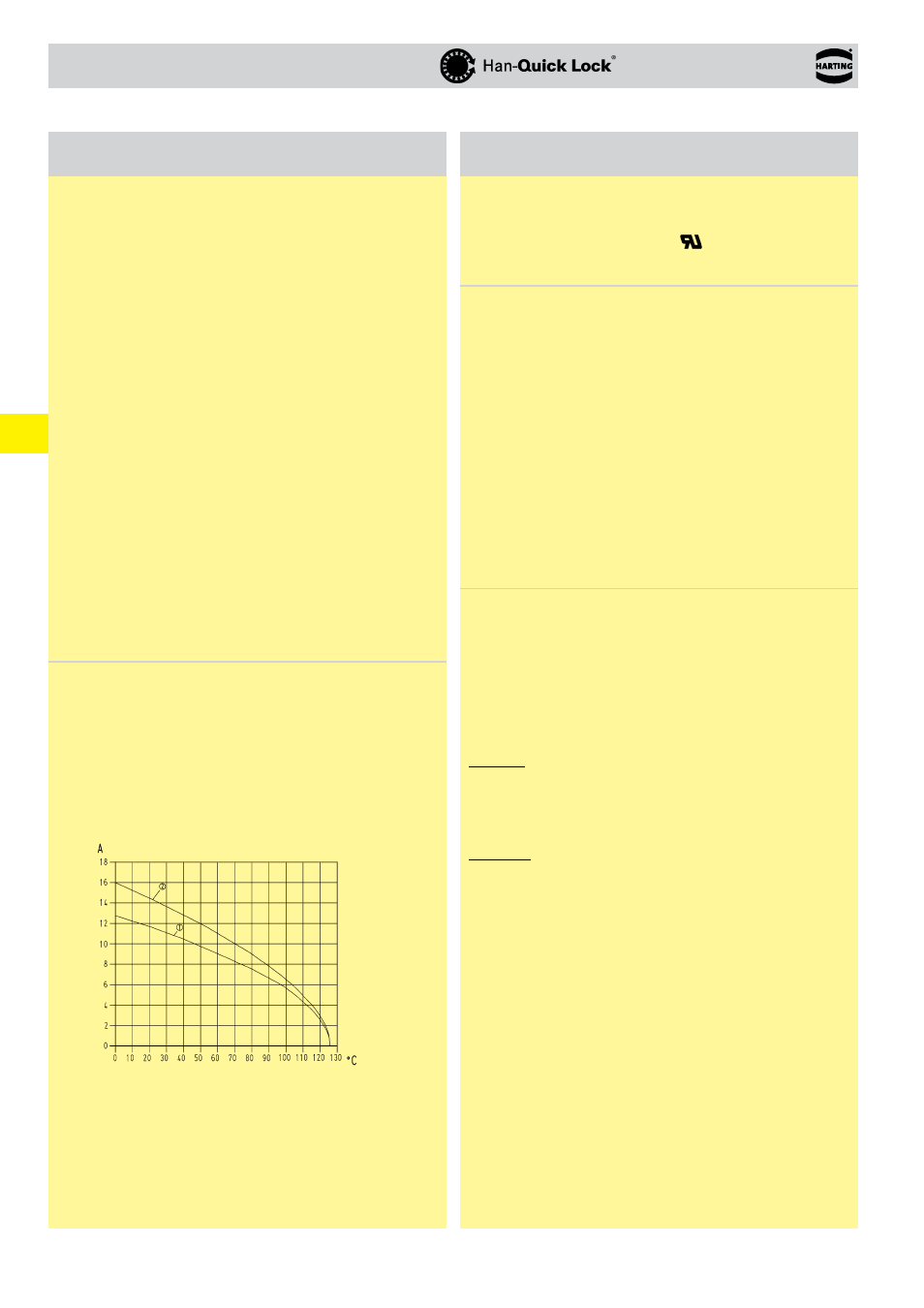

Current carrying capacity

The current carrying capacity of the connectors is limited by the

thermal load capability of the contact element material including

the connections and the insulating parts. The derating curve

is therefore valid for currents which flow constantly (non-inter-

mittent) through each contact element of the connector evenly,

without exceeding the allowed maximum temperature.

Measuring and testing techniques according to

DIN EN 60 512-5-2

Operating current

Ambient temperature

➀ 24 B hoods/housings with 6 modules; wire gauge: 1.5 mm²
➁ 24 B hoods/housings with 6 modules; wire gauge: 2.5 mm²
