Stock items in bold type

Han-Modular

®

- Accessories

Identification

Part number

Drawing

Dimensions in mm

Identification

Part number

Drawing

Dimensions in mm

Han-Modular

®

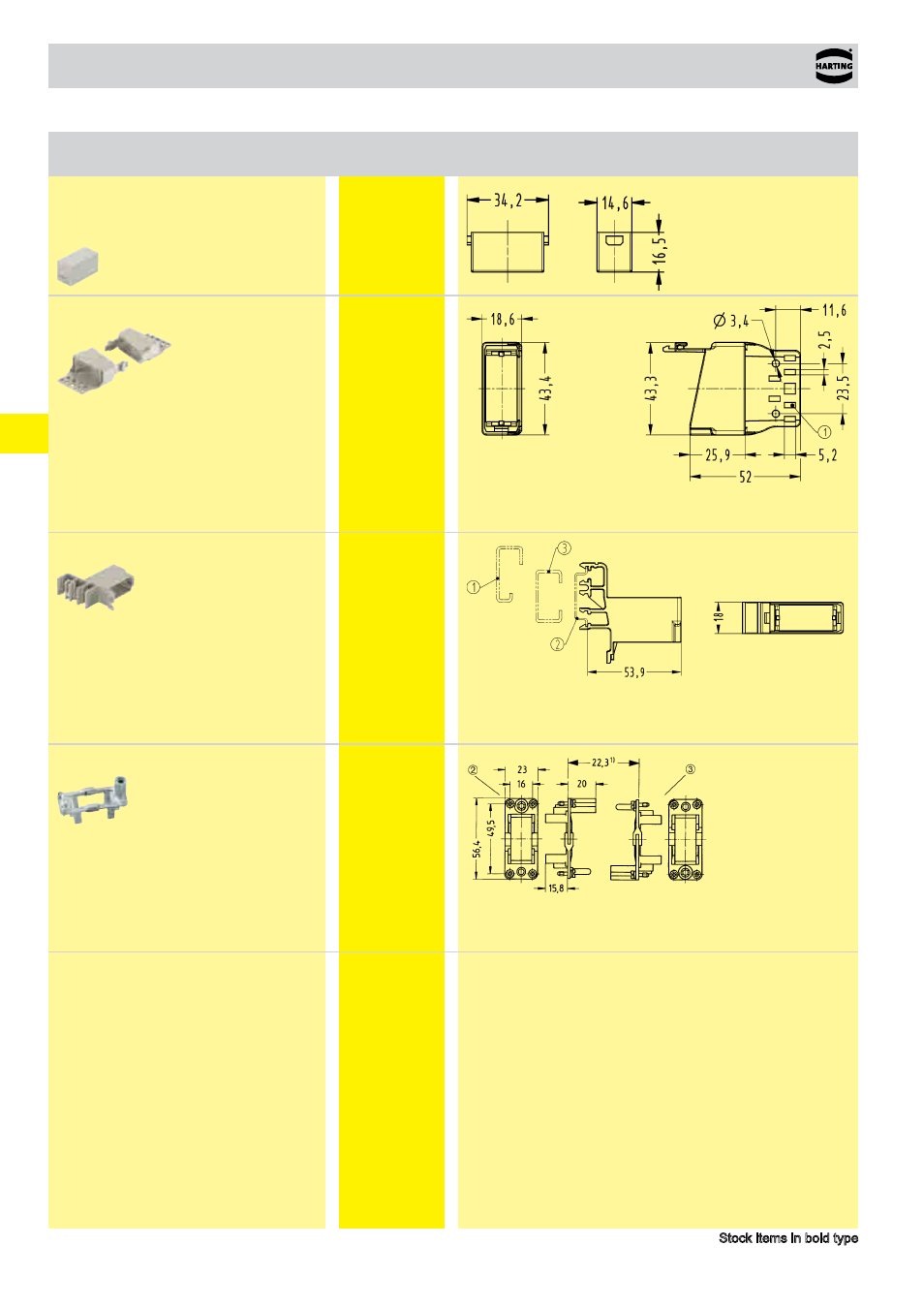

Dummy module

to fill up module spaces not in use in the
frame

Module clamp with strain relief

Delivery comprises one module clamp.

1 For cable ties with max. 5 mm width

Module clamp for rail

Delivery comprises one module clamp.

1 G-rail DIN EN 60 715-G32

2 rail DIN EN 60 715-35 x 7.5 with 1 mm thickness or -35 x 15

with 1.5 mm thickness

3 C-rail DIN EN 60 715-C30

Frame for 1 module

in housing Han

®

10 A

1 Distance max. 23.5 mm

2 Hoods

3 Housings
