Han

®

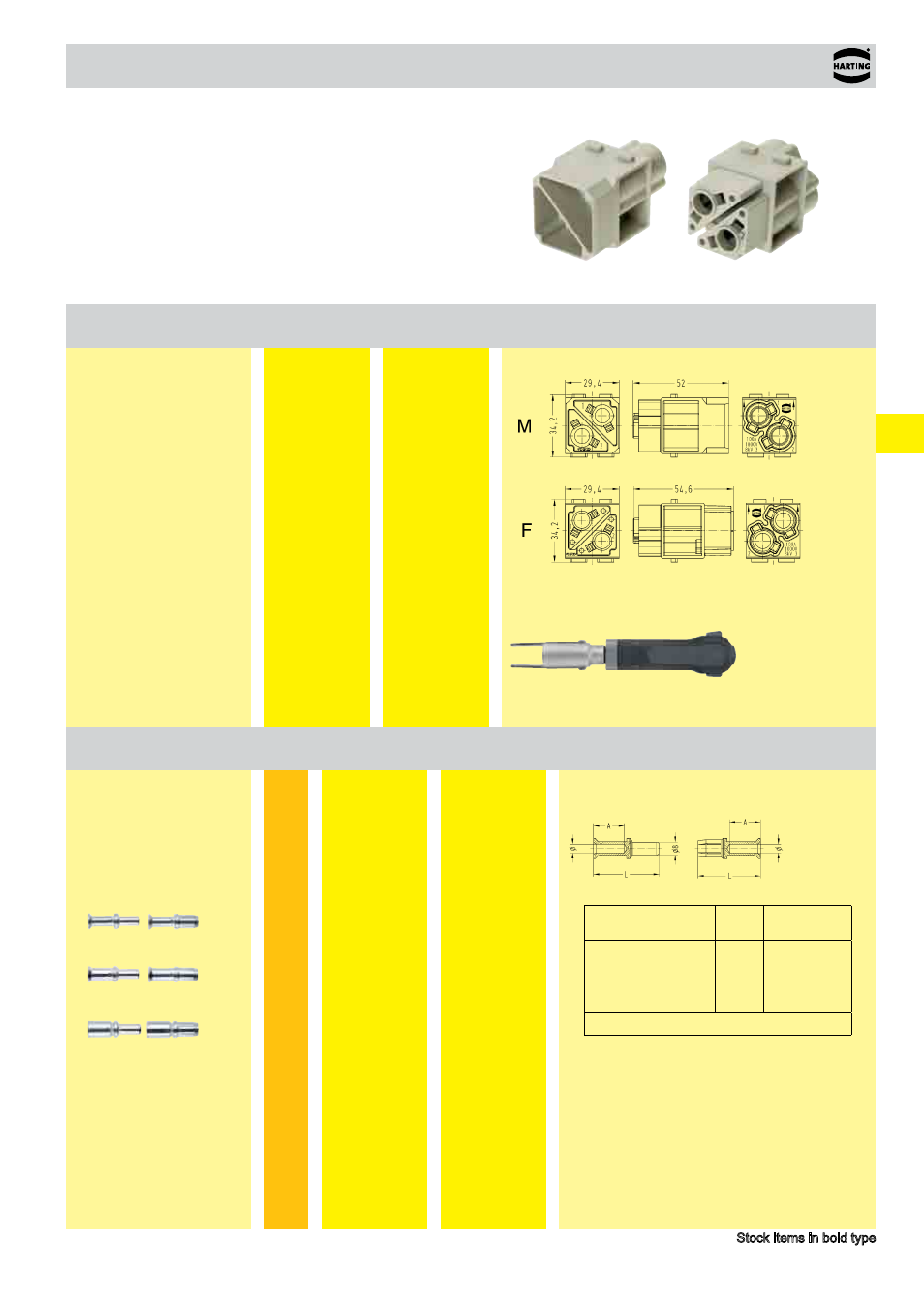

100 A Crimp module

1000 V 100 A

Stock items in bold type

Number of contacts

2

Part number

Identification

Male insert (M) Female insert (F)

Drawing

Dimensions in mm

Crimp terminal

Modul

Removal tool

for TC contacts

in 100 A crimp module

Wire gauge

Part number

Identification

(mm²)

Male contact Female contact

Drawing

Dimensions in mm

Wire gauge

Ø

Stripping

length (A)

10 mm²

16 mm²

25 mm²

35 mm²

4.3

5.5

7.0

8.2

19 mm

19 mm

19 mm

16 mm

for stranded wire acc. to IEC 60 228 Class 5

* Crimp zone acc. to DIN EN 46 235

Crimp contacts*

silver plated
