Han-Modular ®

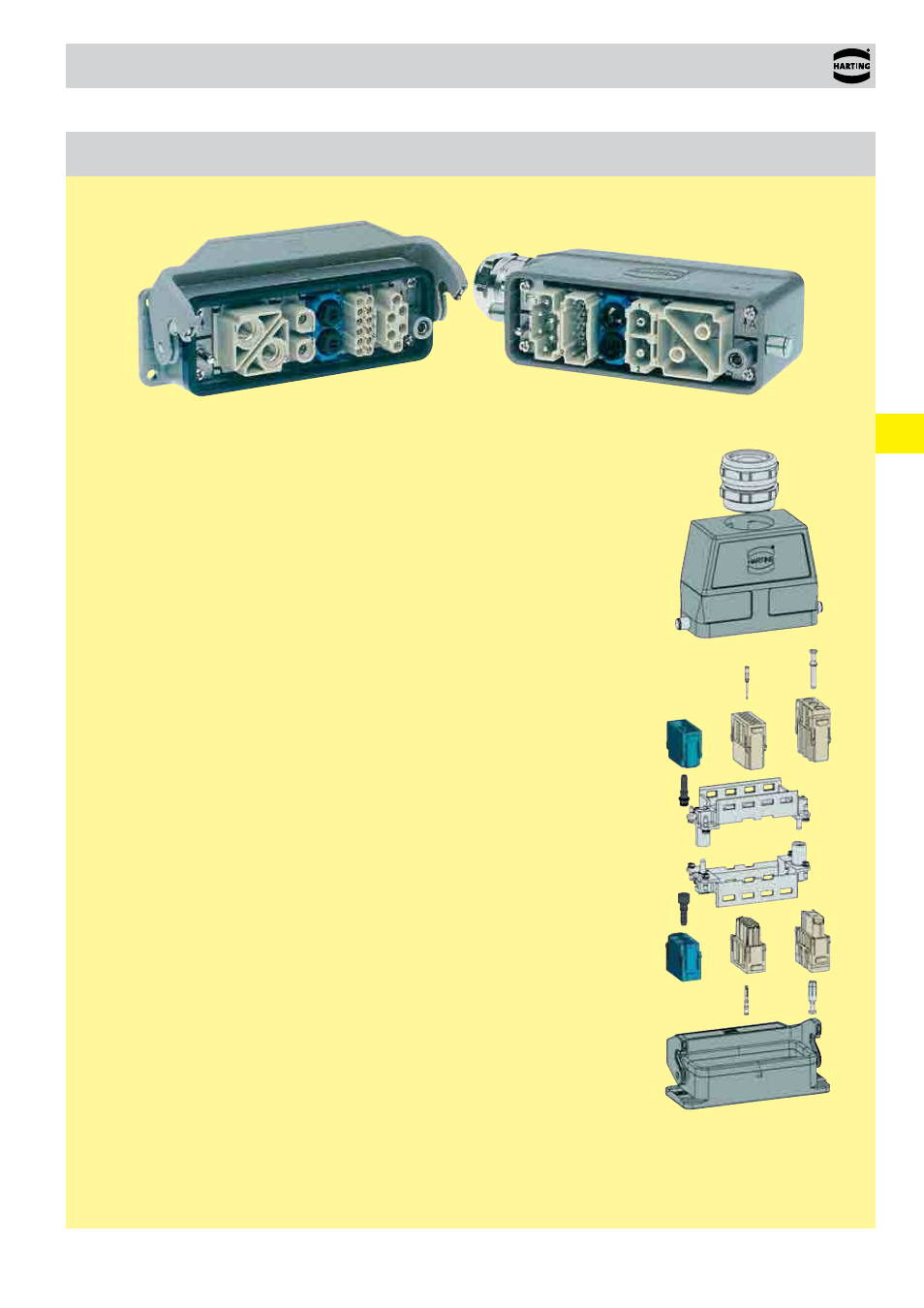

Description of the Han-Modular ® system
The Han-Modular ® series is a new system of inserts designed to meet the
specific requirements of individual customers. In close cooperation with
potential users a range of modular inserts have been developed allow-
ing the simple assembly of custom designed complete connectors which
meet the diverse requirements encountered by designers today.
Han-Modular ® is a logical development of the Han-Com ® series which
already offers the combination of power and signal circuits in one con-
nector.
The individual modules of this series now allow the integration of electri-
cal, optical and gaseous signal and power connections in one connector
assembly.
The pneumatic contacts are also suitable for the connection of liquid
media. However it must be stated that a combination of electrical and
liquid connections in one connector is not allowed according to VDE
regulations.
The individual contacts used in this system are all from existing well
proven ranges and it is possible to use combinations of 1 to 12 modules
depending on the size of the hoods and housings chosen.
The basic modules snap into a mounting frame and can be exchanged
separately at any time.
Advantages:
❑ Custom designs can be simply assembled
❑ Optimum solutions can be reached
❑ Stock can be minimized
Assembly details
