Han
Modular
Han ® CD module
Features
• 3 contacts (40 A) for power circuits and 4 contacts
(10 A) for signal circuits
• Ideal as motor drive connector
• Male and female contacts are finger safe

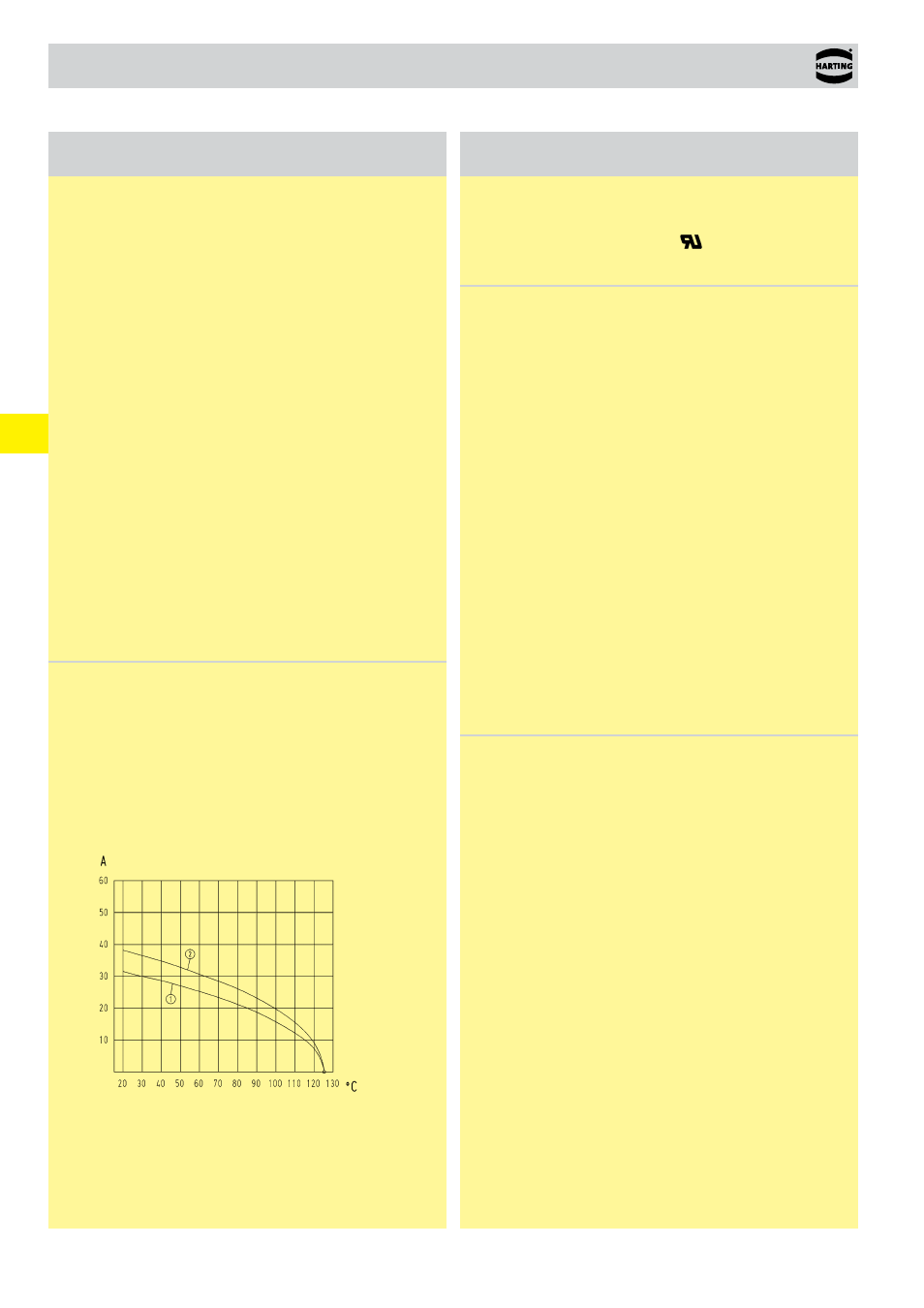

Current carrying capacity
The current carrying capacity of the connectors is limited by the
thermal load capability of the contact element material including
the connections and the insulating parts. The derating curve
is therefore valid for currents which flow constantly (non-inter-
mittent) through each contact element of the connector evenly,
without exceeding the allowed maximum temperature.
Measuring and testing techniques according to
DIN EN 60 512-5-2
Operating current
Ambient temperature
➀ 24 B hoods/housings with 6 modules; wire gauge: 4 mm²
➁ 24 B hoods/housings with 6 modules; wire gauge: 6 mm²
Technical characteristics
Specifications DIN EN 60 664-1
DIN EN 61 984
Approvals
Inserts
Number of contacts 3 / 4
Electrical data
acc. to EN 61 984
Power contacts
40 A 830 V 8 kV 3
Rated current 40 A
Rated voltage 830 V
Rated impulse voltage 8 kV
Pollution degree 3
Signal contacts
10 A 830 V 8 kV 3
Rated current 10 A
Rated voltage 830 V
Rated impulse voltage 8 kV
Pollution degree 3
Rated voltage
acc. to UL 600 V
Insulation resistance ≥ 10 10 Ω
Material polycarbonate
Limiting temperatures -40 °C ... +125 °C
Flammability acc. to UL 94 V 0
Mechanical working life
- mating cycles ≥ 500
Contacts
Material copper alloy
Surface
- hard-silver plated 3 µm Ag
- hard-gold plated 2 µm Au over 3 µm Ni
Contact resistance
Power contacts ≤ 0.3 mΩ
Signal contacts ≤ 3 mΩ
Crimp terminal
- mm²
Power contacts 1.5 ... 6 mm²
Signal contacts 0.14 ... 2.5 mm²
- AWG
Power contacts 16 ... 10
Signal contacts 26 ... 14
Max. insulation diameter
- Power contacts 5 mm
