06

.

123

Han

Modular

"https://b2b.harting.com/ebusiness/en/

20 70 001 1001

"

Han-Elisa

®

ID module

Stock items in bold type

Input module

Part number

Identification

Male insert (M)

Drawing

Dimensions in mm

Electronic identification module

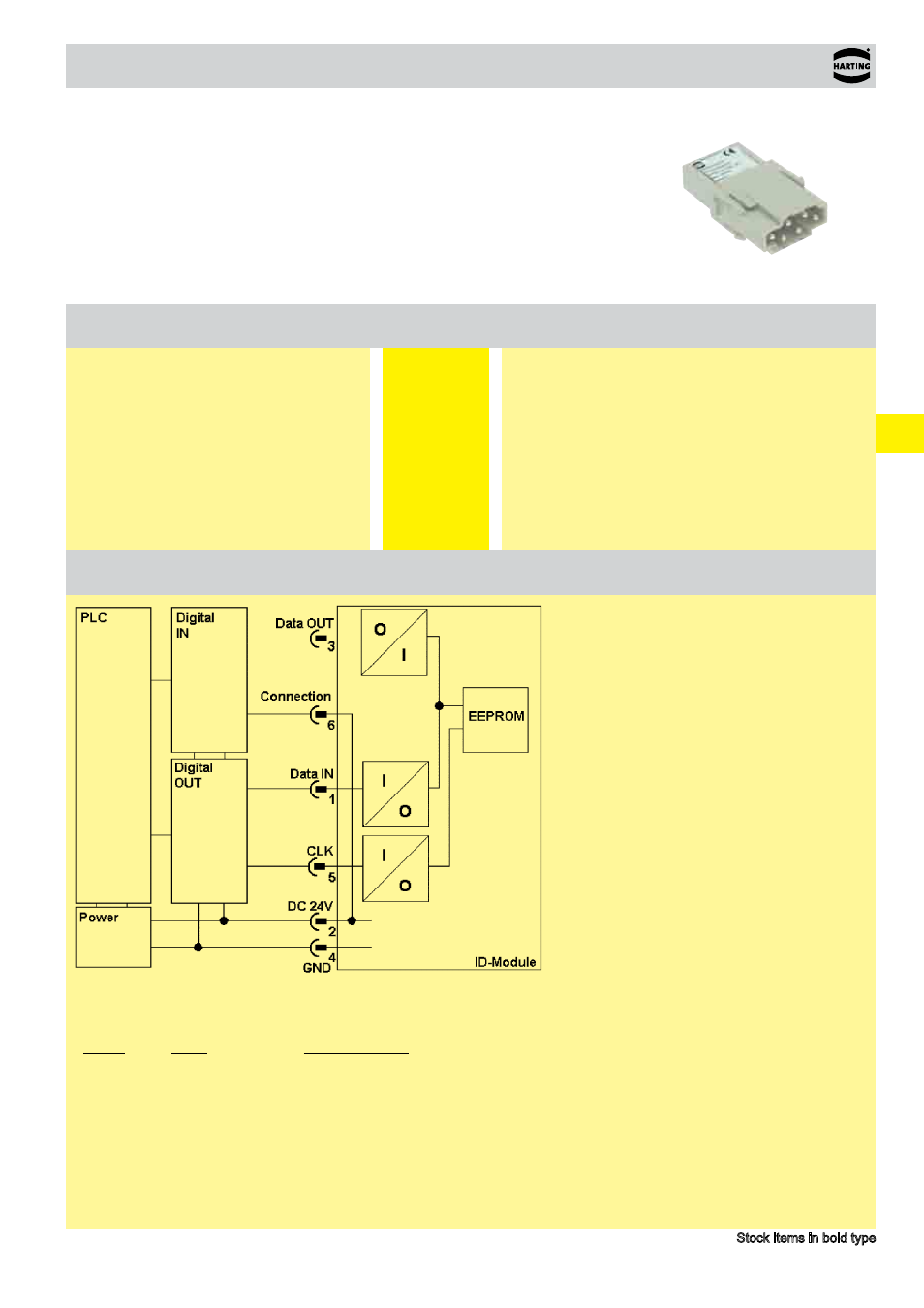

Block diagram / Wiring plan

Meaning of the connections

Pin no.

Name

Meaning/Function

1

Data IN

Input for data and control signals from PLC

2

DC 24 V

Power connection of the ID module

3

Data OUT

Output for data signals from ID module to PLC

4

GND

Ground

5

CLK

System clock for synchronisation

6

Connection

Output of the ID module for connection detection
