Northern Connectors Harting Han-Modular Connectors - Manual (Page 26)

06
.
26
Han
Modular
Han ® 200 A Crimp module
Features
• Crimp termination
• Contacts can be unlocked from the mating side
• Compatible with Han ® 200 A modules with axial
screw terminal
Current carrying capacity

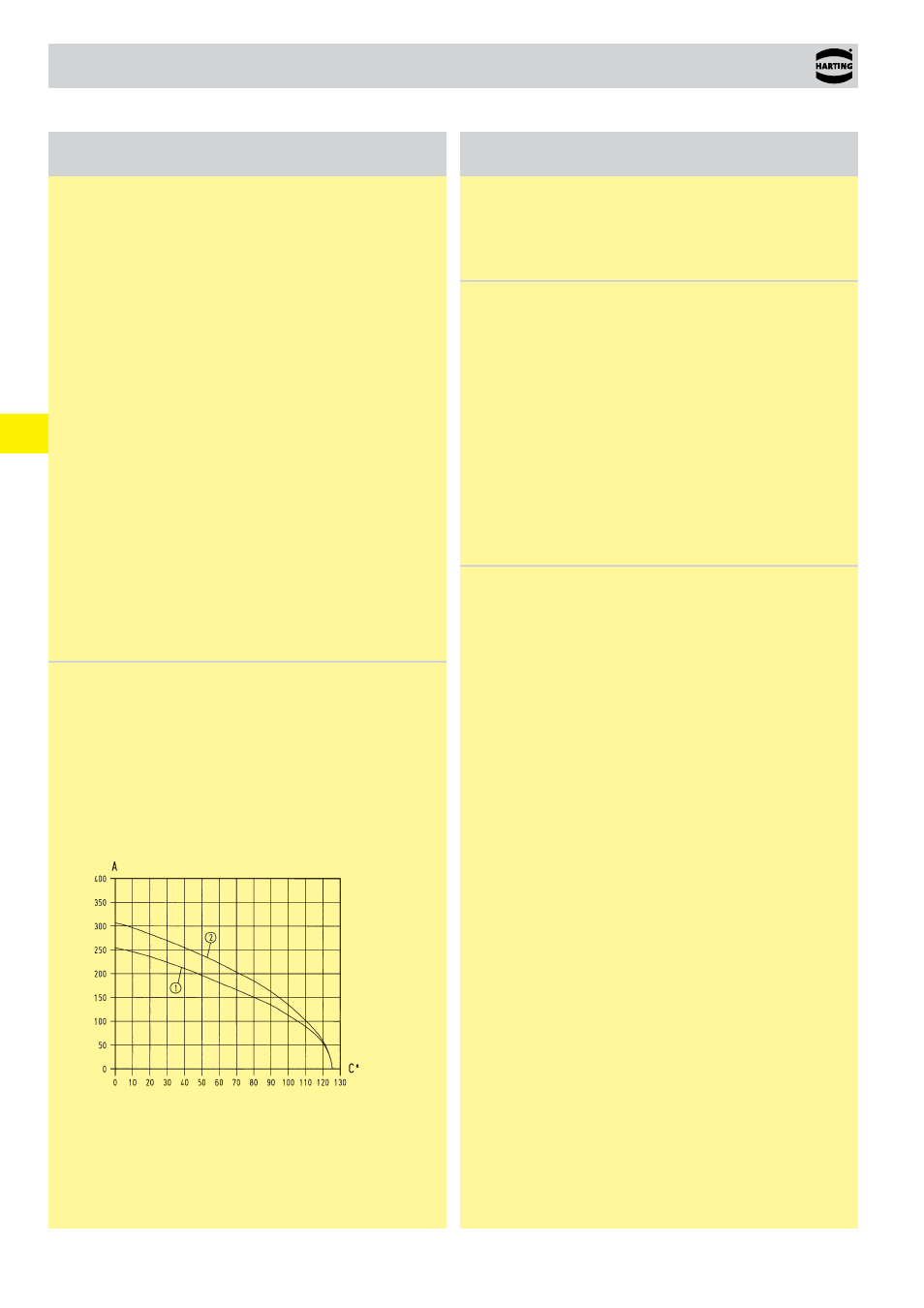

The current carrying capacity of the connectors is limited by the
thermal load capability of the contact element material including
the connections and the insulating parts. The derating curve
is therefore valid for currents which flow constantly (non-inter-
mittent) through each contact element of the connector evenly,
without exceeding the allowed maximum temperature.
Measuring and testing techniques according to
DIN EN 60 512-5-2
Operating current
Ambient temperature
➀ 24 B hoods/housings with 3 modules; wire gauge: 50 mm²
➁ 24 B hoods/housings with 3 modules; wire gauge: 70 mm²
Technical characteristics
Specifications EN 50 124-1
DIN EN 60 664-1
DIN EN 61 984
Inserts
Number of contacts 1
Electrical data
acc. to EN 61 984
200 A 1000 V 8 kV 3
Rated current 200 A
Rated voltage 1000 V
Rated impulse voltage 8 kV
Pollution degree 3
Insulation resistance ≥ 10 10 Ω
Material polycarbonate
Limiting temperatures -40 °C ... +125 °C
Flammability acc. to UL 94 V 0
Mechanical working life
- mating cycles ≥ 500
Contacts
Material copper alloy
Surface
- hard-silver plated 3 µm Ag
Contact resistance ≤ 0.3 mΩ
Crimp terminal
- mm² 25 ... 70 mm²
Max. insulation diameter 18 mm
