SWIFT 10 MC Sensors Installing the Transducer 91
C. Install the eight M8 bolts and flat washers through the hub adapter on
the slip ring side.
Lubricate the threads and under the head of each fastener with
Molykote g-n paste.
D. Following the inner bolt pattern sequence shown in the Torque
Sequence figure on page 85 , torque the eight M8 bolts (A through H) to
the value for the first increment shown in Bolt Torque Increment on
page 85 .
E. Repeat Step 9D for the final increment.
10. Position the motorcycle over the spindle housings, as required, to align the
forks and swing arms with the SWIFT 10.
11. Use the stock axle, axle nut, washers, and tension adjust/slide plates, as
required, to mount the vehicle.
Orient the flat on the axle spacer to the top of the swing arm (for rear wheel)
or the front of the fork tube mount (for front wheel).
Attach the anti-rotate bracket to the axle spacer and against the swing arm or
fork tube mount using the two 6-32 UNC fasteners provided.
Apply Locktite 222 Threadblocker to each fastener and torque to 2 N•m (18
lbf•in).
Torque the axle nut to the manufacturers specifications.

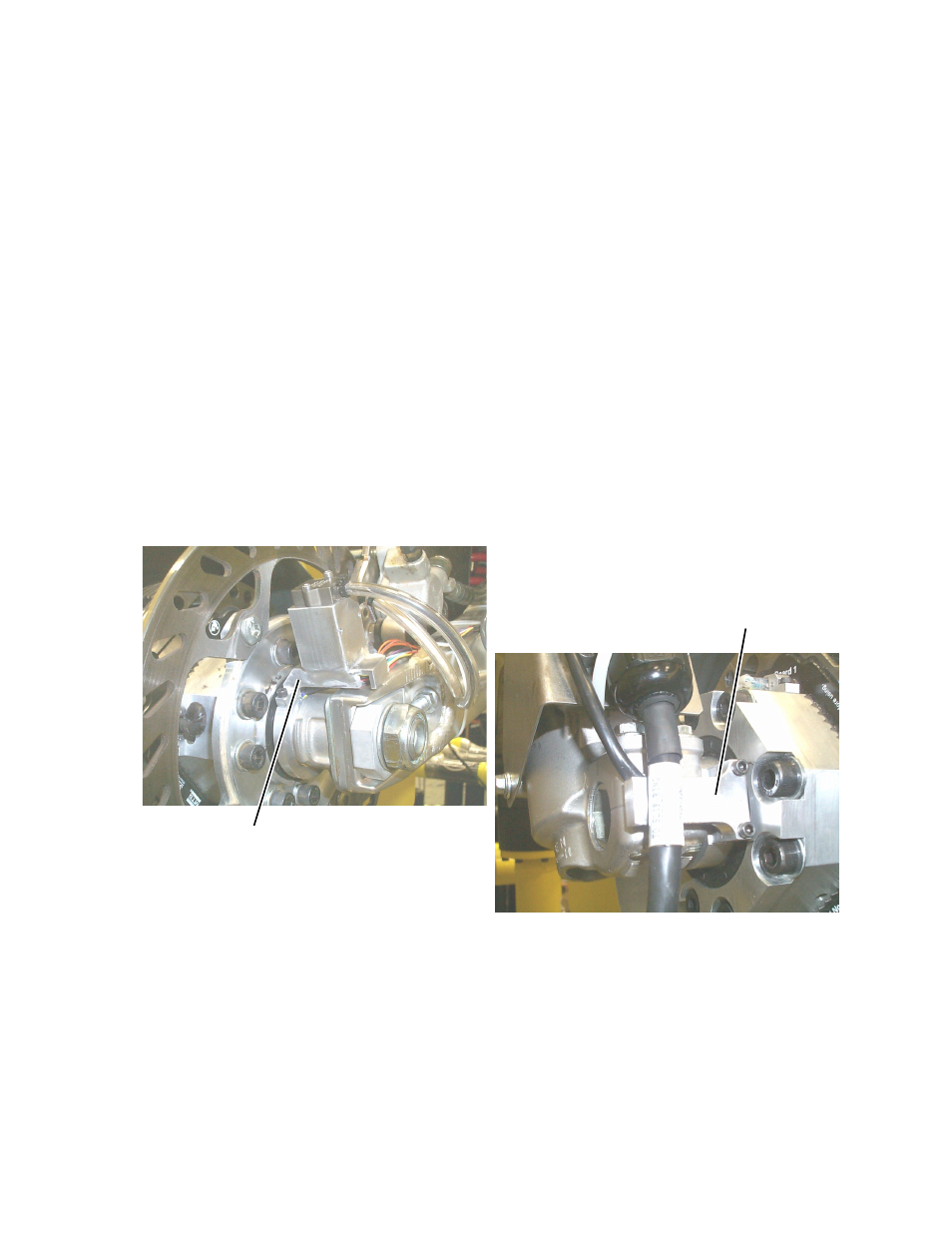

Front Anti-Rotate
Bracket
Rear Anti-Rotate
Bracket
