Select a Zero Method
SWIFT 10 MC Sensors Setting up the Transducer Interface 51
Calibration File Elements

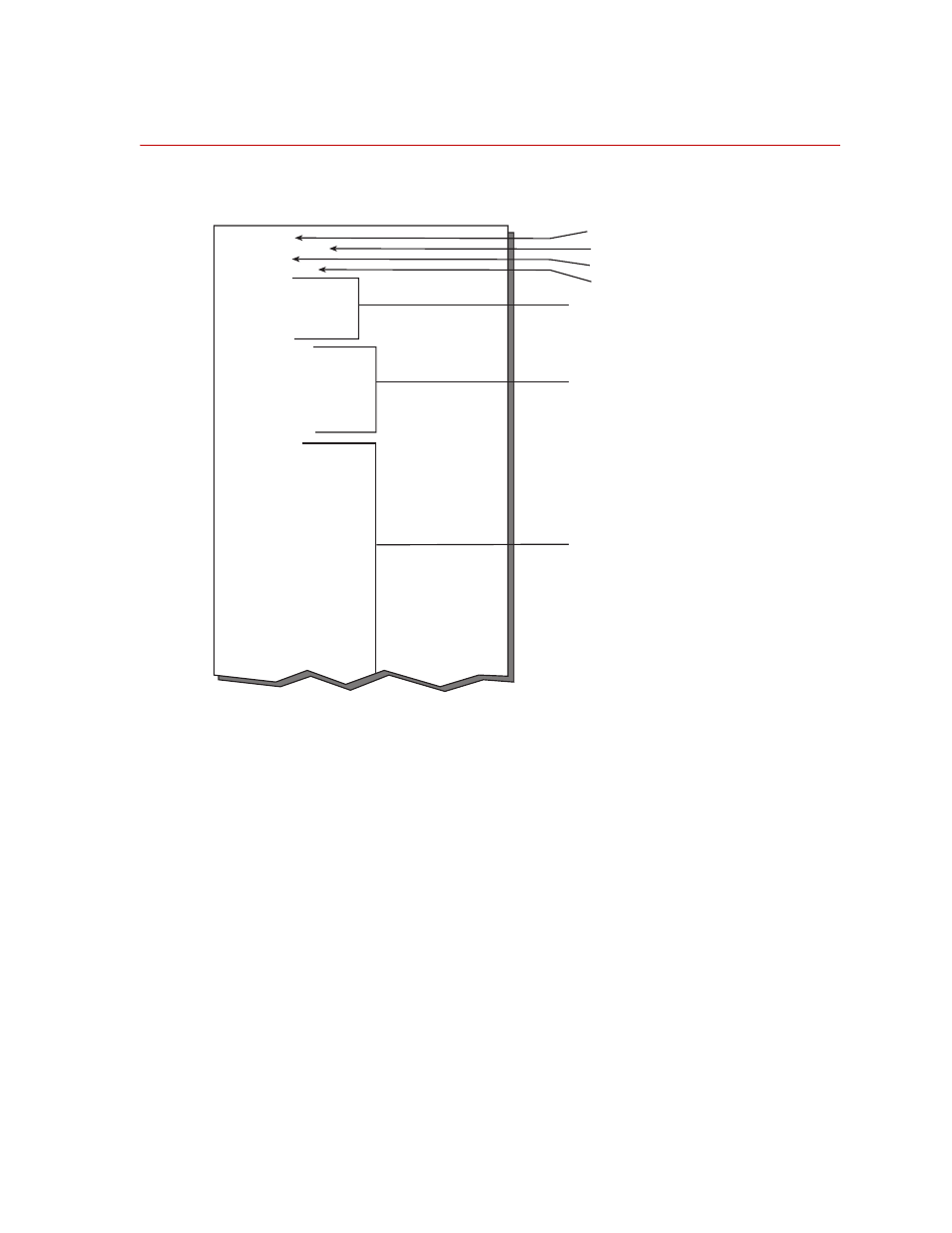

The following figure shows some elements of the calibration file:
Typical Calibration File
Items you may edit • OutputPolarities—defines the polarities of the six outputs. Change these
only if your application requires different polarities from those identified on
the transducer label.
• AngleMode—selects the mode used for determining the encoder sine and
cosine.
• AngleFixed—used for non-spinning applications.
• AngleOffset— used for spinning applications. Normally you do not need to
change this value.
• EncoderSize–defines the size of the encoder.
S10MC-33
SerialNum=10237221A
AngleMode=0
AngleOffset=0
AngleFixed=0
EncoderSize=2048
FXPolarity=0
FYPolarity=0
FZPolarity=0
MXPolarity=1
MYPolarity=0
MZPolarity=1
ZFX1=0
ZFX2=0
ZFY1=0
ZFY2=0
ZFY3=0
ZFY4=0
ZFZ1=0
ZFZ2=0
FX1Channel=2
FX2Channel=6
FY1Channel=99
FY2Channel=99
FY3Channel=99
FY4Channel=99
FZ1Channel=4
FZ2Channel=0
InputRange=10.0
KFX1=0.492315
KFX2=0.492315
KFY1=0.0
KFY2=0.0
KFY3=0.0
KFY4=0.0
KFZ1=0.49212
KFZ2=0.49212
KMX=0.0
KMYX=1.44278
KMYZ=1.44278
KMZ=0.0
KFXFY=0.0
Polarity for each output
(0 = normal, 1 = inverted)
Angle Mode (0 = Spinning, 1 = Fixed)
Angle Offset
Fixed Angle
Bridge Zeroes
Do Not Modify
Calibration Gains
Do Not Modify
Encoder Size
