MTS SWIFT 10 MC Sensor User Manual

Page 73

Road and Track Vehicles

SWIFT 10 MC Sensors

Installing the Transducer

Note

Some data acquisition systems, power systems, and alternators may
introduce electrical noise spikes to the battery and cabling. The TI
electronics should always be used with the cleanest power supply
possible. To reduce the likelihood of noise spikes from the data recorder,
we suggest running the power cables in parallel, as shown in the
following diagrams. If this does not remove the noise spikes, separate
batteries may be required.

The data recorder should also be connected to the battery negative terminal.
(See the following figures.)

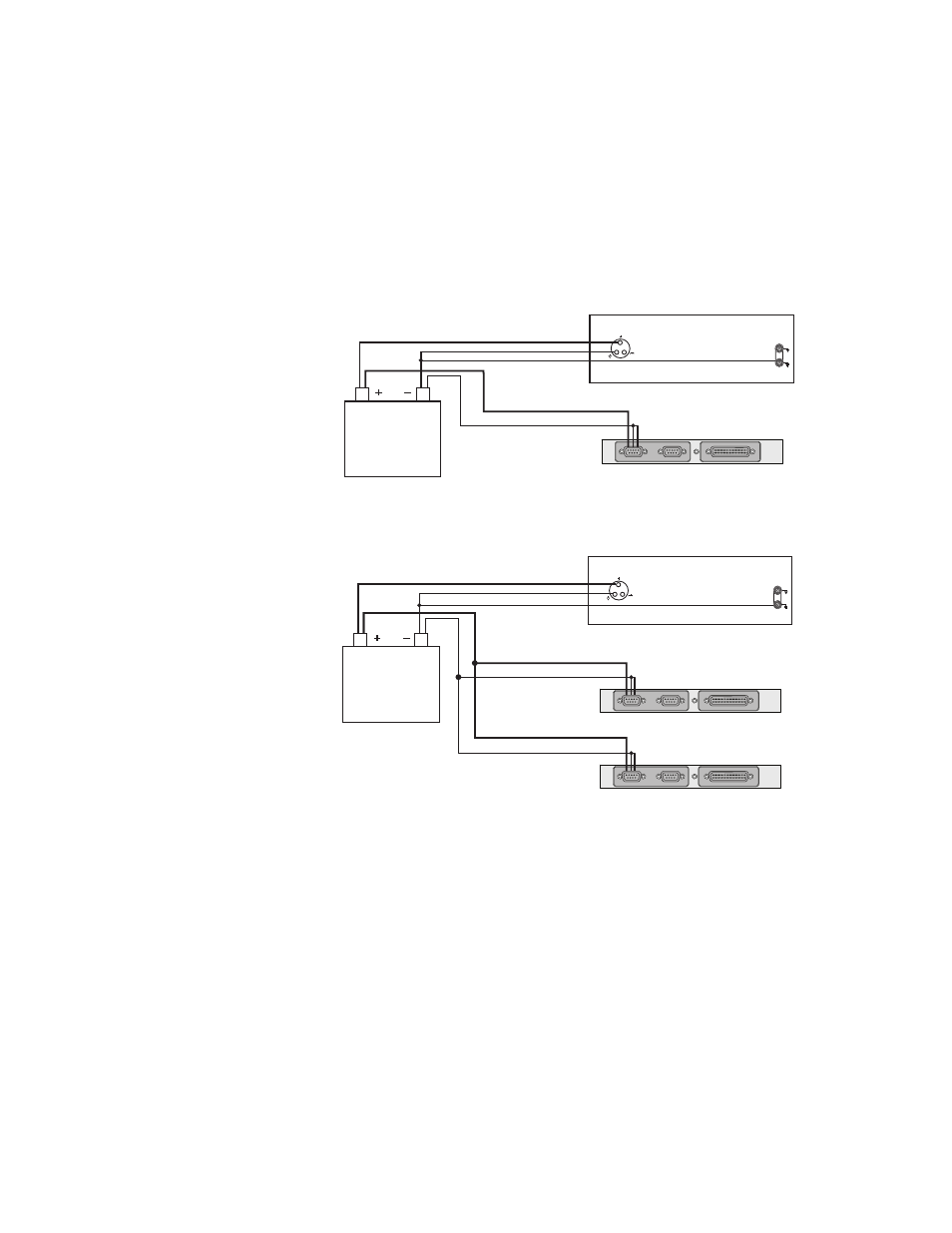

Suggested Grounding for a single TI Box

Suggested Grounding for a Multiple TI Boxes

3. Secure the TI box so that it will not move during data collection.

Note

If the TI box is not properly secured, it can dislodged from the vehicle.

4. Cover the J4 I/O and J5 USB connectors to protect the connectors from

contamination.

5. Turn on the TI

Press and hold the Power switch until the indicator lights. All other
indicators will light until initialization is complete and then turn off. Only
the Power indicator should remain lit.

12 Vdc

Transducer Interface

S10-25

Data Recorder

12 Vdc

Transducer Interface

Data Recorder

S10MC-26
