SWIFT 10 MC Sensors 60
Road and Track Vehicles
Installing the Transducer

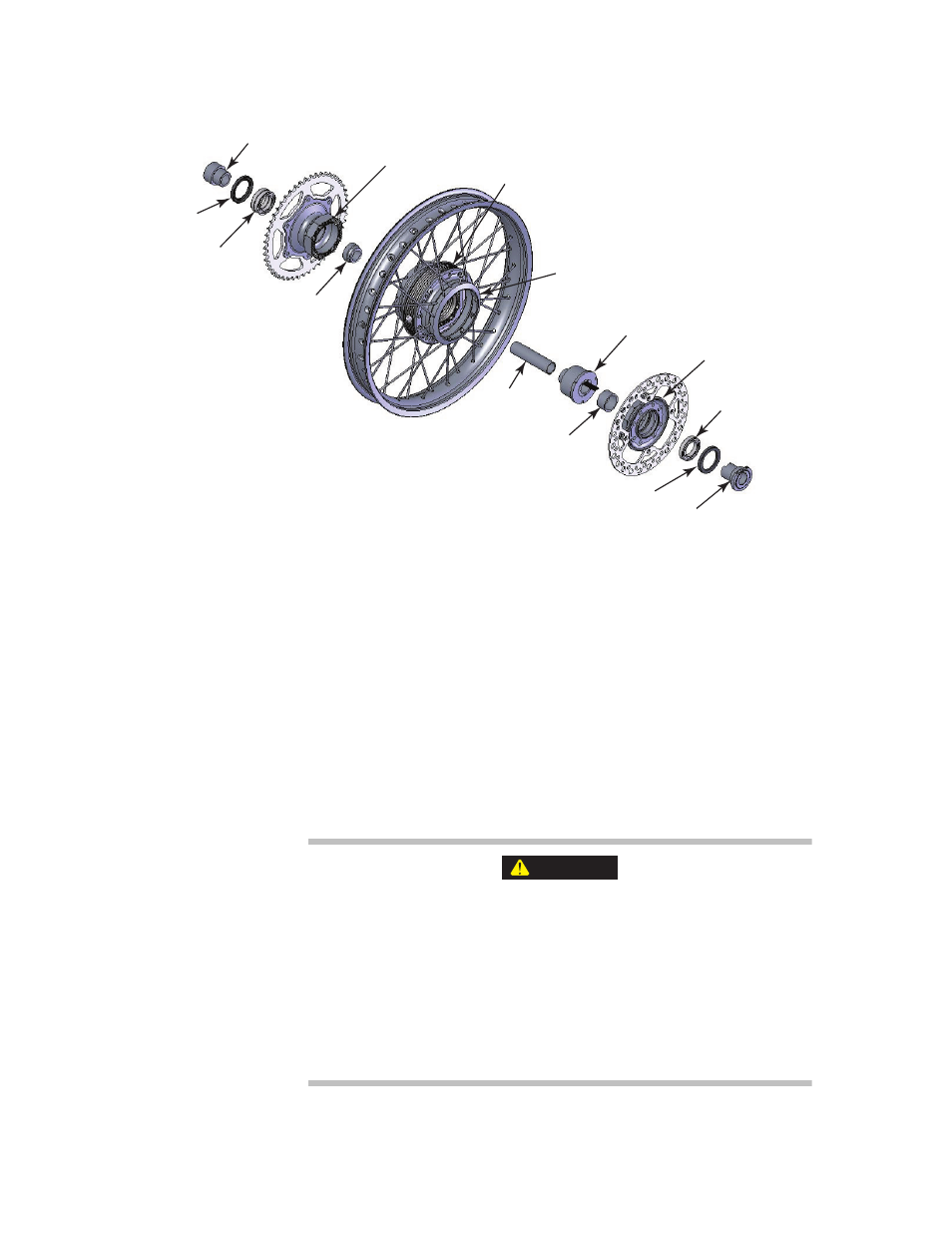

Typical Installation Components (rear shown)
Importance of bolts
Bolts provide exceptional clamp force at the transducer to rim/spindle interface.
• Bolts on the inner hub secure the hub adapter to the SWIFT sensor.
• Bolts on the outer ring secure the SWIFT sensor to the outer spoke/hub
adapters (or the road simulator spindle adapter).
Note Make sure all bolts are in place, are of the proper length, and fully
torqued during all tests. Correct use of bolts reduces the safety hazard
and ensures optimal transducer performance.
Before you begin
Observe the following safety conditions while you are attaching the SWIFT
sensor and components to the vehicle.
Do not pressure-wash the transducer or clean it with solvents.
Pressure-washing the transducer or cleaning it with solvents can damage it
or degrade the silastic seal and may void the warranty.
Using strong cleaners or solvents can damage the RTV seal and may void
the warranty.
Use only a soft sponge or brush with non-metal bristles and a gentle detergent
(such as dish soap) to wash the transducer.
Inner Hub
Adapter - Brake
Outer
Spoke/Hub
Adapter
Transducer Assembly
Axle Spacer
Axle Spacer
Oil Seal
Sealed Ball
Bearing
Load Spacer
Slip Ring
Encoder
Axle
Sleeve
Inner Hub
Adapter - Sprocket
Load Spacer
Sealed Oil
Bearing
Oil Seal
S10MC-08
CAUTION
