100-180-624

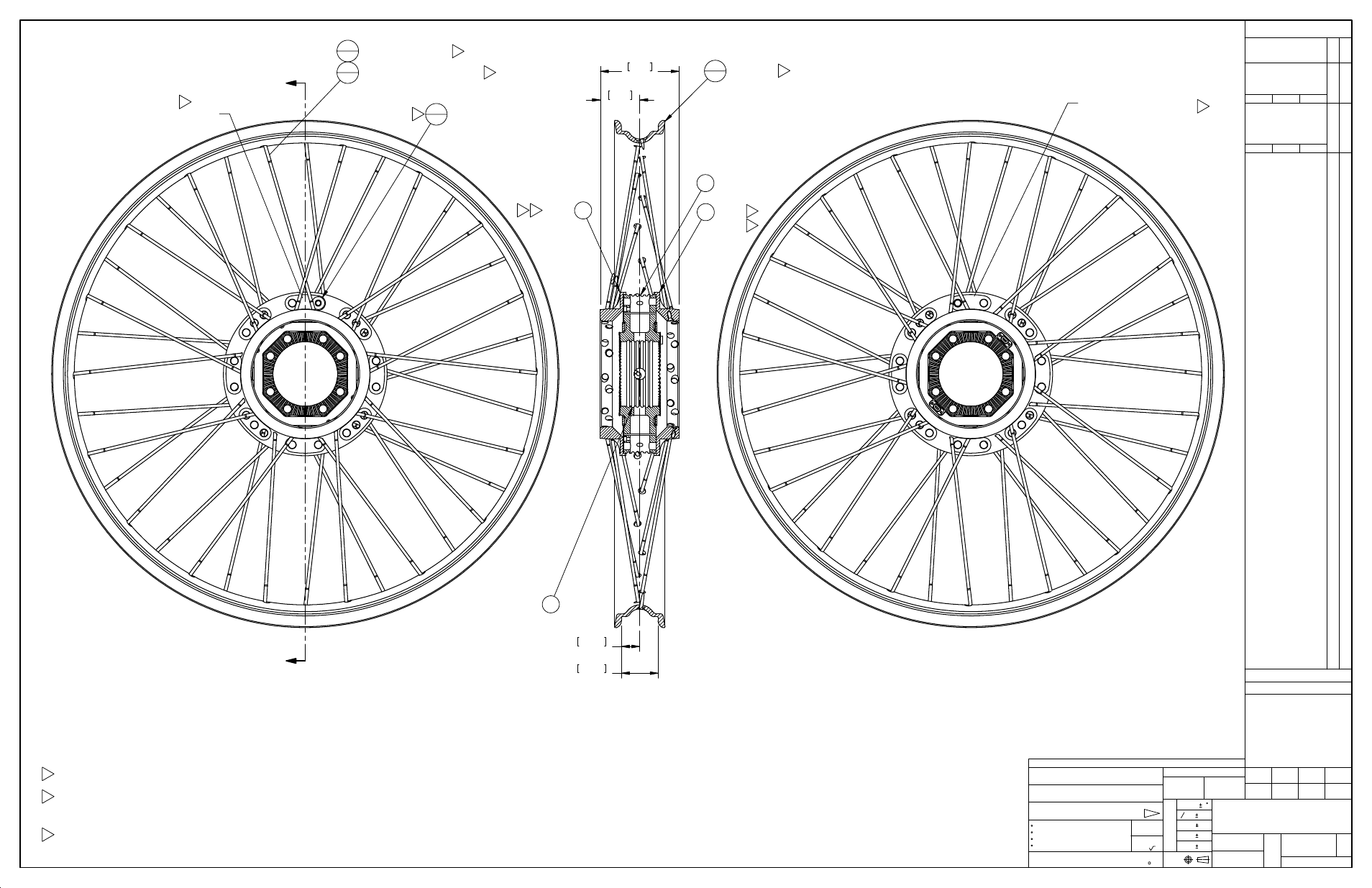

RIM ASSEMBLY-FRONT,
21 X 1.60 RIM, SWIFT 10
C
11-07 RAM RLJ
ADDED SHEET 2-5, BALLOONS
AND NOTES.
B
R
U
L
E
1
7-08
REPLACED ITEM 5,
P/N 100-179-595, ON SHEET 2
WITH P/N 100-199-670.
REPLACED ITEM 4,
P/N 100-179-594, ON SHEET 3
WITH P/N 100-199-669.
ADDED ITEM 27,
P/N 100-198-826.
R
U
L
E
1
RAM RLJ
C
OUTER HUB ASSY
1L
LEFT HAND OUTER HUB IS
STAMPED WITH "1L", TO BE
LOCATED AT BEAM 1 ON TRANSDUCER
LEFT HAND SIDE
(CONNECTOR SIDE)
(BRAKE SIDE)
STOCK RIM
TRANSDUCER
ASSEMBLY
OUTER
HUB
1
2
3
3
A
A
16
40
6
36
31
REF
RH
SIDE
1R
RIGHT HAND OUTER HUB IS
STAMPED WITH "1R", TO BE
LOCATED AT BEAM 1 ON TRANSDUCER
RIGHT HAND SIDE
M8 X 1.25MM TORX PAN HD SCR
(20 THIS SIDE, 20 OPP. SIDE)
NOTES:
ALIGN OUTER HUBS (ITEMS 2 & 3) ON PROPER SIDE OF RIM AND WITH STAMPINGS ("1L" & "1R")
LOCATED AT BEAM 1 ON TRANSDUCER (ITEM 1).
ASSEMBLE BOTH OUTER HUBS (ITEMS 2 & 3). APPLY MOLYKOTE GN PASTE TO THREADS AND
UNDER THE HEADS OF M6 X 1MM TORX BUTTON HEAD CAPSCREWS (ITEM 16) AND TORQUE IN
2 STEPS OF 14 & 28 FT-LB (19 N-M & 38 N-M). (USE BOLT TORQUE SEQUENCE PROCEDURE
P/N 700-003-829.)
ASSEMBLE OUTER HUBS TO RIM (ITEM 7). PROPERLY ALIGN RIM AND LACE USING SPOKES
(ITEM 6) AND FASTEN TO RIM WITH SPOKE NIPPLES (ITEM 31). TIGHTEN SPOKE NIPPLES TO
FINGER TIGHT. RIM WILL BE TRUED FOR LATERAL & RADIAL RUNOUT LATER IN ASSEMBLY.
1
2
3
STOCK SPOKE NIPPLE
OUTER
HUB
MODIFIED STRAIGHT SPOKES
1
2
2
3
3
3
O-RING
3.42
86.9
1.594
40.50
1.71
43.4
.797
20.25
SECTION A-A
SCALE 1 : 1.75
1
3 2
7
REF
LH
SIDE
