SWIFT 10 MC Sensors 64
Road and Track Vehicles
Installing the Transducer
F. Repeat this entire step for the other wheel, as necessary.
G. Continue with Step 6.
5. Assemble the transducer and the modified composite or metal rim hub
adapters and rim as follows:
A. Loosely install a rim hub adapter and washer plate to one side of the
transducer using the twenty M8 socket head cap screws (see the
previous figure).
Lubricate the threads and under the head of each fastener with
Molykote g-n paste.
B. Turn the assembly over.
C. Position the modified rim over the installed rim hub adapter.
D. Position the second rim hub adapter and washer plate on the transducer.
E. Loosely secure the rim hub adapter and washer plate to the transducer
using twenty M8 socket head cap screws.
Lubricate the threads and under the head of each fastener with
Molykote g-n paste.

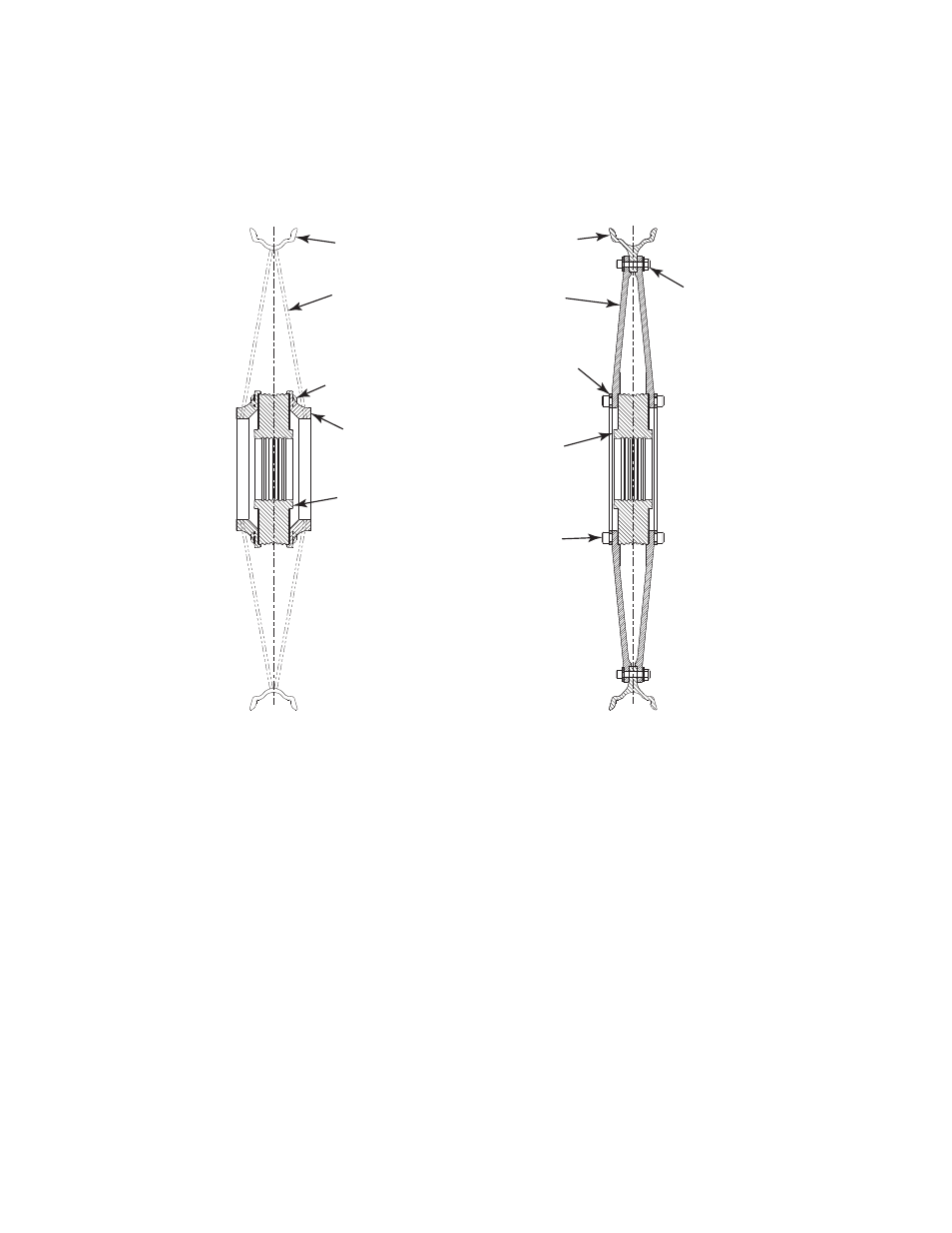

Modified Rim
Center Line of
Rim and Transducer
Center Line of
Rim and Transducer
Rim Hub
Adapter (2)
Washer Plate
Fasteners (M8
Socket head 20)
Transducer
Fasteners (M8
button head Torx 20)
Transducer
Spoke Hub
Adapter (2)
Modified
Spokes
(as required)
Stock
Spoke Rim
Standard Spoked
Rim Assembly
Modified Composite or
Metal Rim Assembly S10MC-04
M6 Socket Head
Cap Screws with
Washers and Nylok Nut
(as required)
