Spinning Applications (Track or Road)
Hardware Overview
Spinning Applications (Track or Road)
The SWIFT sensor can be used for road load data acquisition (RLDA)
applications:
• Durability
• Noise, Vibration and Harshness (NVH)
• Ride and Handling
• Tire Performance
The transducer is durable enough to withstand harsh road testing and data
acquisition environments. The transducer is splash resistant and suitable for use
in conditions where the test vehicle will encounter occasional standing or running
water, or will be exposed to precipitation. However, it should not be submerged.
In a typical spinning application, the transducer is mounted on a modified rim of
a tire on a test vehicle, as shown in the following figure. The Transducer
Interface (TI), power supply, and data recorder can be securely mounted on a
carriage rack. Although the TI box is sealed against moderate environmental
conditions (water and mud splashes and dust), it should not be allowed to be
immersed.

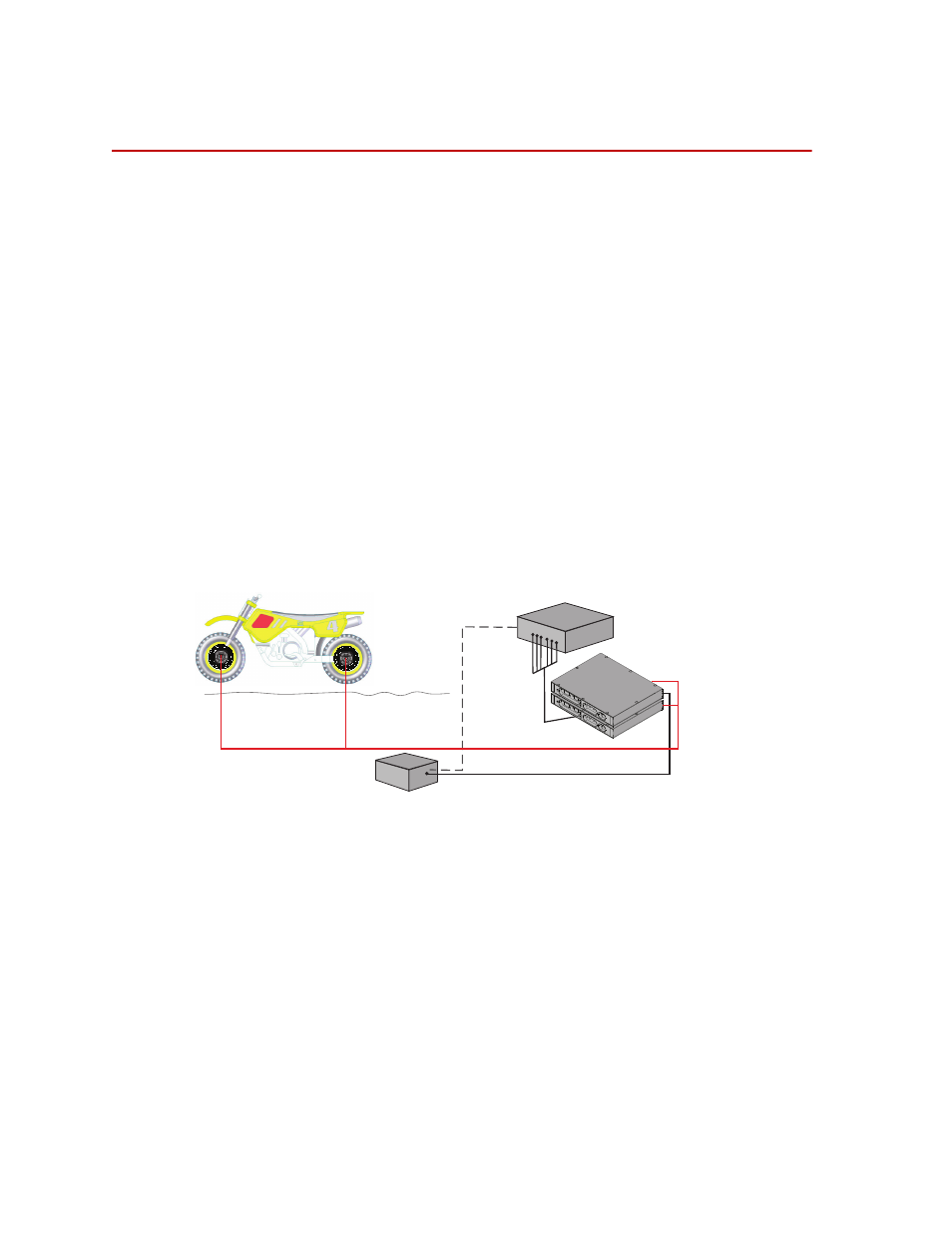

Spinning Application (Track or Road)
Customer Supplied
Power Supply
Customer Supplied
Data Recorder
Transducer
Interface (TI)
Transducer Signals
Output
Signals
