72
3.10 Acceleration and deceleration times T
ir
, T
if
The ramp generators (main set-value, set-value 2) are
programmed using the acceleration and deceleration times. Under
C012 and C013, the ramp generator for the main set-value (Set-
value 1/JOG frequency) receives its standard setting.

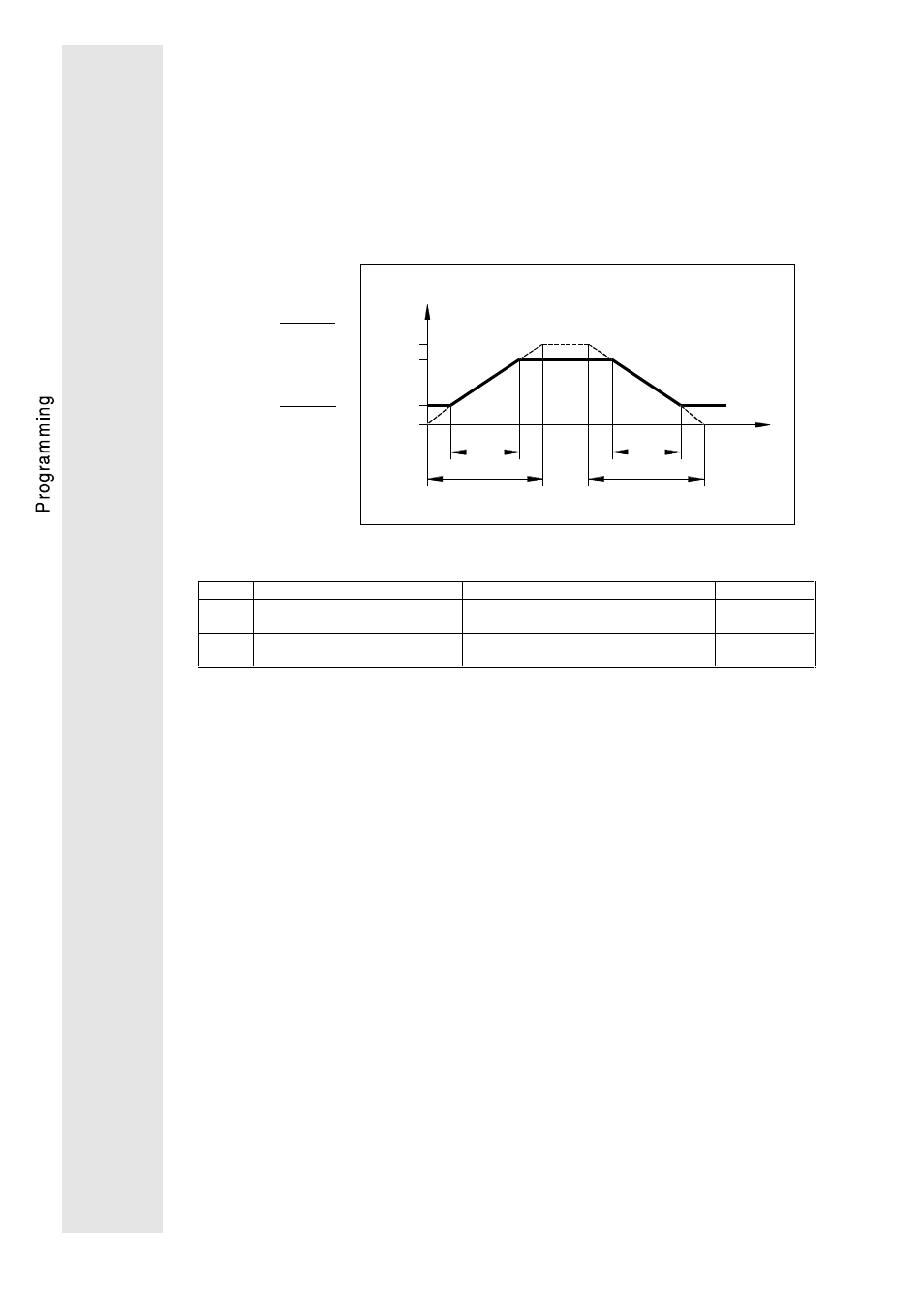

The acceleration and deceleration times refer to a change of the
field frequency from 0 to the maximum field frequency set under
C011. The times to be set are calculated as follows:
T = t
f
f - f
ir ir
dmax
d2 d1
⋅
T = t
f
f - f
if if
dmax
d2 d1
⋅
f /Hz
d
f
dmax
d2
f
fd1
0
tir tif
Tir Tif
t
Code Parameter Meaning Acceptance
C012 5.0s
0.0...990s Standard acceleration time for main set-
value ON-LINE
C013 5.0s
0.0...990s Standard deceleration time for main set-
value ON-LINE
For programming and activation of additional acceleration and
deceleration times see page 81.
For ramp generator of set-value 2 see page 66.
