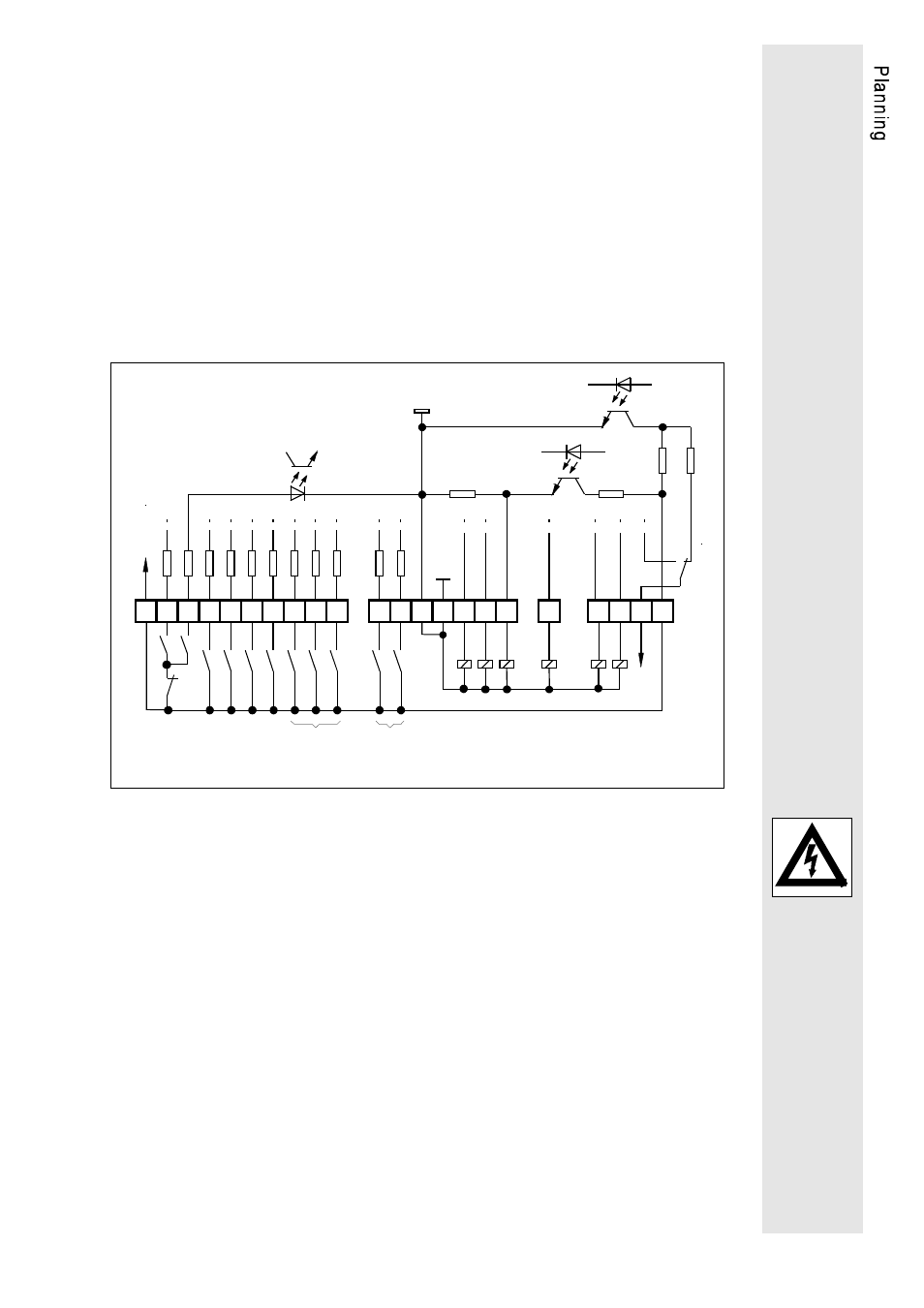

Internal voltage supply (15V)
Inputs:
Input voltage:
0 to 30 V
LOW signal:
0 to 5 V
HIGH signal: 13 to 30 V
Input current: for 15 V 5 mA per input
Outputs:
Maximum voltage supply:
30 V
Maximum output current: 50 mA per output external
resistor at least 300
Ω
for
5 V, e.g. relay
part no. 326 850)
A3 45 40 22
X2 X4
20 21 28 E1 E2 E3 E4 E5 E6 E7 E8 41 44 A1 A2 A4 59
X3
39
22k 10R
2.
7
k
10
k
+15V
100m
A
R L
GND
GND ext.
QSP
Ctrl.
enable DC brake
JOG Ti TRIP-
set/reset
TRIP
RDY
IMP
Qmin
Imax
RFG/O=I
S2
3k 3k 3k 3k 3k 3k 3k 3k 3k 3k
50m
A
50
m
A
50m
A
50
m
A
50
m
A
50
m
A
50
m
A
6 x f d
Caution: The internal 15 V supply may be loaded with a
maximum of 100 mA.
The terminals 39 and 40 must be linked in case
of internal 15 V supply.
