46

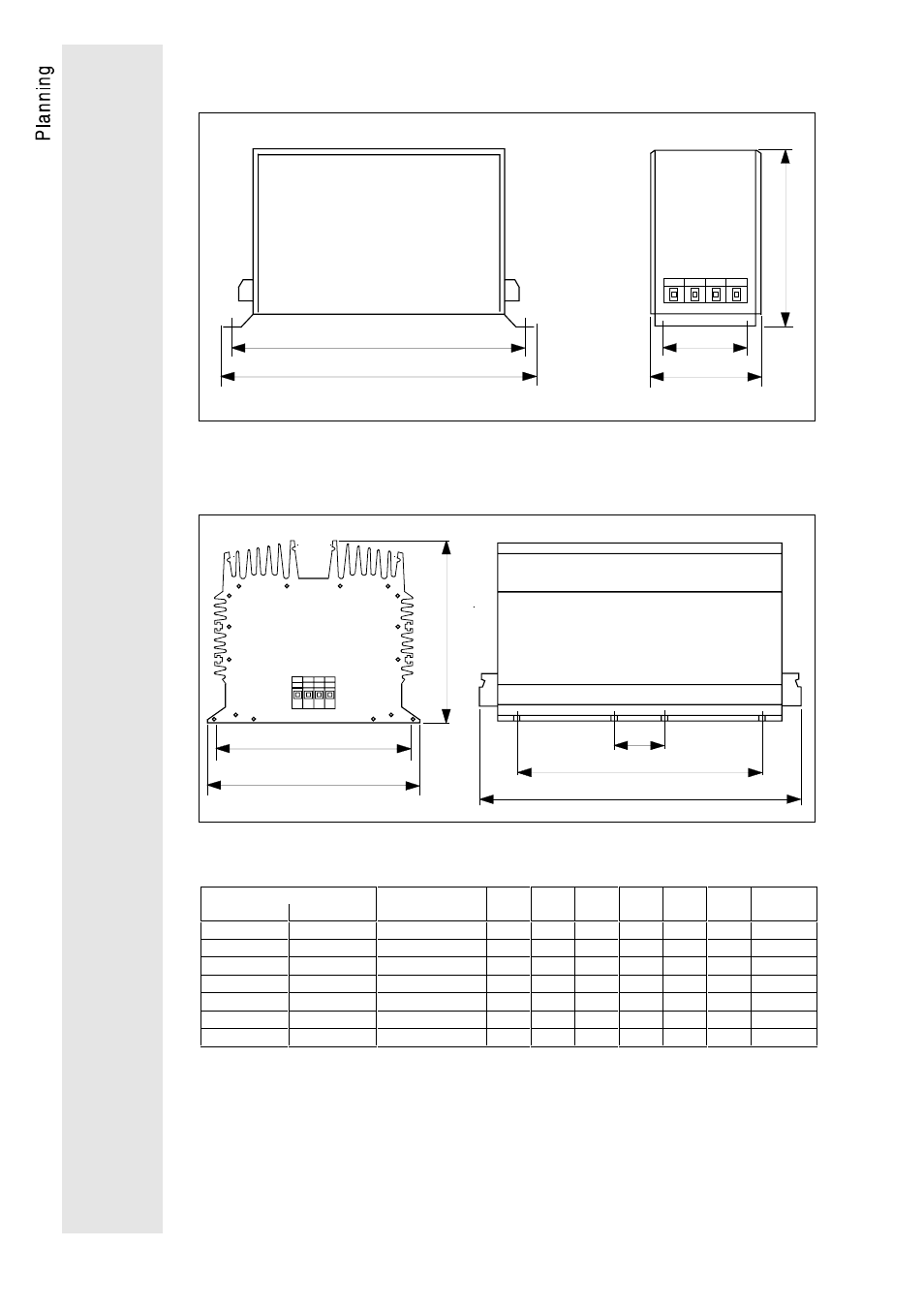

6.4.1 Technical data of motor supply filters
d
a
c
e
b
Design A
a
d
g
b
c
e
Design B
Filter type Order number a b c d e g Weight
Design Rated current mm mm mm mm mm mm kg
A 4.0 A EZS3-004A001 210 75 160 200 50
−
4.0
A 5.5 A EZS3-006A001 280 92 175 270 65 − 8.0
A 7.0 A EZS3-007A002 280 92 175 270 65
−
8.0
A 9.5 A EZS3-010A002 280 130 256 267 100 − 16.0
A 13.0 A EZS3-013A001 280 130 256 267 100
−
16.0
A 16.5 A EZS3-017A001 280 130 256 267 100 − 19.0
B 24.0 A EZS3-024A001 325 200 170 260 185 40.0 20.0
If you need a motor supply filter for higher currents, please contact
the factory.
