Page 26

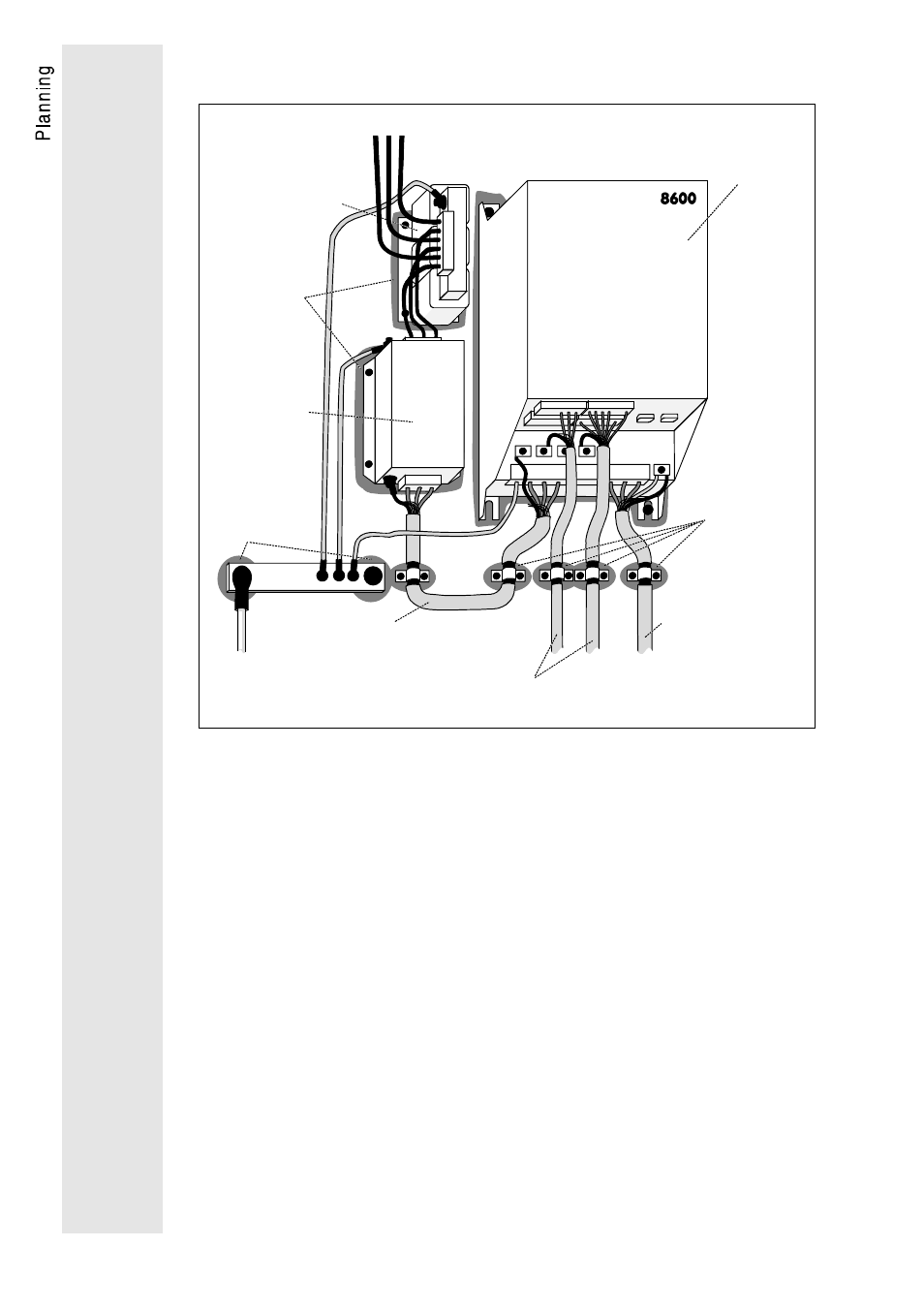

Part of the CE-typical drive system on mounting plate

Paint-free bare metal
contact surfaces

PE bar

PE connection

Mains choke

Mains filter

Controller

L1 L2 L3 Connection mains fuse

Cables betweem mains filter
and controller longer than 0.3 m
must be screened

Screened motor cable,
connect screen to PE
also at the motor side,
large cross-section
contact to the motor
housing required

Screened
control cables

Conductive
connection between
mounting plate and
PE required

Paint-free
bare metal
contact
surfaces

PE L1 L2 L3

U V W

LOAD

LINE

Paint-free
connection of a
large surface
to the mounting
plate

4.2.4 Switching on the motor side

Switching on the motor side is permissible for an emergency stop
as well as during normal operation.

Please note that when switched with the controller enabled, this
may cause the fault message OC1 (short circuit/earth fault). For
long motor cables, the fault current on the interfering cable
capacitances can become so large that the short circuit monitoring
of the device is triggered. In these cases, a motor filter is necessary
to reduce the fault currents (see page 43).
