17

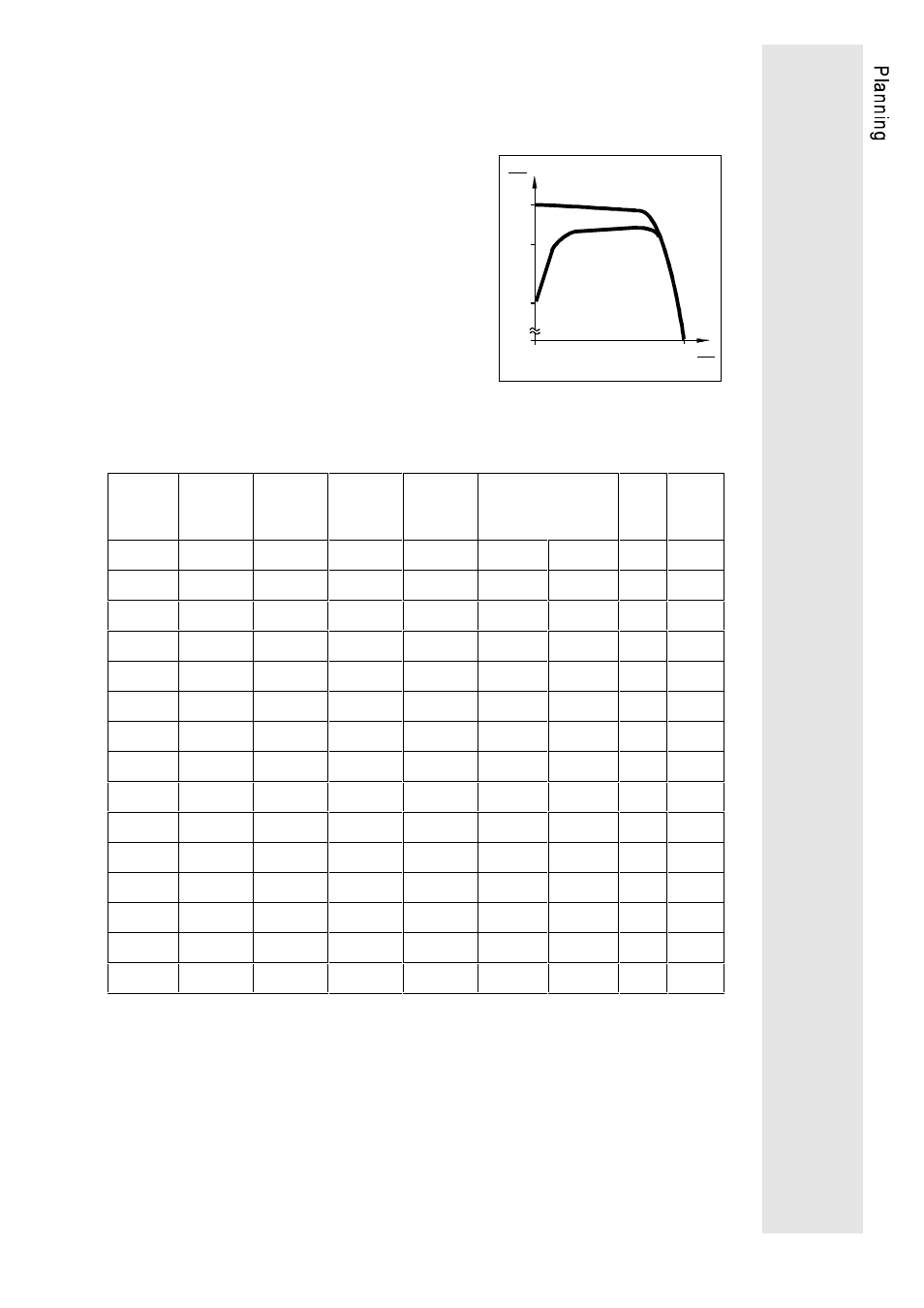

3.2 Applications with high overload,
peak torque up to 170% of the rated motor torque
−
For applications which require a standard
overload behaviour of an inverter (e.g. general
mechanical engineering, hoists, travelling drives,
calenders).
−
The inverter provides 150% of the rated torque for
a maximum of 30s.
In the event of cyclic overload, the ratio of overload
time and cycle time must not exceed 0.1.
−
For this application, the monitoring of the output
current is set to operation with increased power
using the codes C119 and C120 (see page 97).
−
Please note that a maximum ambient temperature
of 45°C is permissible.
Type Order no. Rated
motor
power
kW
Rated
output
current
A
max.
output
current
A for 30s
Output power
kVA
400V 50Hz 480V 60Hz
Mains
current
A
Power
loss
W
8601 33.8601_E 1.5 4.0 6.0 2.77 3.33 4.0 140
8602 33.8602_E 2.2 5.3 7.8 3.67 4.41 5.3 155
8603 33.8603_E 3.0 7.4 11.0 5.13 6.15 7.4 180
8604 33.8604_E 4.0 10.1 15.0 7.0 8.4 9.4 210
8605 33.8605_E 5.5 12.7 19.0 8.8 10.6 11.8 235
8606 33.8606_E 7.5 17.6 26.0 12.2 14.6 16.3 290
8607 33.8607_E 11.0 22.7 33.0 15.7 18.9 20.7 340
8608 33.8608_E 15.0 31.7 47.0 22.0 26.3 28.0 440
8609 33.8609_E 18.5 43.2 64.0 29.9 35.9 38.0 560
8610 33.8610_E 22.0 53.3 79.0 36.9 44.3 47.0 670
8611 33.8611_E 30.0 63.5 94.0 44.0 52.8 55.0 775
8612 33.8612_E 37.0 81.0 120.0 56.1 67.3 71.0 960
8613 33.8613_E 45.0 101.0 150.0 70.0 84.0 84.0 1175
8614 33.8614_E 55.0 120.0 178.0 83.1 99.8 105.0 1375
8615 33.8615_E 75.0 148.0 220.0 103.0 123.0 129.0 1675
