Wiring the device modules
Memory modules
6
l
79 EDK94SH104 DE/EN/FR/ES/IT 5.1
SSP94M1001

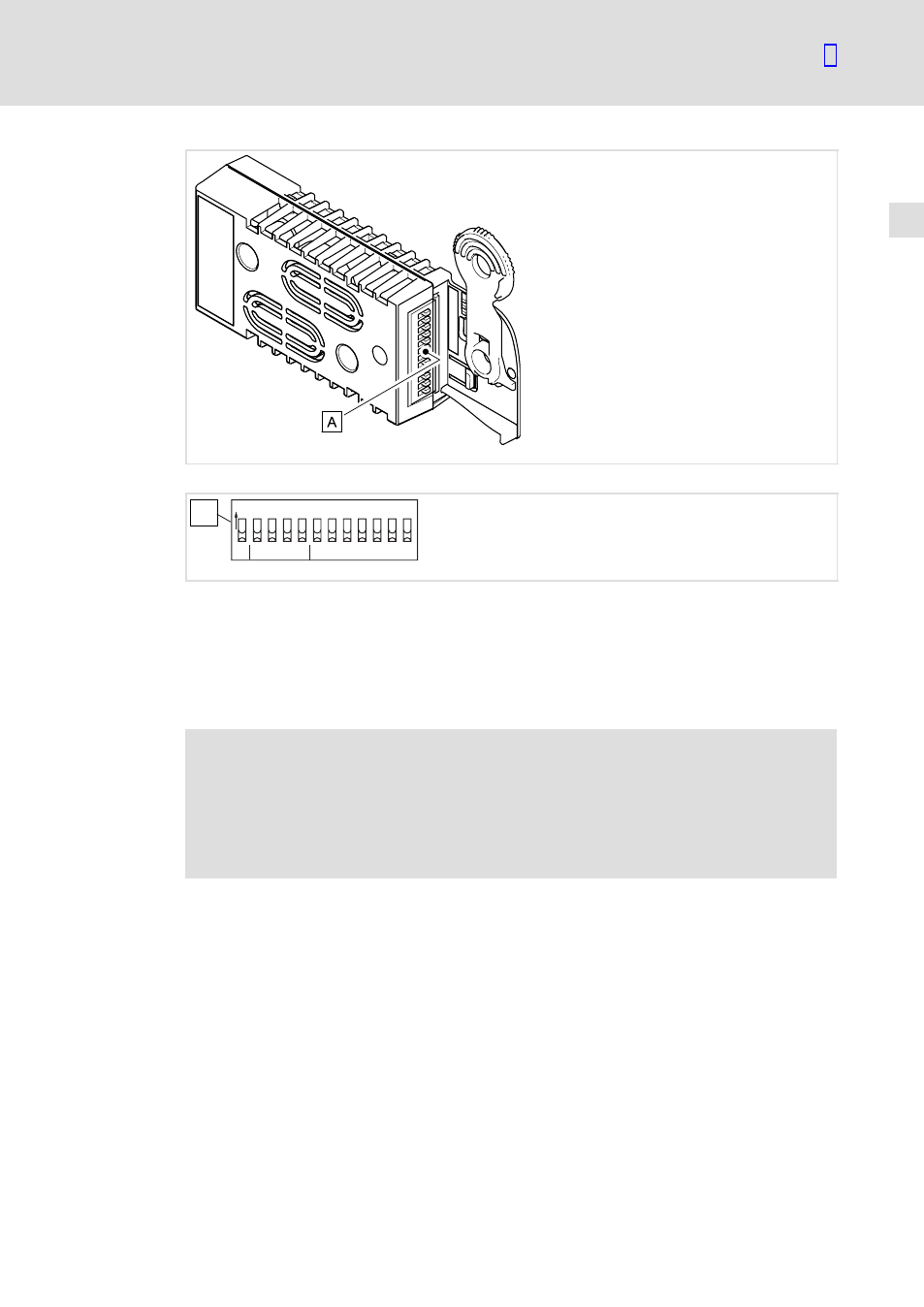

Fig. 6−6 Memory module with DIP switch (as of order designation E94AYM22)
Baud CAN Address
O
N c d b a 64 32 16 8 4 2 1 A
9400CAN003
Fig. 6−7 Arrangement and labelling of the DIP switches
For the DIP switches that are placed at the front
ƒ the node address (labelling "1" ... "64") and
ƒ baud rate (labelling "a" ... "d")
can be set.
)
Note!
If all address switches adopt the "OFF" position when the basic device is
switched on, the configurations of codes C00350 (nodes address) and C00351
(baud rate) apply.
Switch the voltage supply of the basic device off and then on again to activate
altered settings.
Setting the node address
The node address of the drive is calculated from the sum of all address switches in the "ON"
position.
