Câblage des modules
Modules de communication
l
115
EDK94SH104 DE/EN/FR/ES/IT 5.1
CANopen
E94YCCA001B

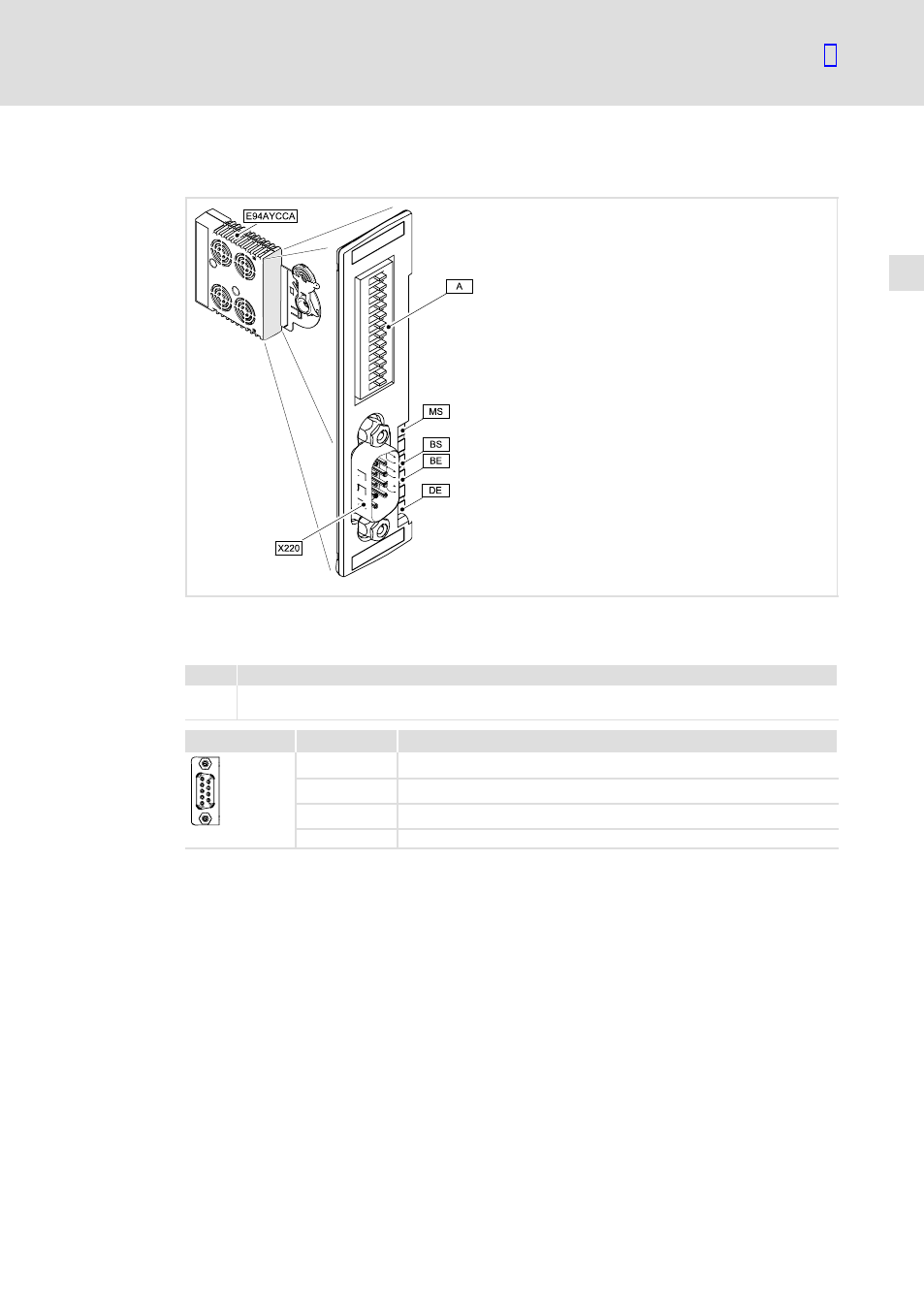

Fig.6−2
Module de communication E94AYCCA (CANopen)
Raccordements
Pos.
Description
X220
Raccordement CAN
Version : connecteur Sub−D à 9 broches
X220
Inscription
Description
Pin 2
CAN−LOW (BAS)
Pin 3
CAN−GND
Pin 7
CAN−HIGH (HAUT)
9400SSP000X1
(boîtier)
CAN−Shield
