Gerätemodule verdrahten
Kommunikationsmodule
6
l
29
EDK94SH104 DE/EN/FR/ES/IT 5.1
6
Gerätemodule verdrahten
Abhängig von der Geräteausführung oder der Applikation ist das Gerät mit Gerätemodu-
len bestückt. Die möglichen Module sind hier kurz beschrieben. Umfassende Informatio-
nen enthält die zugeordnete Dokumentation.
6.1
Kommunikationsmodule
Diese Module in Schacht
þ MXI1 oder þ MXI2 o MMI o MSI verwenden.
Ethernet
E894YCEN001A

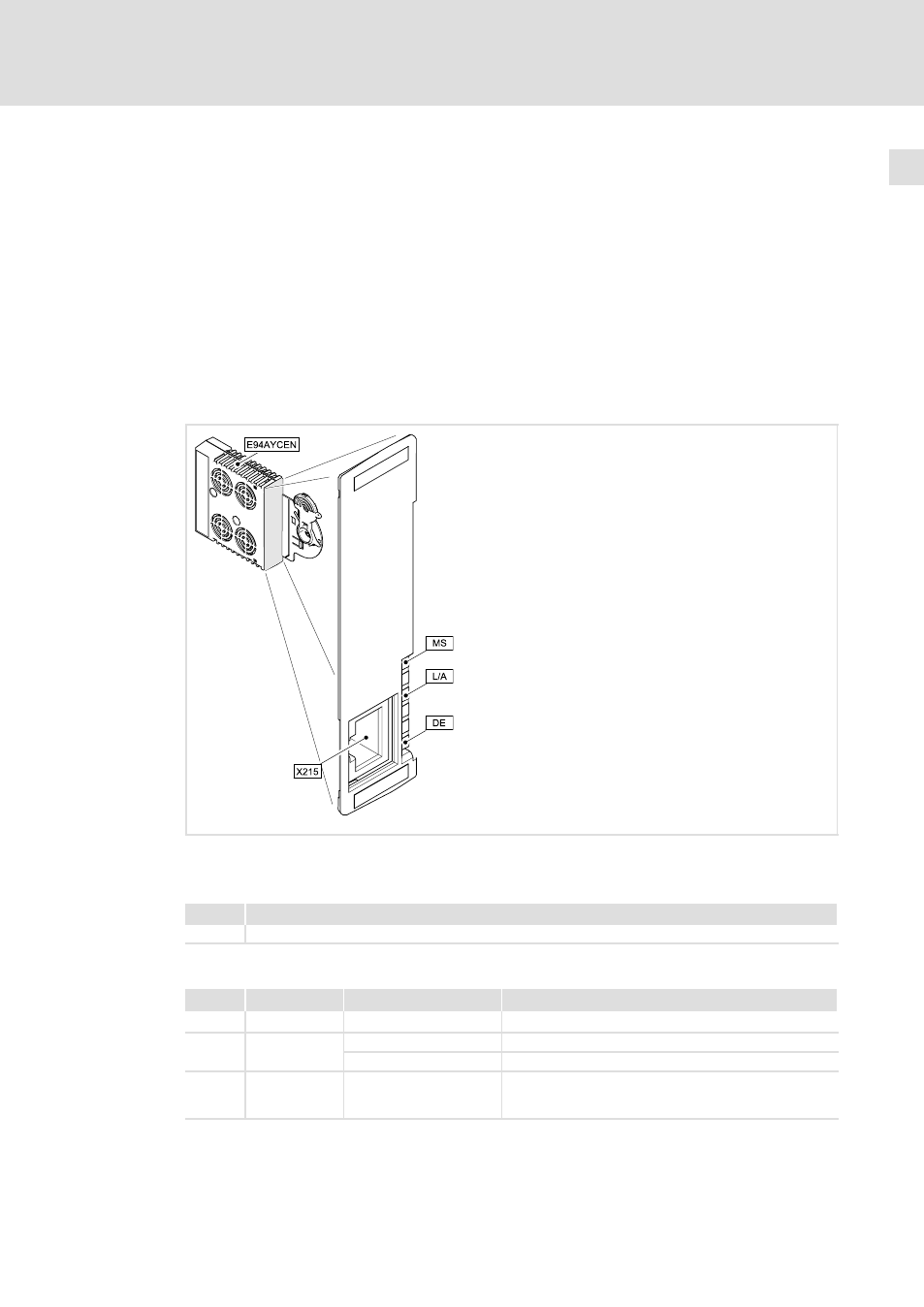

Abb. 6−1
Kommunikationsmodul E94AYCEN (Ethernet)
Anschlüsse
Pos.
Beschreibung
X215
Ethernet−Anschluss, RJ45−Buchse nach EN 50173
Anzeigen
Pos.
Farbe
Zustand
Beschreibung
MS
grün
an
Das Kommunikationsmodul ist mit Spannung versorgt.
L/A
grün
an
Die Verbindung zum Ethernet−Netzwerk besteht.
blinkt
Es werden Daten gesendet oder empfangen.
DE
rot
an
Das Kommunikationsmodul wird vom Grundgerät nicht
akzeptiert (siehe Hinweise in der Anleitung zum Grund-
gerät).
