Cablear módulos del equipo – Lenze E94ASHE Axis Single Drive 32-104A User Manual
Page 158
Cablear módulos del equipo
Módulos de comunicación
l
158
EDK94SH104 DE/EN/FR/ES/IT 5.1
CANopen
E94YCCA001B

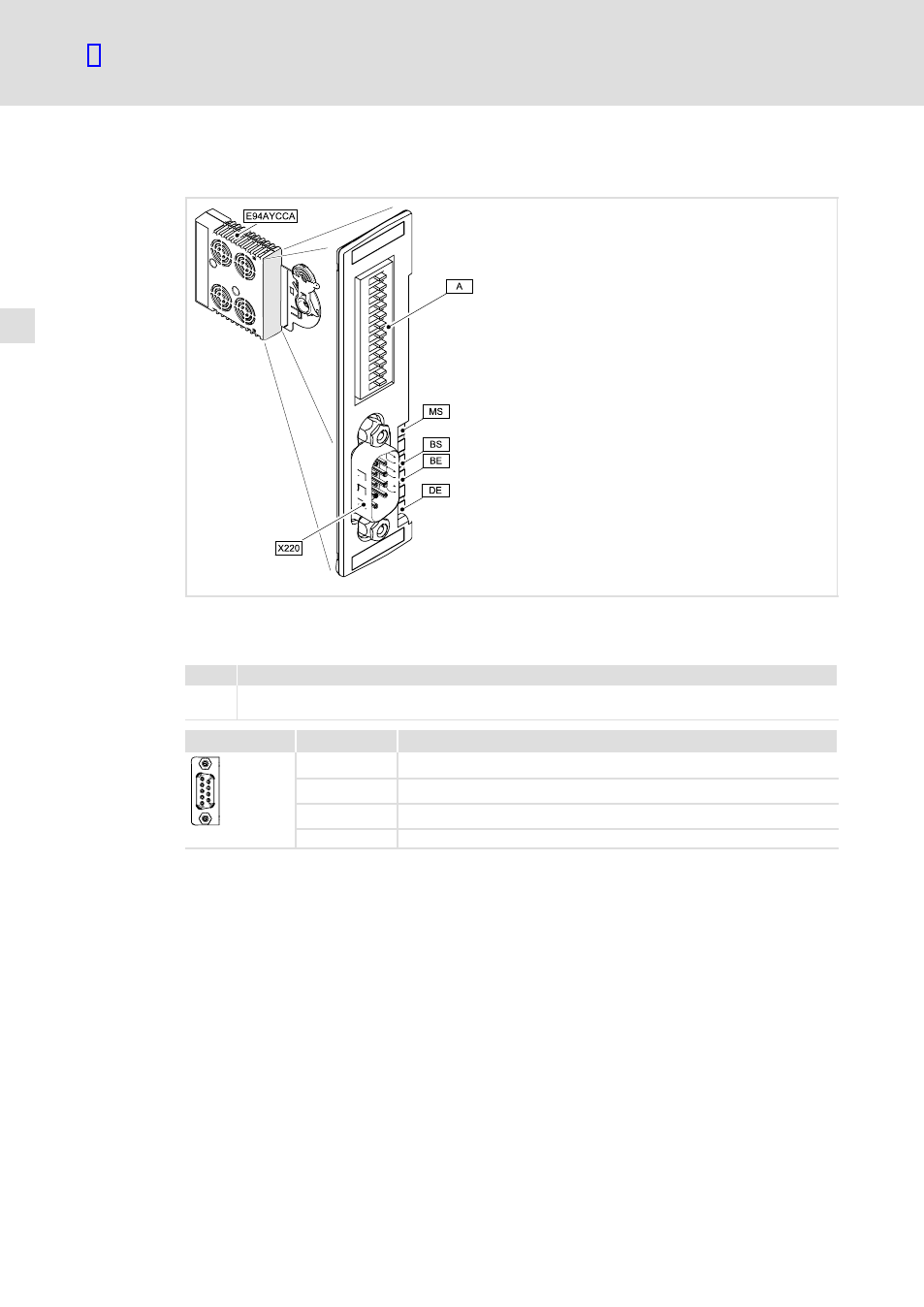

Fig.6−2
Módulo de comunicación E94AYCCA (CANopen)
Conexiones
Pos.
Descripción
X220
Conexión para CAN
Ejecución: Conector Sub−D, 9 polos
X220
Marcación
Descripción
Pin 2
CAN−LOW
Pin 3
CAN−GND
Pin 7
CAN−HIGH
9400SSP000X1
(carcasa)
CAN−Shield
