Wiring the device
Power terminals
5
l
66 EDK94SH104 DE/EN/FR/ES/IT 5.1

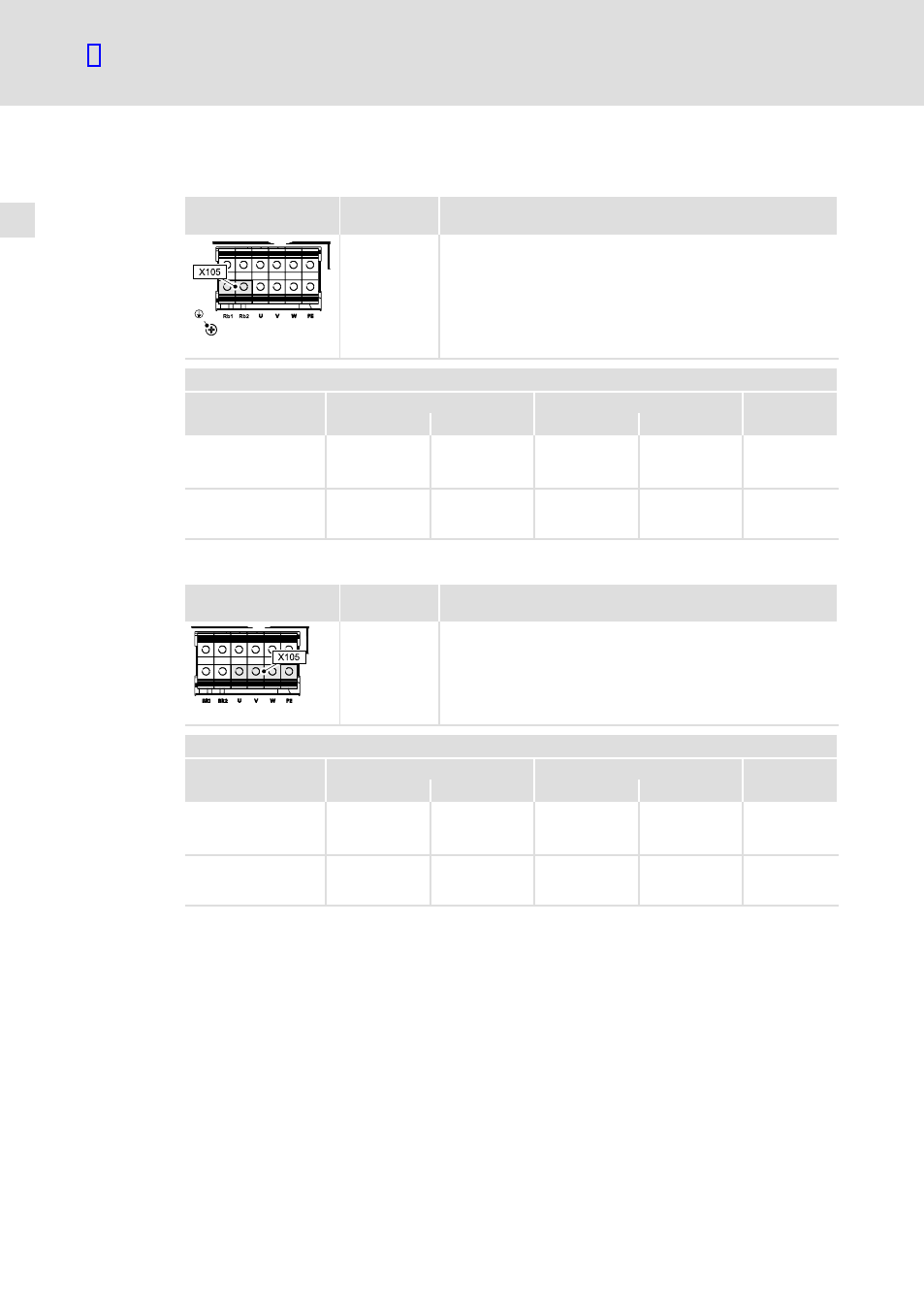

External brake resistor
Terminal X105
(left part) Labelling Description
Rb1
Rb2 External brake resistor
SSP94X6105
+ Connection for the PE conductor with M5 ring cable lug
Terminal data
Max. conductor cross−section Tightening torque !
[mm 2 ] [AWG] [Nm] [lb−in]
Device size 6:
Flexible
With wire end ferrule
50 0 10 88.5
Hexagon
socket 5
Device size 7:
Flexible
With wire end ferrule
95 000 14 124
Hexagon
socket 5
Motor
Terminal X105
(right part) Labelling Description
U
V
W Motor phases
SSP94X6105
PE Connection for the motor−side PE conductor
Terminal data
Max. conductor cross−section Tightening torque !
[mm 2 ] [AWG] [Nm] [lb−in]
Device size 6:
Flexible
With wire end ferrule
50 0 10 88.5
Hexagon
socket 5
Device size 7:
Flexible
With wire end ferrule
95 000 14 124
Hexagon
socket 5
