Gerätemodule verdrahten – Lenze E94ASHE Axis Single Drive 32-104A User Manual
Page 30
Gerätemodule verdrahten
Kommunikationsmodule
l
30
EDK94SH104 DE/EN/FR/ES/IT 5.1
CANopen
E94YCCA001B

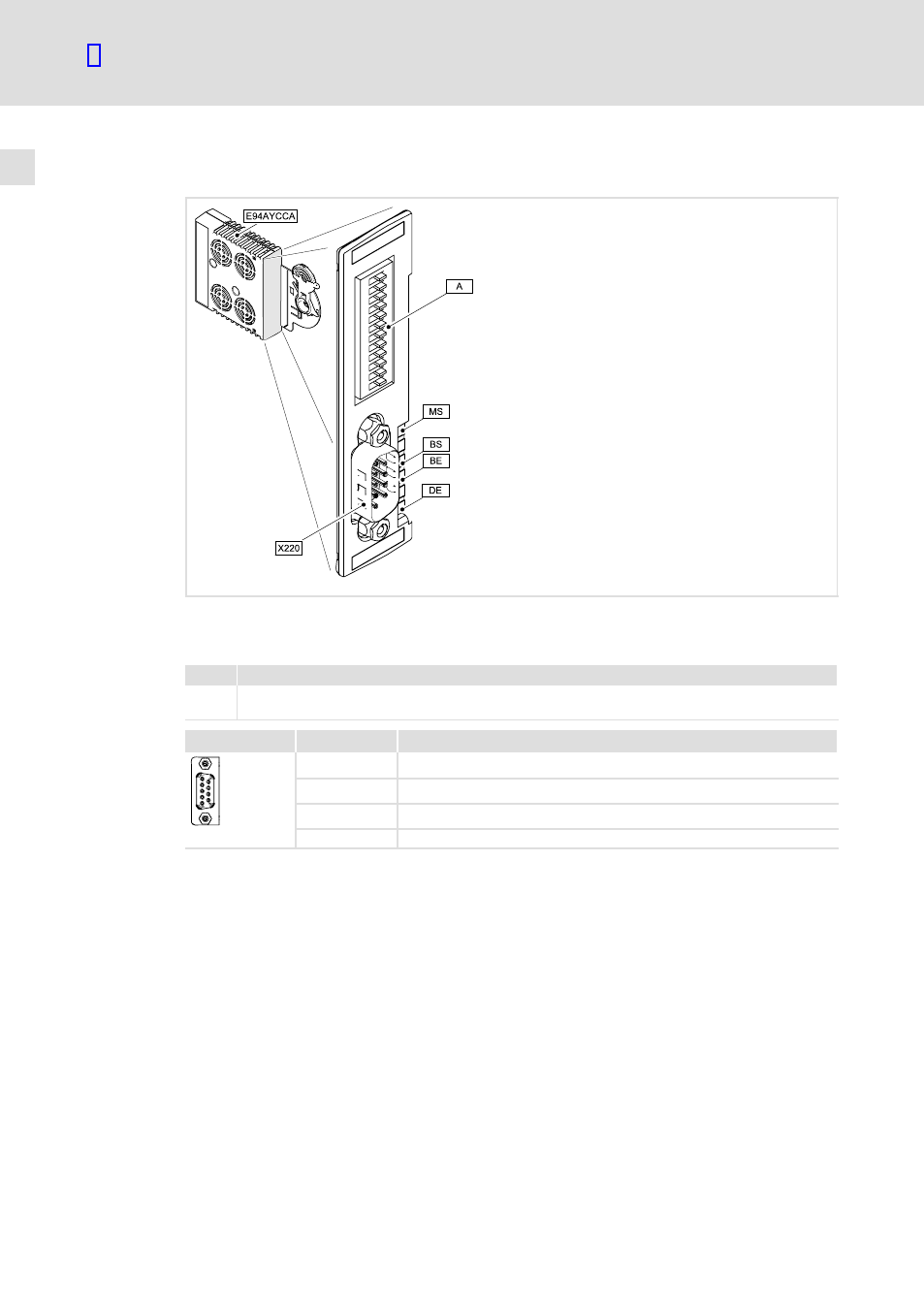

Abb. 6−2
Kommunikationsmodul E94AYCCA (CANopen)
Anschlüsse
Pos.
Beschreibung
X220
Anschluss für CAN
Ausführung: Sub−D−Stiftleiste, 9−polig
X220
Beschriftung
Beschreibung
Pin 2
CAN−LOW
Pin 3
CAN−GND
Pin 7
CAN−HIGH
9400SSP000X1
(Gehäuse)
CAN−Shield
