SQS-242 Operating Manual
Baud Rate: Sets the baud rate used for serial communications.
Ethernet Ports: Local Port sets the TCP/IP port used by the SQS-242 software for
Ethernet communications (1001 is a typical value, -1 for no Ethernet). When
communications is established, Remote Port displays theTCP/IP port of the remote
computer communicating with the SQS-242 software.
Ethernet Name: Displays the name of the local and remote computers, as set in
their Windows, My Computer dialog box.
Ethernet IP Address: Displays the IP address (xxx.xxx.xxx.xxx) of the local and
remote computers.
Receive Data: Displays the Query and Update requests received from the Comm
and Ethernet port. See
for a description of the serial
communications protocol.
Transmit Data: Displays the response to Query and Update requests received
from the Comm and Ethernet port.
NOTE: The Comm tab does not monitor communications with the PLC.
3.5.5 Edit: Security
The Security menu assigns Users, their Password, and their Access Level. It also
provides a flexible way to assign program functions to different Access Levels.
NOTE: The Security dialog box is available only to users with Supervisor Access.
3.5.5.1 Users Tab

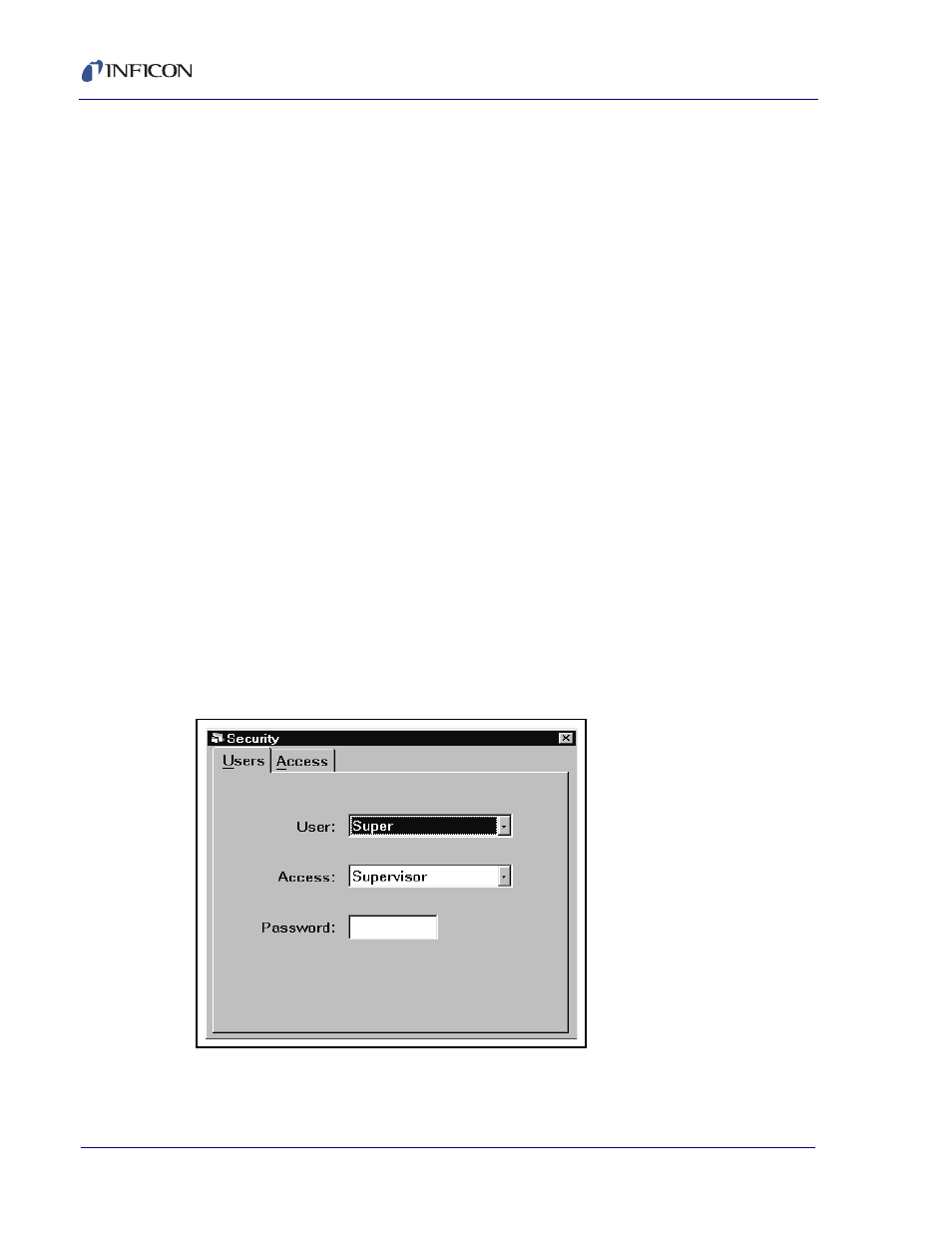

Figure 3-25 Users tab
