SQS-242 Operating Manual
3.2 Installation and Registration
The SQM-242 card can be installed before or after the SQS-242 software. Consult
the separate SQM-242 card User’s Guide for installation information. To install the
program, insert the disk or CD-ROM. Click Start, then Run, then type :Setup
(where is the drive you are using). Click OK to begin installation, and follow the
on-screen prompts. When installation is complete, you may be prompted to restart
the computer.
To start the SQS-242 program, click Start >> Programs >> INFICON >> SQS-242.
If you see this Registration dialog box appear (see
Figure 3-3 .), you have a older
version of the SQS-242 software. contact INFICON for the latest version which
removes this registration requirement.

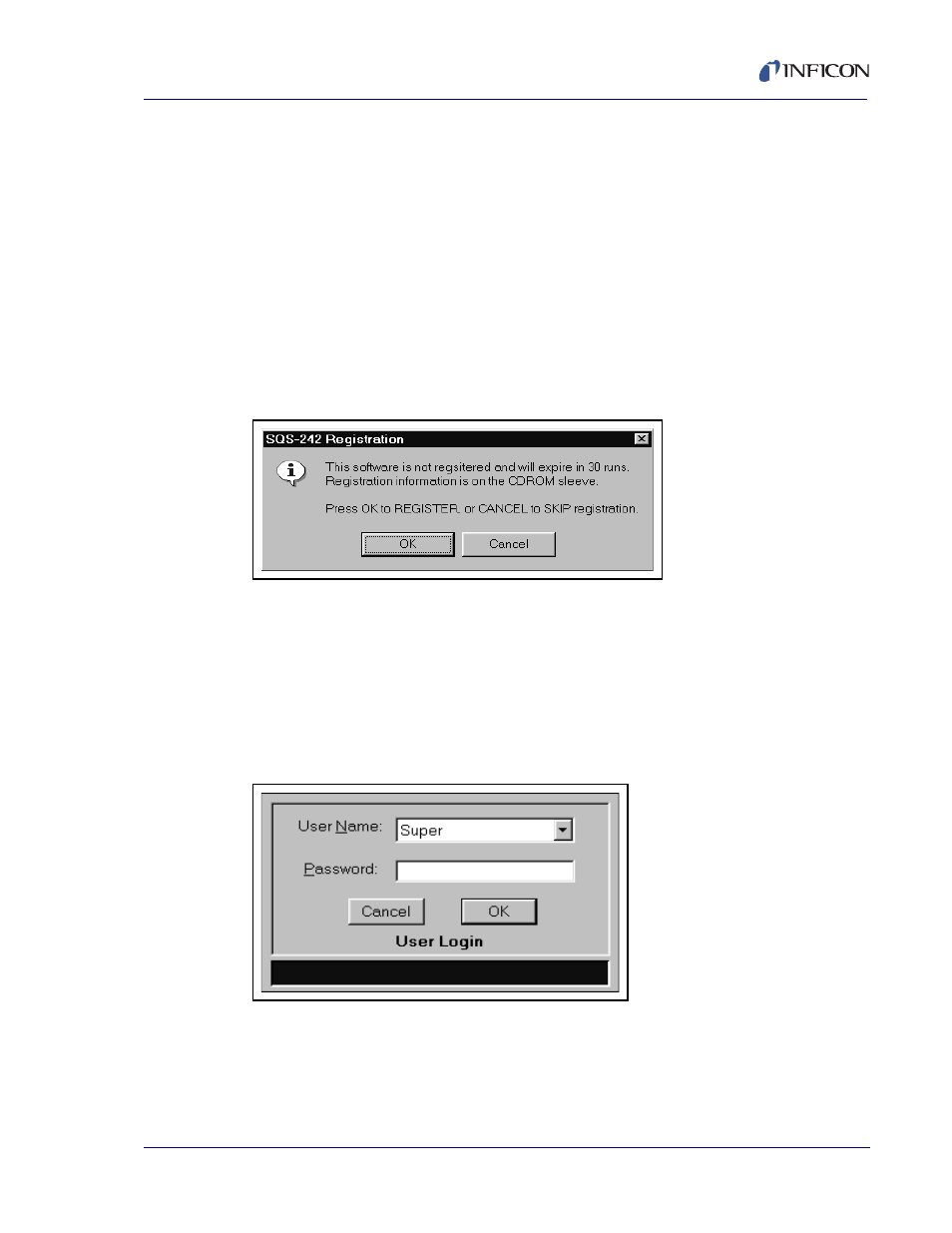

Figure 3-3 Registration Dialog Box
3.3 Operation
When the program is first started, it displays a progress bar during startup, then a
User Login dialog box (see
Figure 3-4 ).
NOTE: The SQS-242 software ships with one pre-assigned user. The user name
is Super, with no Password.
Figure 3-4 User Name
Select a User Name from the drop down box, type in the Password, then click OK
to start the program.
