STM-2XM Operating Manual
3.2 Programming
3.2.1 Main Menu
To program STM-2XM, press PROG/ENTER. The MAIN MENU will display.

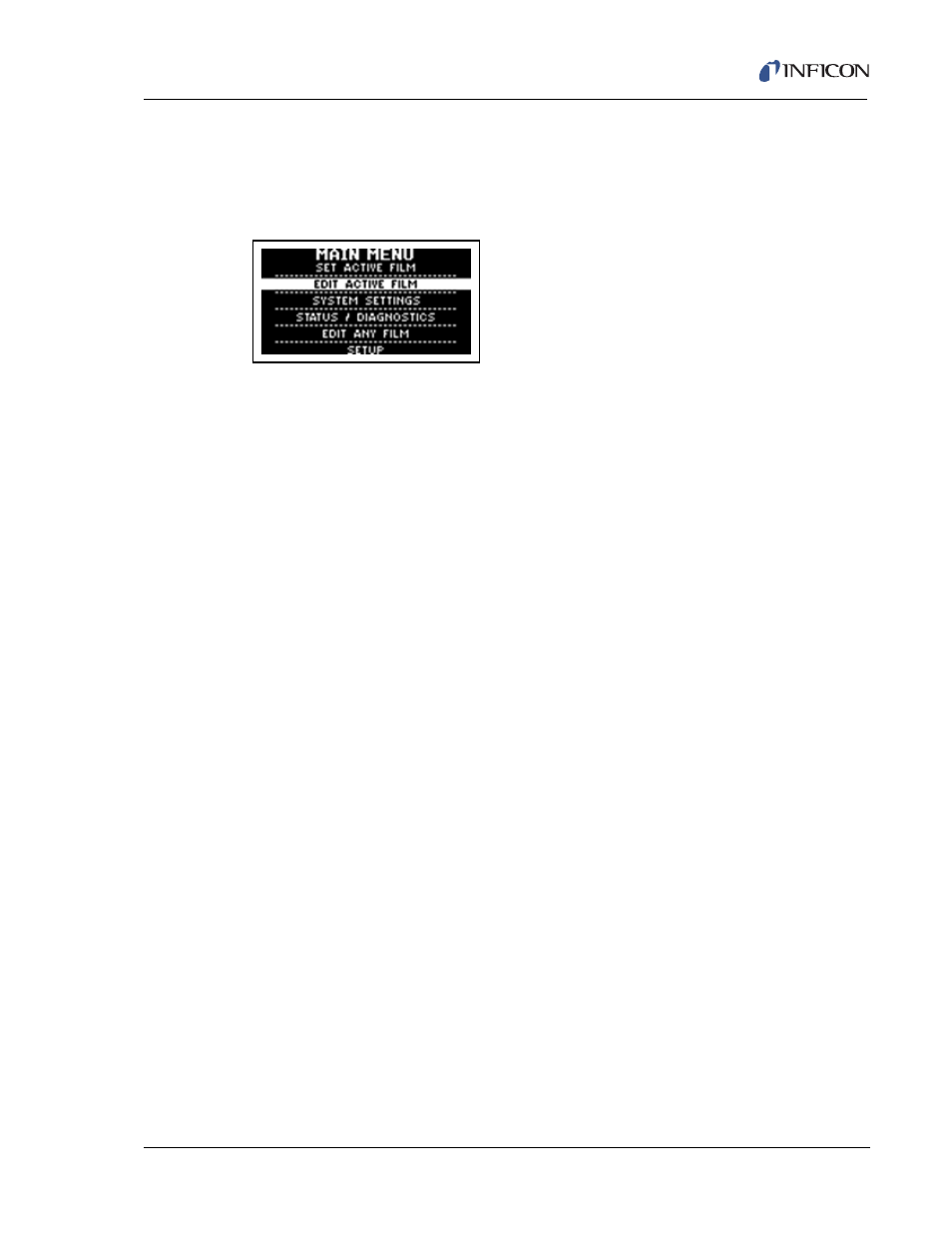

Figure 3-8 Main menu
Use the control knob to select a menu item, then press PROG/ENTER. Press
CANCEL/BACK to return to the Runtime screen.
Set Active Film . . . . . . . . . . . . . . . . 1 to 15. Sets the active film.
Edit Active Film . . . . . . . . . . . . . . . Lists programmable parameters for the
currently active film. For a description of the
settings on the film page, see
.
System Settings . . . . . . . . . . . . . . . Displays the SYSTEM PARAMS menu. For a
description of the system settings, see
.
Status/Diagnostics . . . . . . . . . . . . . Displays STM-2XM status and diagnostics.
For example, displays the raw frequency of
the crystal, the status of the inputs and
outputs, and other useful information.
Edit Any Film . . . . . . . . . . . . . . . . . Displays a selection box that allows the
choice of the film to edit, and then displays
the settings menu for the selected film.
Setup . . . . . . . . . . . . . . . . . . . . . . . . Displays the HARDWARE SETUP menu,
where STM-2XM system hardware is
programmed, including sensors, shutters,
tooling, and relays. The settings on this menu
must be accurate to allow STM-2XM to
operate properly. For example, if STM-2XM
is programmed for a substrate shutter, and
one does not exist in the system, STM-2XM
will provide false readings because it will not
count any material accumulated on the
substrate during the Ready phase. For a
description of hardware settings, see
.
