Section 5.

Wheel Assembly, Tires, and Axle

Model 6036 S/N 9B0499 and Before

5-22

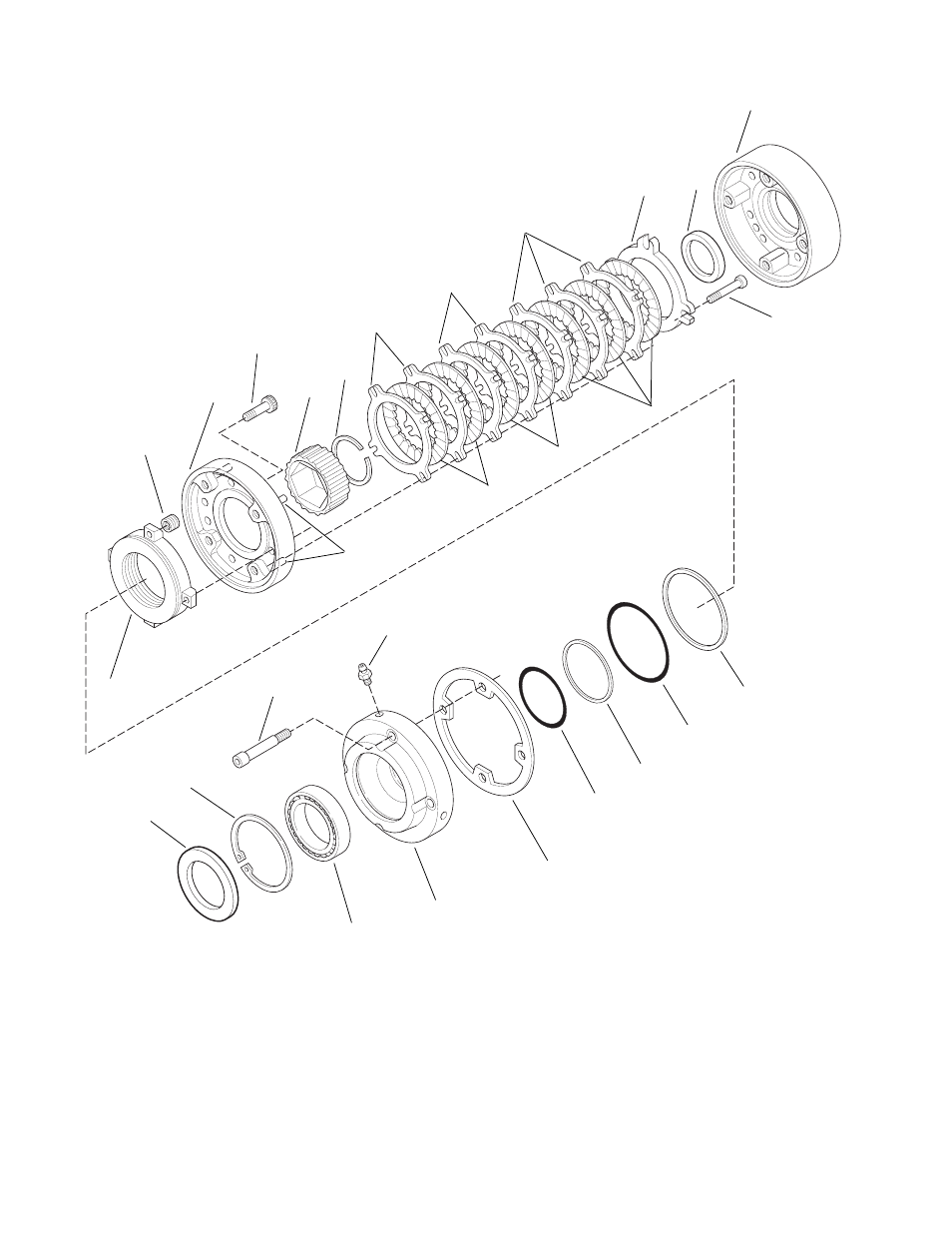

Fig. 5.13 Exploded View of Park Lock

1.

Screw, socket head cap (4)

2.

Plate, cover

3.

Spline, outer

4.

Spring, red (12)

5.

Plate, pressure

6.

Plate, spring

7.

Screw, socket head cap (4)

8.

Disc, rotor (7)

9.

Plate, lining (7)

10. Plate, thrust
11. Bolt, socket head shoulder (4)
12. Screw, bleeder

19. Piston
20. Ring, backup
21. Ring, backup
22. O-ring
23. O-ring
24. Pin, dowel (4)

13. Ring, retainer
14. Bearing
15. Ring, retainer
16. Seal, oil
17. Seal, oil
18. Seal, case (2)

1

4

5

6

7

8

8

8

9

9

9

10

11

12

2

3

13

14

15

16

17

18

19

20

21

22

23

24

PA0281
