Model 6036 S/N 9B0499 and Before 3-3
Section 3. Boom
CAPSCREW ENDS TO BE FLUSH TO
0.19" (5 mm) RECESSED IN WEAR
PAD INSERT
INTERMEDIATE
BOOM
CAPSCREW ENDS TO BE FLUSH
TO 0.19" (5 mm) RECESSED IN
WEAR PAD INSERT
INNER BOOM
PAD, INSERT (1),
LOCK WASHER (2),
FLAT WASHER (2),
3/8-16 X 7/8"
CAPSCREW (2)
BASE END PIN
EXTEND/RETRACT
CYLINDER
OUTER BOOM
3. Working from the rear boom cover opening,
record the number of shims beneath each wear
pad as you remove the side and top wear pads
from intermediate boom, Fig. 3.6.

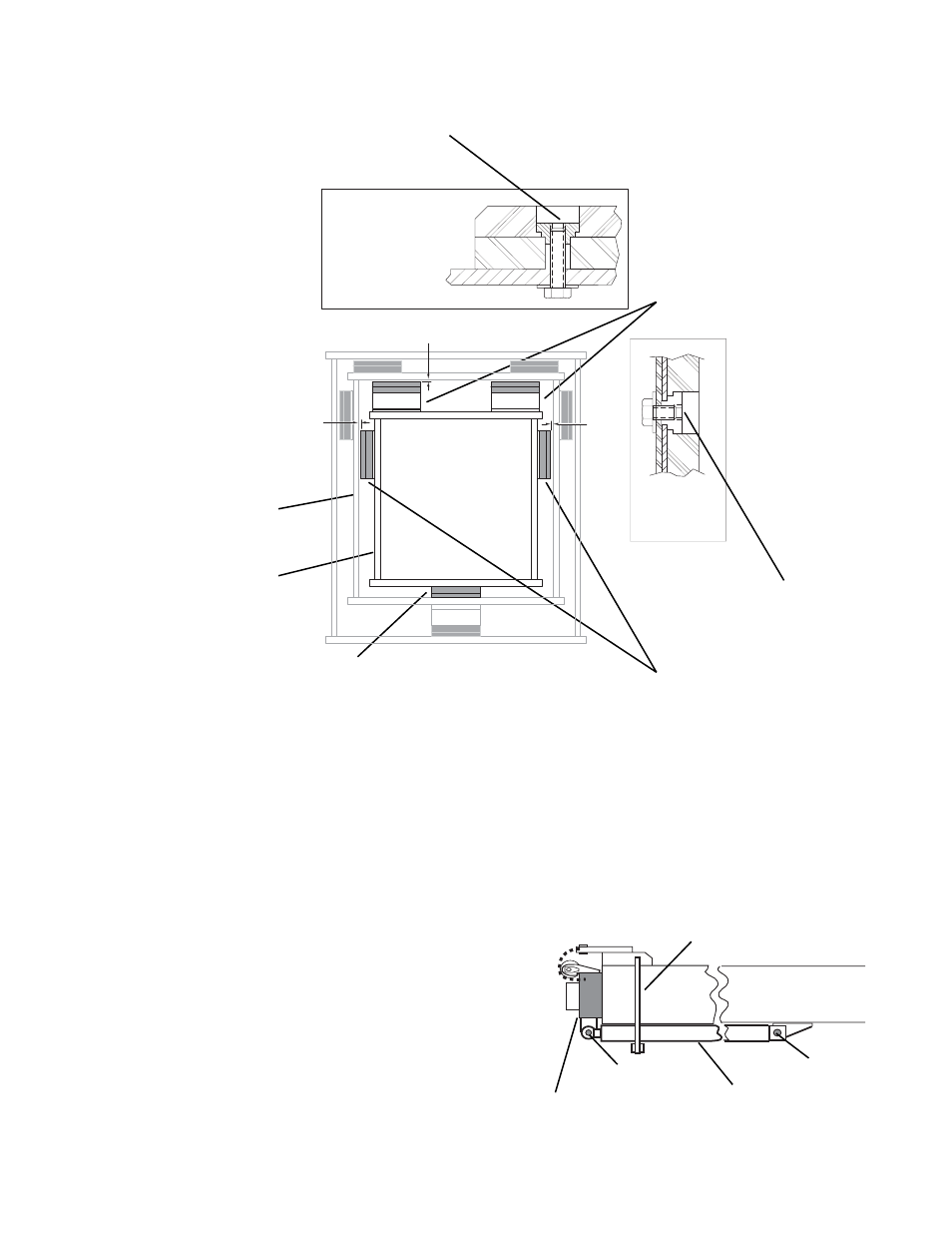

Fig. 3.4 Extend/Retract Cylinder
13. Check and adjust chain tension as described in
paragraphs 3.1.6 and 3.1.7.
14. Refer to Fig. 3.1 and install the rear boom
cover.
3.1.2 Intermediate Boom Replacement
a Removal
1. Refer to paragraph 3.1.1.a and remove the
inner boom.
2. Remove the rod end pin, Fig. 3.4, and retaining
rings that attach the rod end of the boom
extend/retract cylinder to the intermediate
boom. Lower the rod end to the anti-buckle
bar.
Fig. 3.3 Rear Wear Pads Attached to Inner Boom
GAP MUST BE 0.07 TO
0.13" (1,8 TO 3,3 mm)
GAP MUST BE 0.07 TO
0.13" (1,8 TO 3,3 mm)
ANTI-BUCKLE BAR
INTERMEDIATE
BOOM
ROD END PIN
PAD, #14 GA SHIM, INSERT (2),
LOCK WASHER (4),
FLAT WASHER (4),
3/8-16 X 3/4"
CAPSCREW (4)
PAD, SPACER, INSERT (2),
LOCK WASHER (6),
FLAT WASHER (6),
3/8-16 X 1-3/4"
CAPSCREW (6),
14 GA SHIM
MA0031
MA0041
