Page 257
Section 10.
Electrical System
Model 6036 S/N 9B0499 and Before
10-63
f.
Installation
1.
Lower the pump and motor assembly into
position and secure to machine frame.
2.
Connect supply and pressure hydraulic hoses
to appropriate ports in pump (2, Fig. 10.68).
3.
Reconnect wiring to solenoid and motor.
4.
Replace hydraulic tank cover.
5.
Position the appropriate yellow ground wire on
the end head assembly (2) and secure with
screw.
6.
Position the appropriate yellow ground wire on
the solenoid (4) and secure with nut.
7.
Position the red electrical cable on the sole-
noid (4) and secure with nut.
8.
Connect negative (–) cable (2, Fig. 10.38) to
batteries.
10.13.3 Steering and Emergency
Hydraulic Pump
(S/N 7P0014 thru 9B0499)
The emergency hydraulic pump (3, Fig. 10.69)
performs three functions:
• When starting the engine, the emergency
steer pump supplies oil pressure as the
engine is being started;
• When oil pressure at the engine rises above
4 psi (0,3 bar), the emergency steer pump
ceases operation because the engine is
turning fast enough for the tandem pump to
supply sufficient hydraulic oil pressure for
forklift operation.
• If engine oil pressure again falls below 4 psi
(0,3 bar), the switch will close and the
emergency steer pump will resume operation
for as long as the battery has sufficient
charge.
a.
Removal
1.
Disconnect negative (–) cable (2, Fig. 10.38)
from the batteries.
2.
Remove hydraulic tank cover.
3.
Disconnect red electrical cable from solenoid
(4, Fig. 10.69) by removing nut.
4.
Tag and disconnect yellow ground wire from
solenoid (4) by removing nut.
5.
Tag and disconnect yellow ground wire from
end head assembly (2) by removing screw.
6.
Tag, disconnect, and plug the hydraulic supply
hose at the pump. Cap or plug the hose end
and pump ports.
7.
Tag, disconnect, and plug the hydraulic
pressure hose at the pump. Cap or plug the
hose end and pump ports.
8.
Prepare to remove pump and motor assembly
by supporting assembly while an assistant
removes two 3/8-16 UNC hex head
capscrews.
9.
Lift assembly from the forklift.
b. Disassembly
1.
Disconnect black electric terminal cable (7,
Fig. 10.69) by removing nuts at the solenoid
(4) and at the housing of the motor (1).

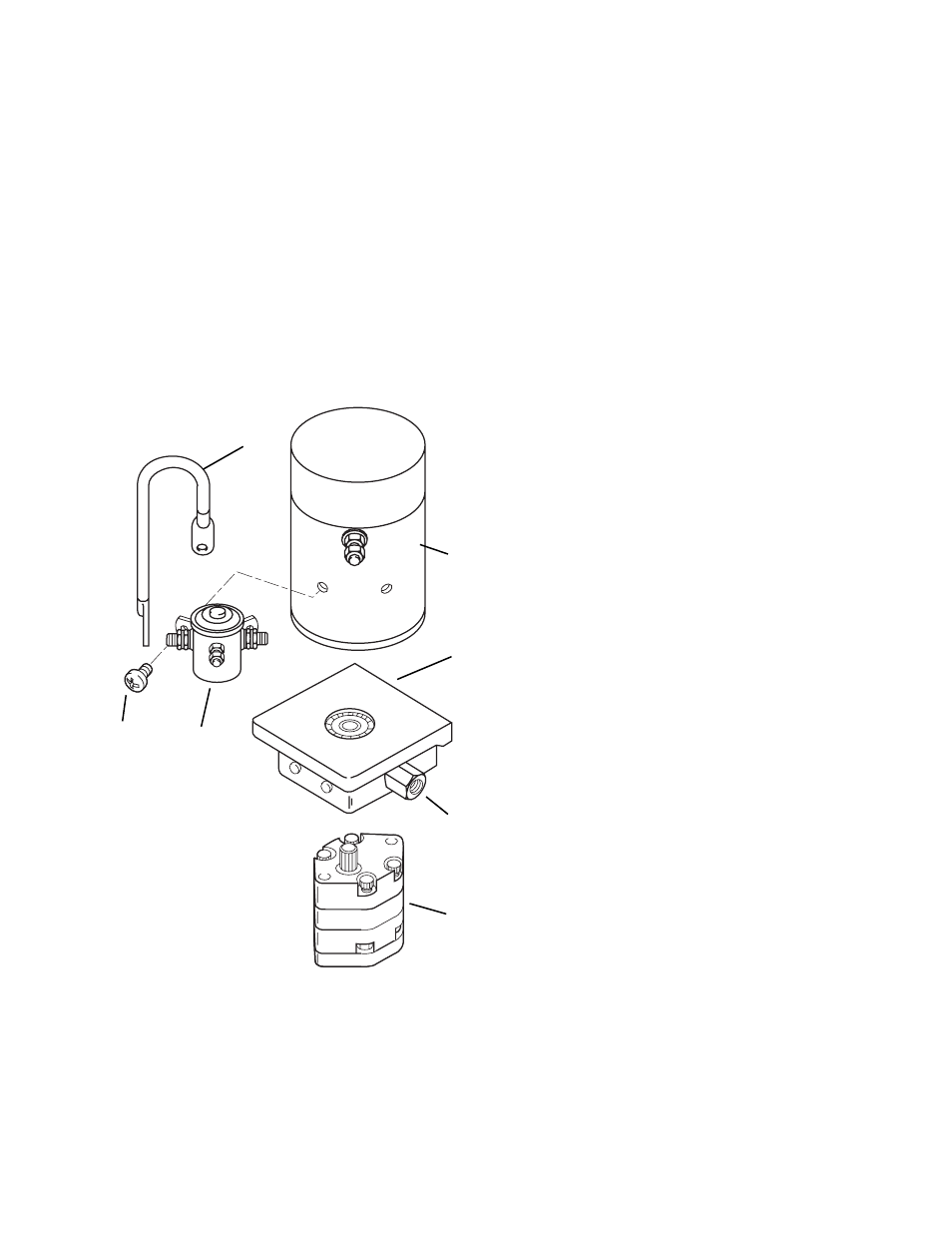

1.
Motor
2.
End Head Assembly
3.
Pump
4.
Solenoid
5.
Check Valve
6.
Taptite Screw, 1/4-20 x 1/4, Torx hd
7.
Terminal Cable
Fig. 10.69 Steering and Emergency Hydraulic Pump
(S/N 7P0014 thru 9B0499)
1
2
3
4
5
6
7
PA0572
