BNC 1201 - 6 1/2 Digit Digital Multimeter User Manual

Page 98

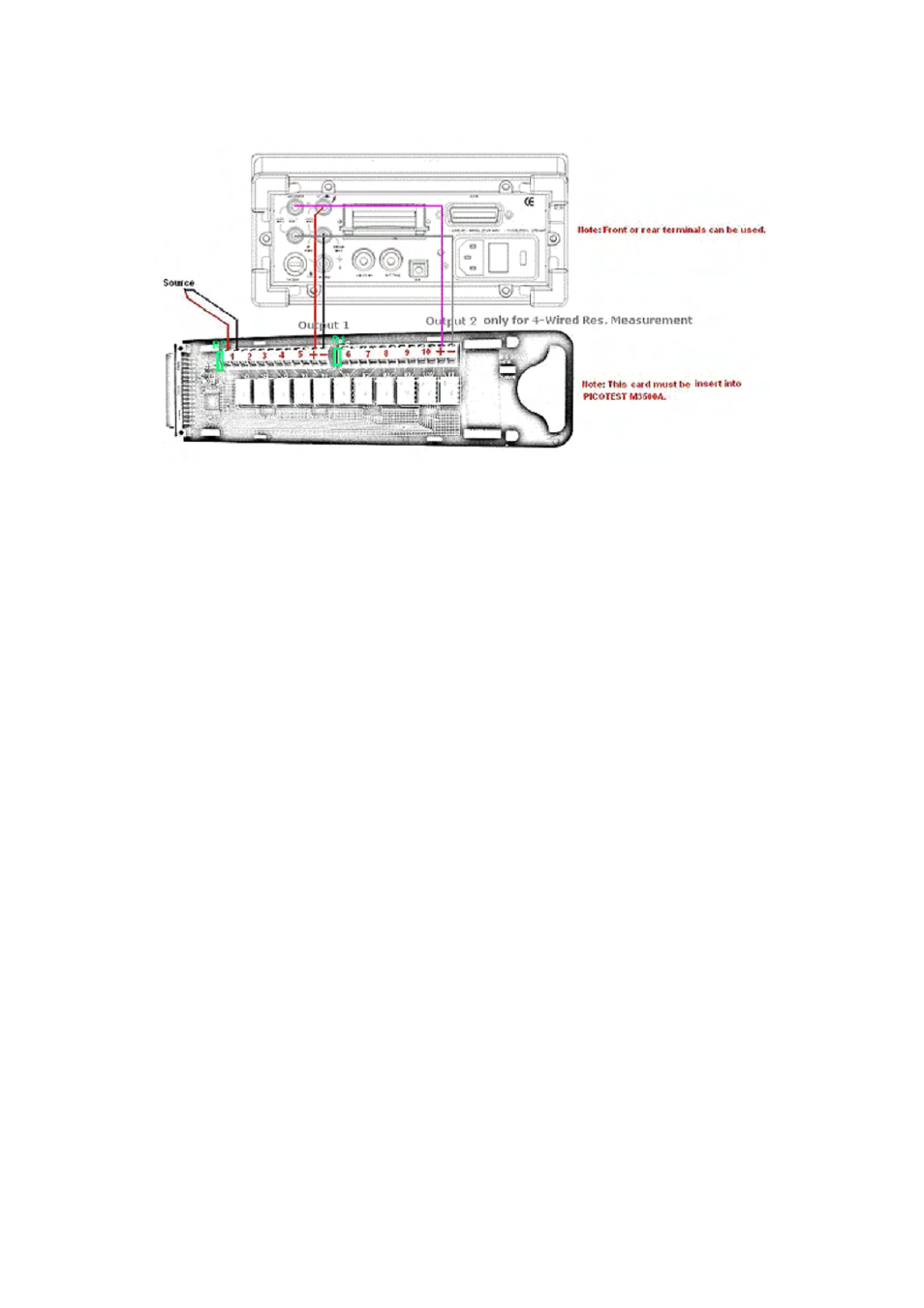

※ Note: The output 2 is only for 4-wired resistance measurement.

Please refer to the above picture for more connection information. When

you use 4-wired resistance measurement with scanner card, please note

that the channel 1 is relative to the channel 6, channel 2 to channel 7 and

so on.

※ Note: Setting range of scanner card is only limited on DCV, DCI, ACV,

ACI and Resistance functions. As to the current measurements, users

can install current shunts on the circuit board

and

to allow indirect

AC and DC current measurements to be made through channels 1 and 6

only.

Remark 1: In the default situation, current shunts are not installed in

the scanner card.

Remark 2: When the current shunts are installed the channel 1 and

channel 6 will be limited to the current measurement unless users

release the shunts of the

and

※ Note: The Information regarding the Limitation of Input Signals in
Scanner Card is in the following statement.

10 Channels: 10 channels of 2-pole relay input. All channels configurable to
4-pole.
CAPABILITIES: Multiplex one of ten 2-pole or one of five 4-pole signals into
DMM.

INPUTS
Maximum Signal Level:
