locate “TRIG” option. Press ENTER to select it. Then again find “DELAY”
option using ◁ and ▷ buttons. Press ENTER to select it. Then use ◁
and ▷ buttons to move through the digits and △ and ▽ buttons to set
the desired delay time (between 0 to 3600 second). The locations of the

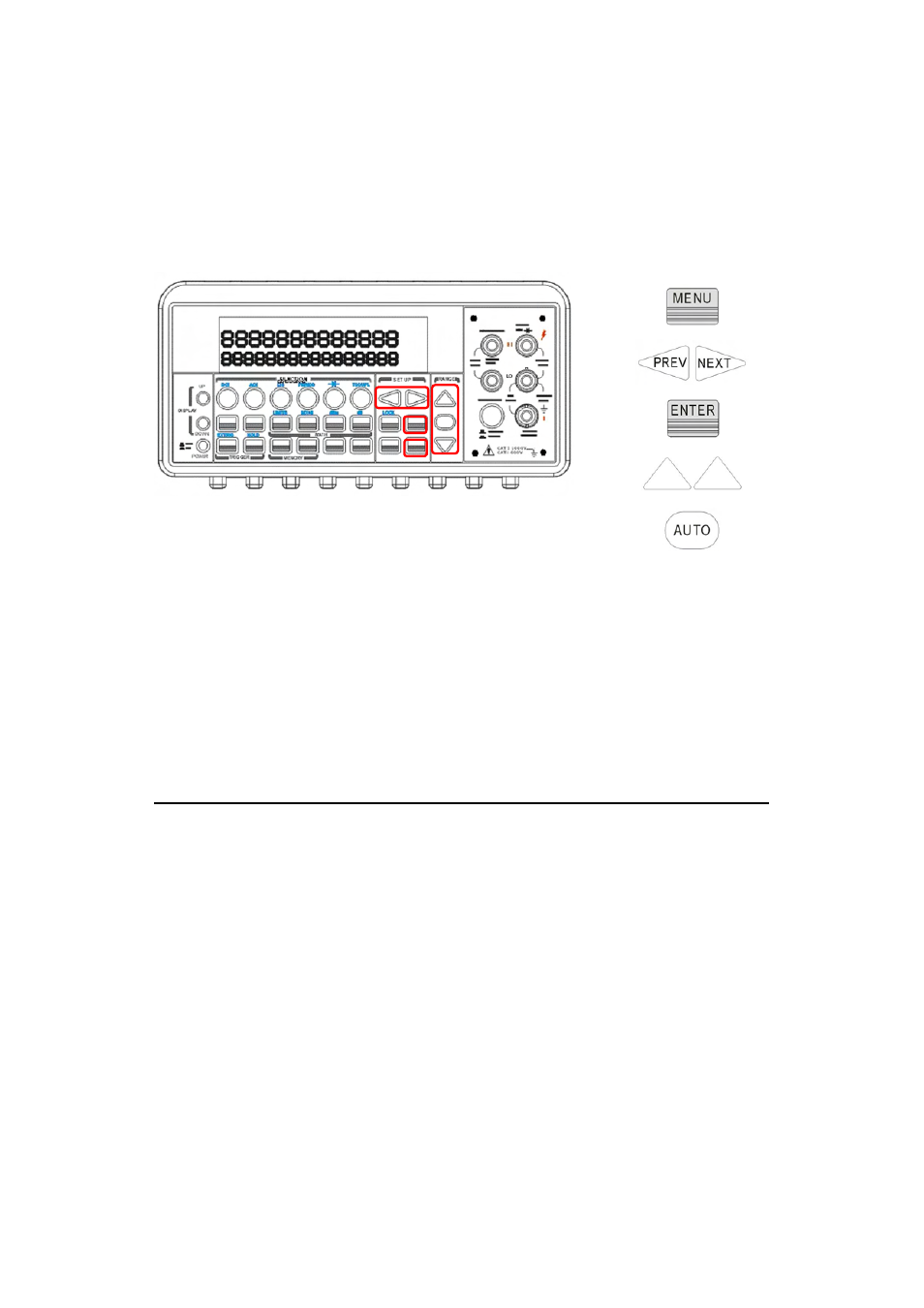

buttons are shown with red rectangle frames in Figure 4-13.
Figure 4-13
Remote Interface Operation
You can also use the remote interface operations from your PC terminal
to set the trigger delay. To select a delay time, use the following
command or set the trigger delay to be automatic:
TRIGger:DELay {
or
TRIGger:DELay:AUTO {OFF|ON}
4.3 Math Operations
This section will introduce the mathematical operations in 1201. There
are eight math operations: RITIO, %, Min/Max, NULL, Limits, MX+B,
dB and dBm testing. They either store data for later use or perform
mathematical operations on the readings. Note that these math
operations are available to all measurement functions except continuity
and diode testing.
※ Note: The “MATH” anunnciator on the display indicates the state of a
mathematical feature, excluding Ratio, and will be lit by enabling
whichever math feature. Also, press the same buttons again for the
enabled math feature will disable the same math feature.
