2 % (percent) – BNC 1201 - 6 1/2 Digit Digital Multimeter User Manual

Page 79

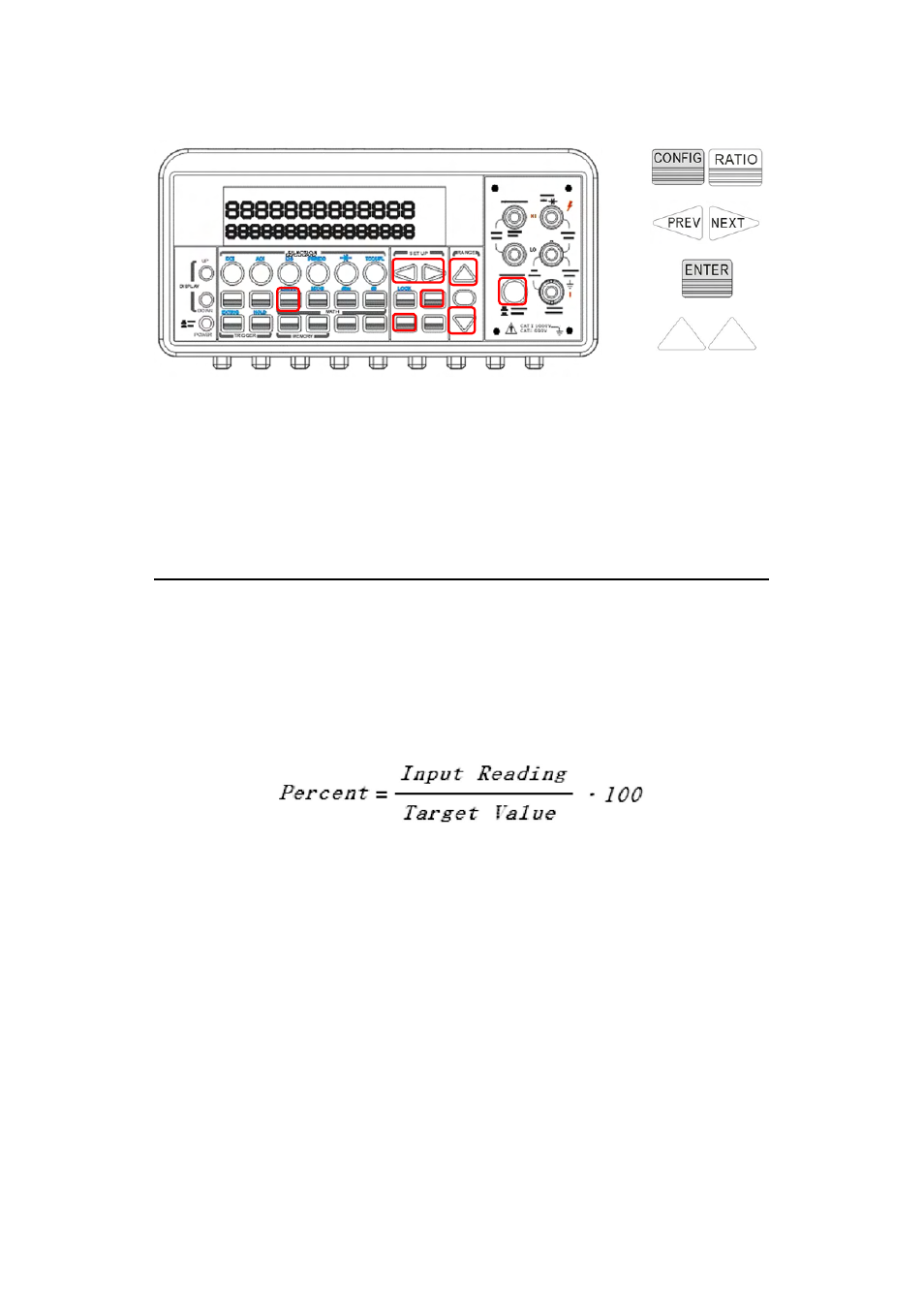

Figure 4-14

Remote Interface Operation

Use the following command to make a RATIO measurement.

CONFigure:VOLTage:DC:RATio {|MIN|MAX|DEF},{|MIN|MAX|DEF}

4.3.2 % (Percent)

Definition

This mathematical function calculates the ratio of a measurement

reading to a specified target value as the form of percentage. The

calculation formula is shown below:

The specified target value is store in a volatile memory and will be

cleared after the meter has been turned off or a remote interface reset.

How to use % (Percent) function

There are two ways to make a percent measurement: Through the front

panel operation or through the remote interface operation.

Front Panel Operation

To specify a target value, user needs to configure Percent function by

pressing CONFIG + %, then use ◁ and ▷ to move through the digits
