There are two ways to set the resolution. The locations of the buttons are

shown with red rectangle frames in Figure 4-3.

First select your desired measurement function by pressing one of the

function buttons located on the first row of your meter's front panel.

Press DIGITS button to select your desired resolution for your

measurement. User can press DIGITS button several times to see

how the resolution setting changes from 4.5, 5.5 to 6.5.

※ Note: When using Method A to set the resolution, your options are 4.5

(slow), 5.5 (slow) and 6.5 (fast).

Press CONFIG and then select a function as you wish from DCV, DCI

(SHIFT +DCV), Ω2, Ω4 (SHIFT + Ω2), FREQ and PERIOD (SHIFT +

FREQ).

Press ENTER on RESOLUTION submenu. If it is not shown on the

display, use ◁ and ▷ to locate it.

Use ◁ and ▷ to find your desired resolution. Press ENTER on your

choice.

※ Note: The resolution of AC measurements is fixed at 6.5 digit.

※ Note: The options for frequency and period measurements are 4.5

(slow), 5.5 (slow) and 6.5 (slow).

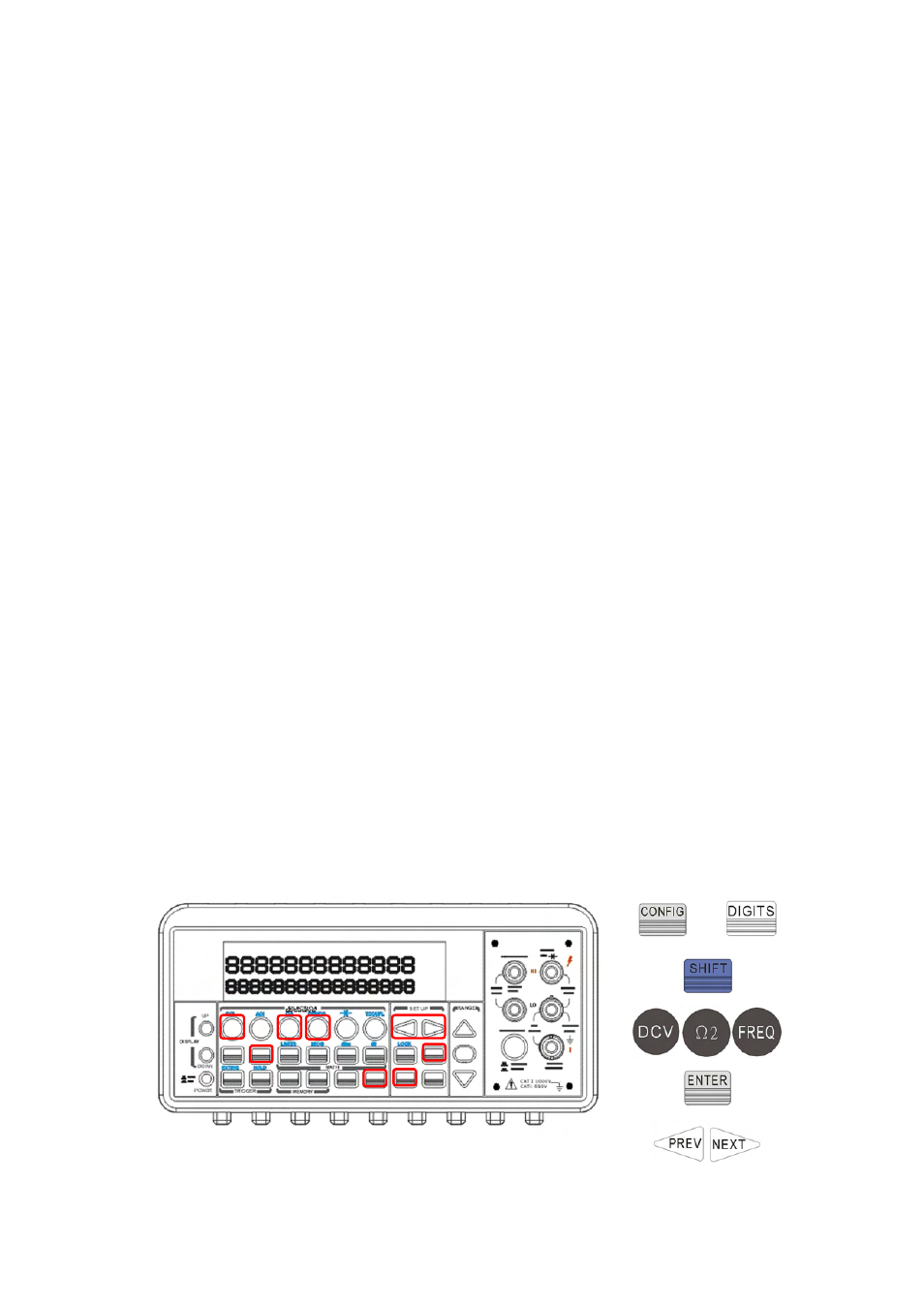

Figure 4-3
