LN-9400-00.9 91
DynaFlow TM User Manual - Appendix
ADDENDUM B:

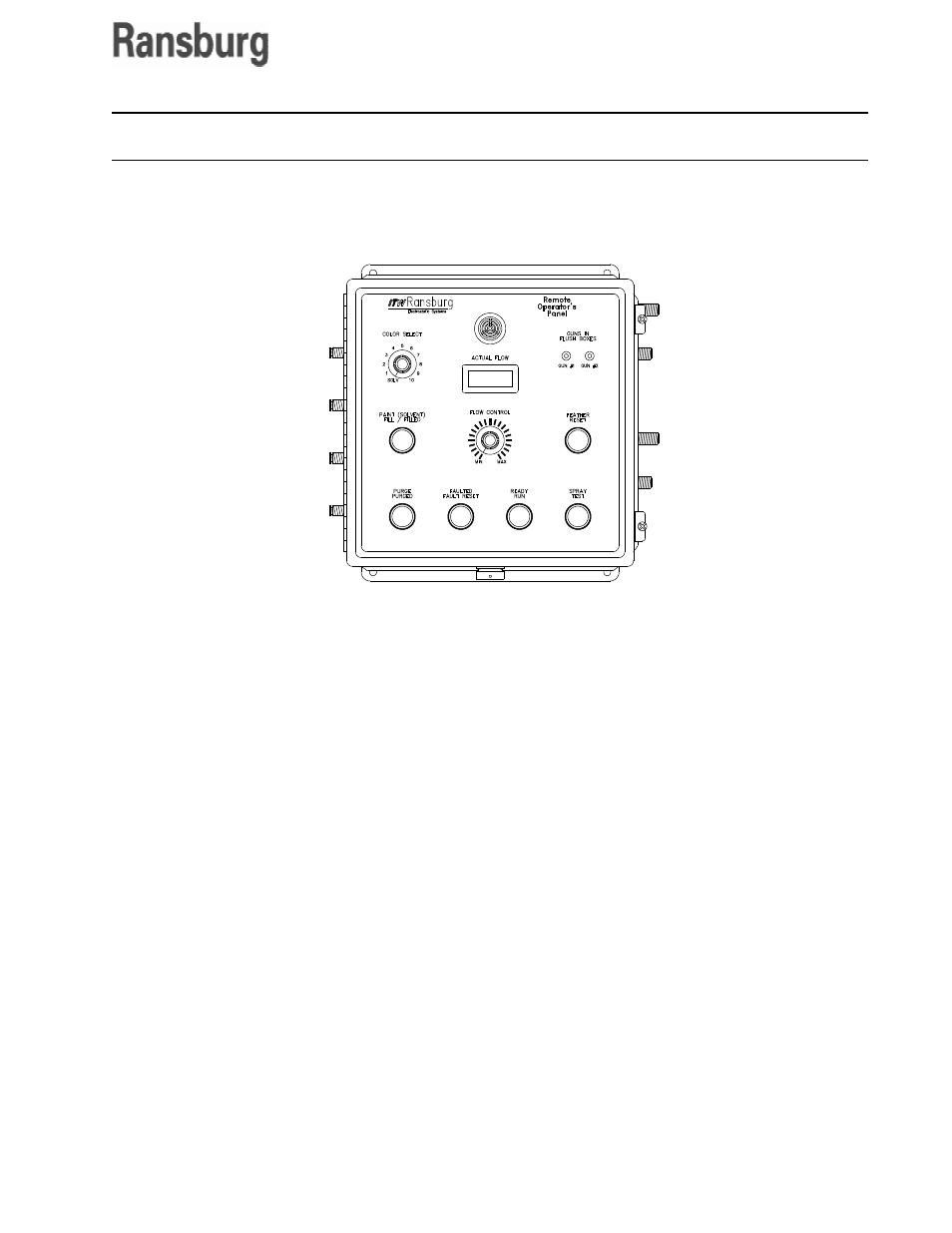

Remote Operator's Panel
If the Model A12233 control console and Model A12182 Interface Panel is used, the optional Remote
Operator Panel (P/N: A11095) can be used. this Remote Operator's Panel (shown above) operates
in the following manner:
Color Select - This is an eleven position selector switch that allows the operator to select the next
color to be loaded. If the most counter-clockwise position is selected (Solv) and the Paint (Solvent)
Fill button is pushed, the normal load sequence occurs and solvent is loaded into the fluid sytem as
if it was a color.
Paint (Solvent) Fill/Filled - This is a green illuminated push-button. When pushed, the paint load
sequence runs (as programmed from the "Load" user interface screen). The green indicator lamp
flashes as the sequence is occurring and stays lit solid when the sequence has completed, indicating
to the operator that the system is ready.
If there is already a color loaded (i.e., one of the color valve outputs is already on) when this button is
pushed, the system will execute a flush sequence, followed by a load sequence.
Purge/Purged - This is an amber illuminated push-button. When pushed, a purge sequence is initi-
ated (as programmed from the "Purge" user interface screen). While the purge sequence is occurring,
this indicator lamp flashes. It remains on solid when the purge sequence is complete, indicating to the
operator that the purge is complete. This indicator will be turned off if a "Paint (Solvent) Fill" sequence
has been initiated or a color is loaded.
