Rockwell Automation 1785-Lxxx Enhanced and Ethernet PLC-5 Programmable Controllers User Manual
Page 194

Publication 1785-UM012D-EN-P - July 2005
11-20 Communicating with Devices on an Ethernet Network
The second list contains Application Level Statistics. These pages
present information about the Client Server Protocol (CSP) and the
Control Information Protocol (CIP), such as:
– memory usage
– inbound/outbound connection information
– packet processing
Details of the first three of these pages are described in the following
table:
The remainder of the Application Level Statistics pages present detailed
information on CIP protocol counters. This information may be used in
the event you must call Rockwell Automation Technical Support for
troubleshooting.
7. On the bottom of your current page, click on
Memory Map.

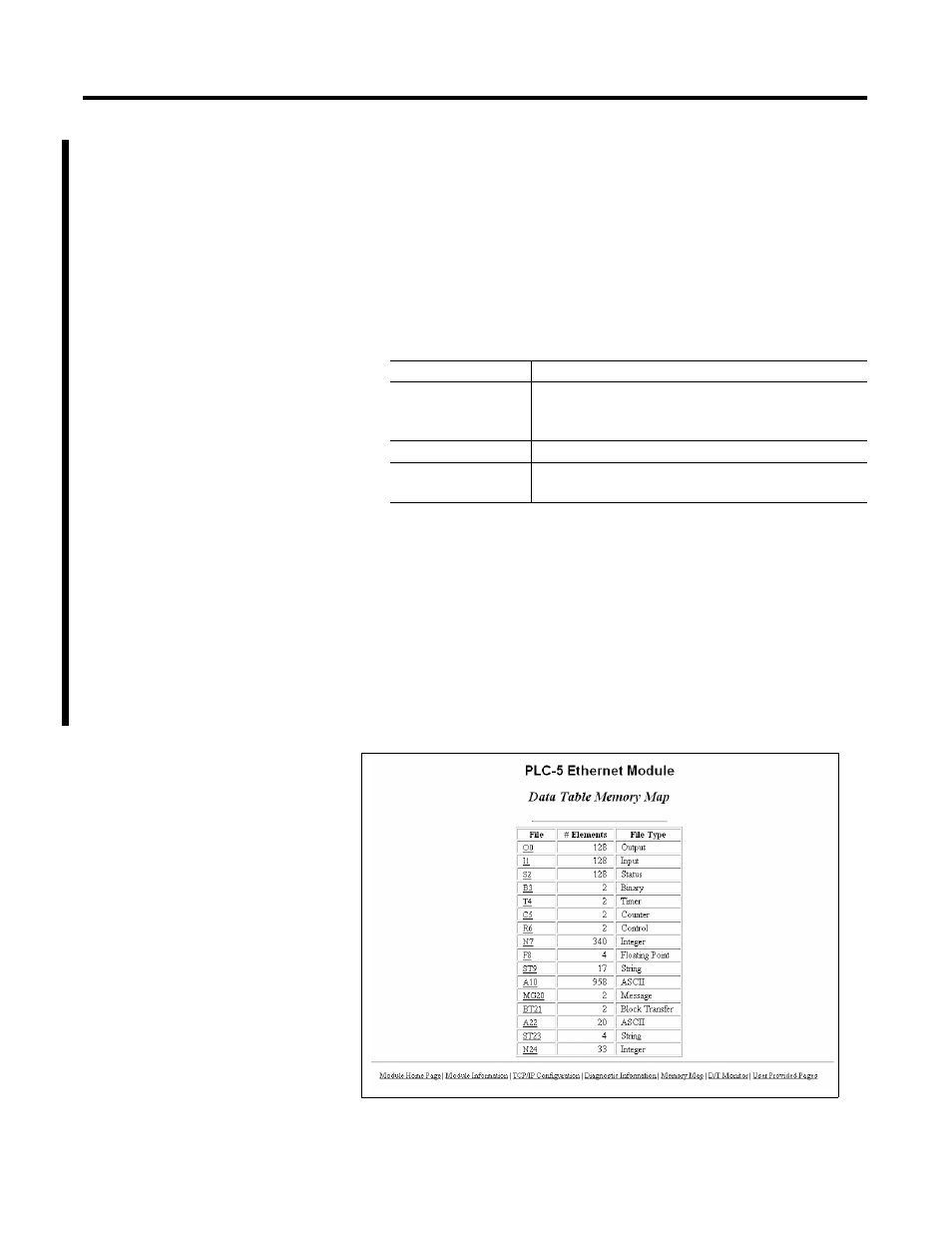

The Data Table Memory Map page appears and displays a table that lists
the data table files and their type and size in elements of the connected
PLC-5 as shown in the following example:
This Page
Indicates
Application Memory
Statistics
information on the number of connections available and
the number currently in use for inbound/outbound
connections
CSP Session Table
inbound/outbound information for the CSP connection
Encapsulation Protocol
Session Table
inbound/outbound connection information for the CIP
connections
