If the controller is not communicating you may need to set the target ID of the controller in Cscape or on
the unit. The Target ID allows directing communications to a particular unit when multiple units are
connected via a CsCAN network. Units without CsCAN network ports respond to any network ID and do
not require the ID to be configured.

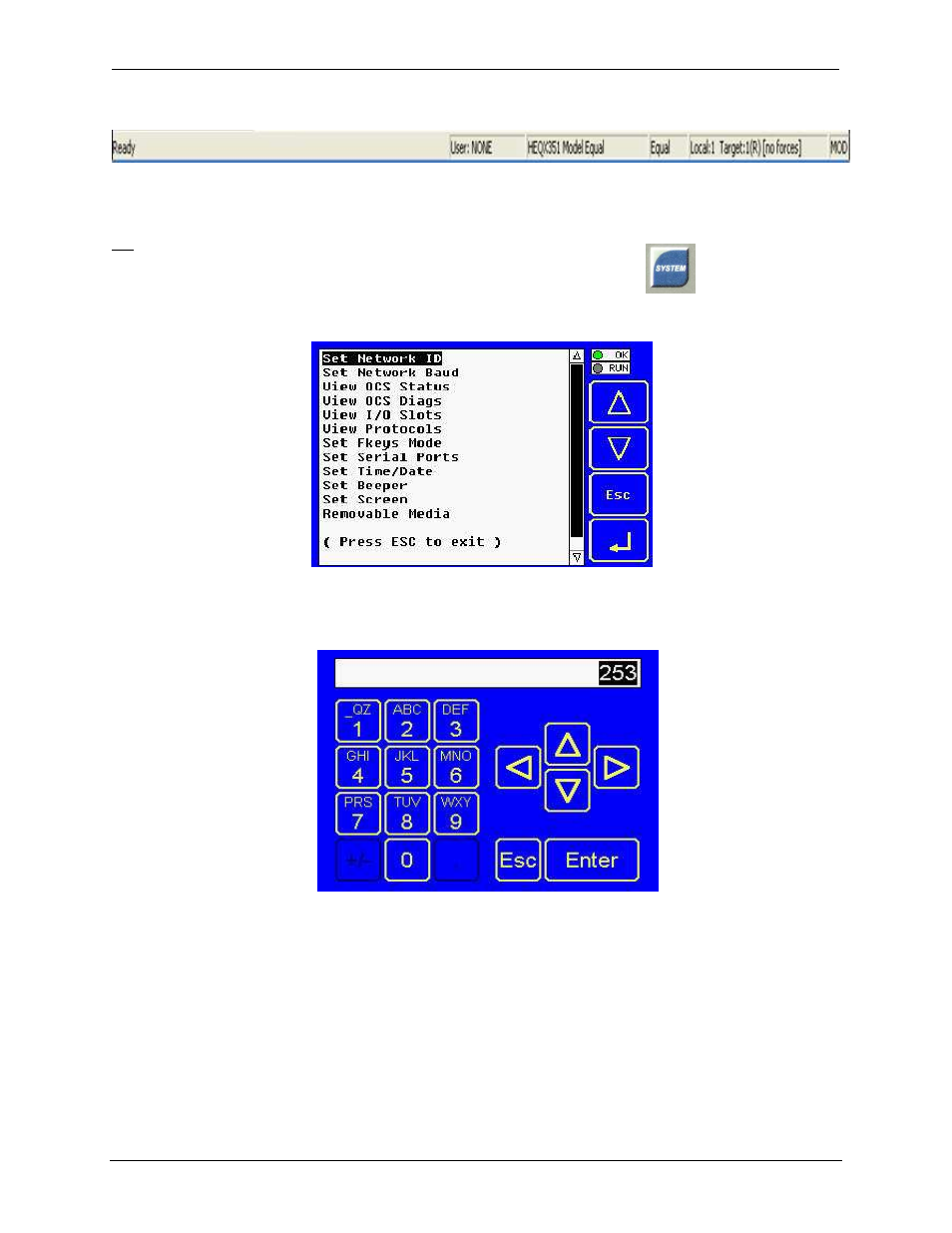

To check or change the ID on the QX351 OCS, press the system menu key.
The first item in the menu is Set Network ID. Pressing Enter allows you to view or modify the ID of the
unit.
To change the Target ID of Cscape, use the Controller | Set Target Network ID dialog.
13.3.2 Communication via MJ1/MJ2 Serial Port:
Start by configuring Cscape to use the correct communications port. This can be done using the Tools |
Editor Options | Communication Port dialog in Cscape.
Next connect the PC serial port to the port labeled MJ1/MJ2 on the QX. The easiest way to interface
between the serial port and the units MJ1 port would be to use an HE500CBL300A. The HE500CBL300A
is sold separately.
If communications are successful, the target indicator should show the mode of the controller Target:
yy(R) as shown in the status section above.
