MAN0892-03-EN CH.10
February 25, 2010 Page 45 of 109 #1039
Network ID:
1 to 253 = This node’s CsCAN Network ID; must be
unique on network

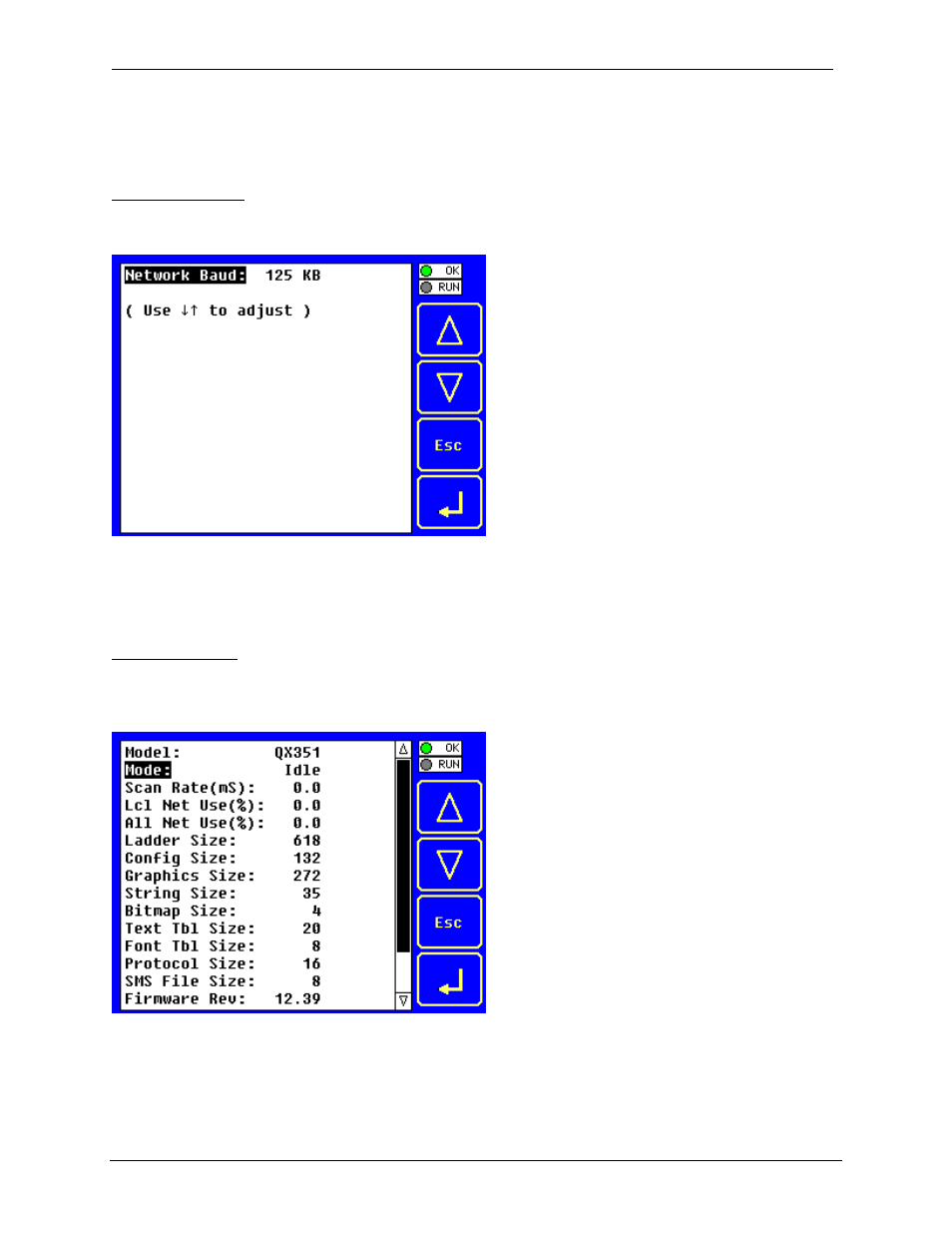

Set Network Baud
This Sub-Menu displays just one System Setting and it is editable.
Network Baud:
125 KB = 125 KBaud CAN network
250 KB = 250 KBaud CAN network
500 KB = 500 KBaud CAN network
1 MB = 1 MBaud CAN network
View OCS Status
The View OCS Status Sub-Menu displays up to 17 System Settings. Only the Mode System Setting is
editable.
Model: QXx51 x - indicates the size of the display
x – 3 = 5.7”; 4 = 8”; 5 = 10”; 6 = 12”
Mode:
Idle = QX is in Idle mode
DoIo = QX is in Do I/O mode
