MAN0892-03-EN CH.9
February 25, 2010 Page 41 of 109 #1039
4. The following screen appears.

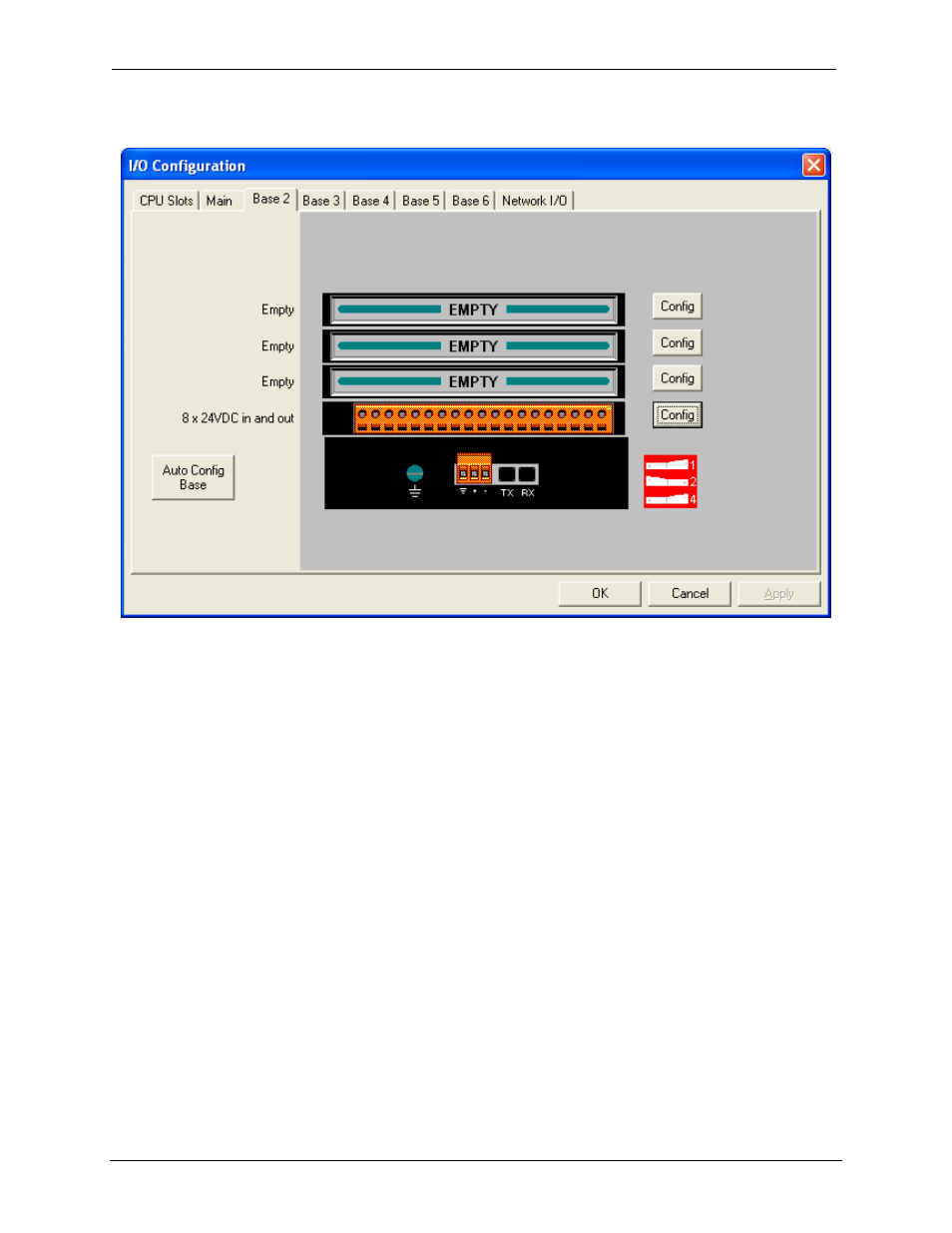

Figure 9.6: Base 2 with an I/O Module Selected
The description and properties of the I/O module are provided. If satisfied with the selections, press OK.
Note: If a module already occupies a slot and a different module is desired, right-click on the slot and
press Replace. To leave a slot empty, right-click on the slot and press Delete. By right-clicking on a slot,
its configuration can be copied into another slot on the same base (or a different base) and pasted into a
new slot.
5.
Click on the Config button of the I/O module that is placed in the slot, the Module Configuration
Screen appears. Two tabs are available for selection:
